PANEL DESCRIPTION
2001 NEW
1
q INTERNAL SPEAKER
You can listen to received audio.
w VOLUME CONTROL [VOLUME] (p. 7)
Rotate to adjust the audio output level.
e SELECTOR DIAL [SELECT]
Rotate to adjust the squelch threshold level or se-
lect the operating channel. (Depending on the pre-
programmed setting.)
r POWER INDICATOR [POWER]
➥ Lights green on ‘A’ module’s indicator while the
repeater power is ON.
When a channel extension module is installed:
➥ Lights green on the selected module indicator
(‘A’ or ‘B’) while the repeater power is ON.
➥ Lights orange on the un-selected module indi-
cator (‘A’ or ‘B’) while the repeater power is ON.
t TRANSMIT INDICATOR [TX]
Lights red while transmitting.
y BUSY INDICATOR [BUSY]
Lights green while receiving a signal or while the
noise squelch is open.
About [PWR], [TX] and [BUSY] indicators:
‘A’ and ‘B’ modules both have these. ‘A’ module’s
indicators correspond to the original module, and
‘B’ module’s indicators correspond to the extended
module.
u
MICROPHONE CONNECTOR [MIC]
This 8-pin modular jack accepts the optional micro-
phone.
KEEP the [MIC] connector cover over the con-
nector when the optional microphone is not con-
nected.
q +8 V DC output (Maximum 15 mA)
w Output port for PC programming
e No Connection
r M PTT (Input port for TX control)
t Microphone ground
y Microphone input
u Ground
i Input port for PC programming
i POWER SWITCH [POWER]
➥ Push to turn ON the repeater power.
➥ Hold down for 3 seconds to turn OFF the re-
peater power.
When a channel extension module is installed:
While the repeater power is ON, push to select
the desired module to operate the repeater as the
base station transceiver.
•Thepowerindicator of the selectedmodule lights
green.
o DEALER-PROGRAMMABLE KEYS
Desired functions can be programmed for each key
by your dealer.
Ask your dealer for details.
•Becausethesekeysareprogrammable,theirfunctions
are unique to each unit.

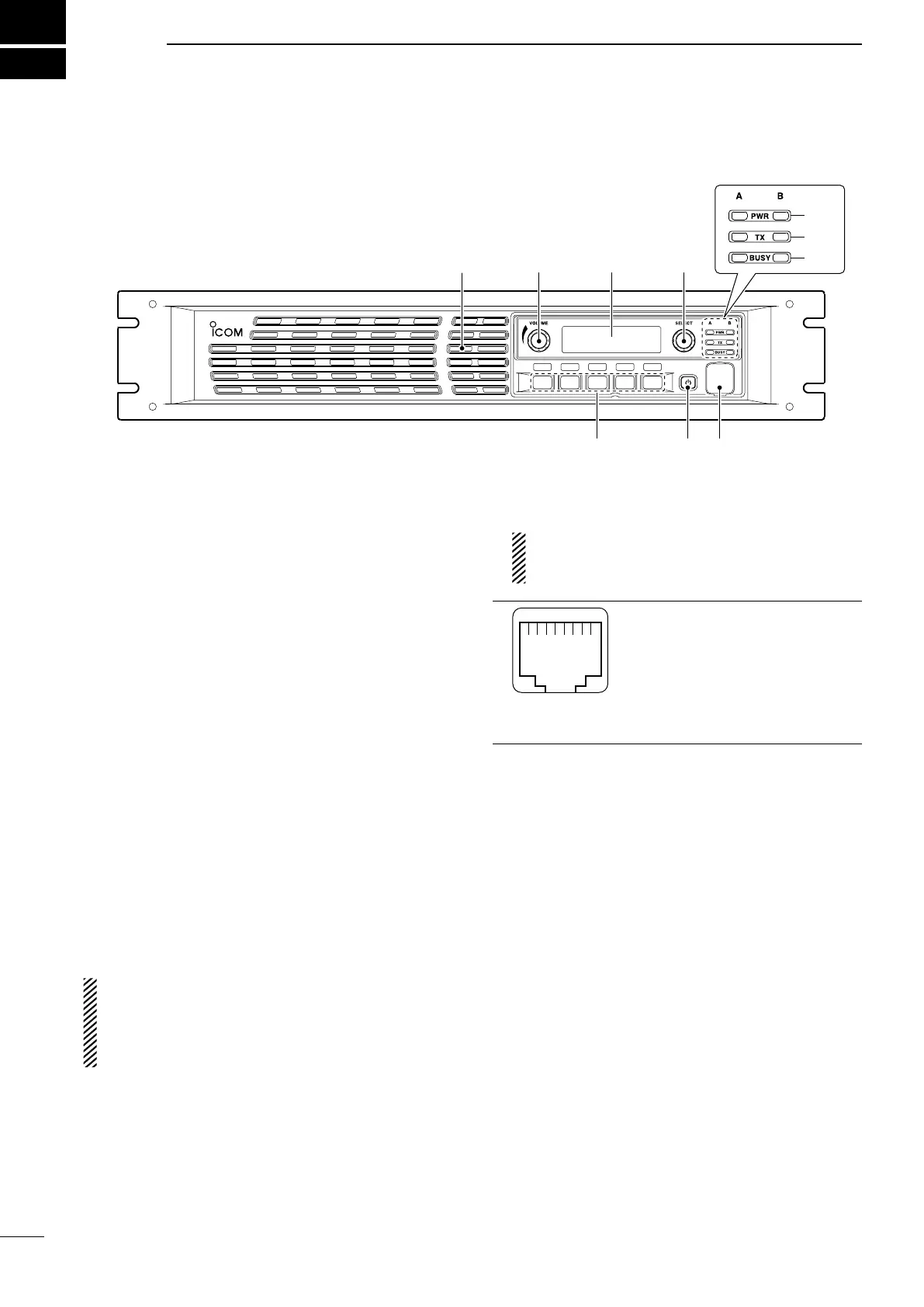

■ Front panel
