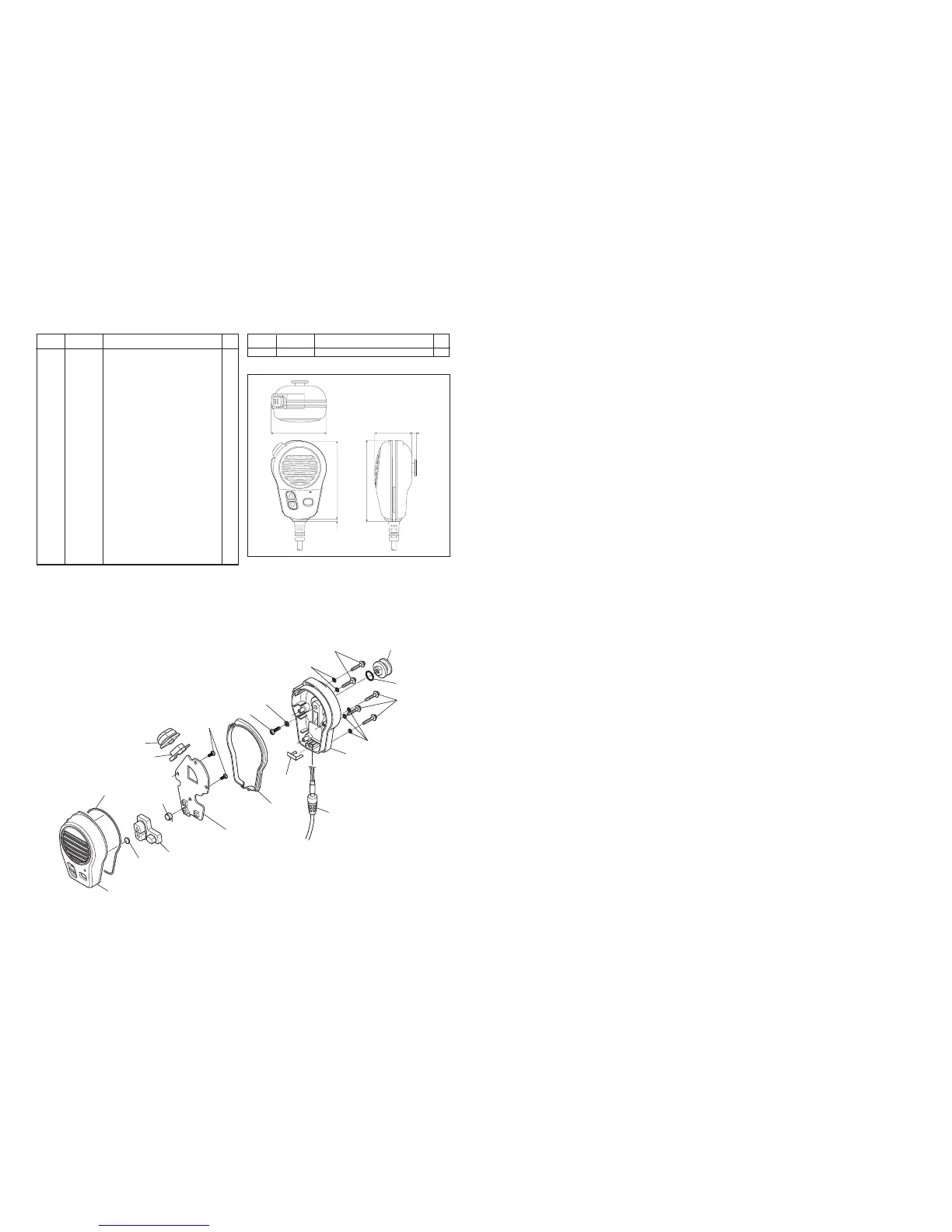

Icom IC-M302 Service Manual

MP1
(
C
)
MP10
(
C
)
MP3
(
C
)
MP7
(
C
)
MP6
(
C
)
MP9
(
C
)
MP2
(
C
)
W1
(
C
)
MC1
(M)
MP5
(C)
MP4
(C)
MP19
(C)
MP16
(C)
MAIN UNIT
MP15
(C)
MP14
(C)
MP13
(C)
MP13
(C)
MP15
(C)
MP8
(C)
MP17
(C)
HM–141
UNIT abbreviations (C): CHASSIS PARTS, (M): MAIN UNIT
7 - 3
W1 8900012211 Cable OPC-1249A [Black] 1
8900012221 Cable OPC-1250A [White] 1
8900012501 Cable OPC-1285A [Gray] 1
MP1 8210020110 2715 front panel [Black] 1
8210020130 2715 front panel (A) [White] 1
8210020370 2715 front panel (B) [Gray] 1
MP2 8210020120 2715 rear panel [Black] 1
8210020610 2715 rear panel (A) [White] 1
8210020380 2715 rear panel (B) [Gray] 1
MP3 8930060910 2715 key [Black],[White] 1
8930061150 2715 key (A) [Gray] 1
MP4 8930060920 2715 PTT rubber [Black],[White] 1
8930061160 2715 PTT rubber (A) [Gray] 1
MP5 8930061970 2715 A-PTT holder 1
MP6 8930060940 2715 rubber [Black],[White] 1
8930061810 2715 rubber (A) [Gray] 1
MP7 8930060930 2715 main seal 1
MP8 8610011600 2715 hanger knob 1
MP9 8930060950 2715 bush plate 1
MP10 9830060990 2715 MIC sheet 1
MP13 8930060960 O-ring (AY) 5
MP14 8930060970 O-ring (AZ) 1
MP15 8820001260 2715 screw 2.6x18 SUS 5
MP16 8810010230 screw BiH M4x8 ZK 1
MP17 8850002000 Spring washer M4 SUS 1
MP19 8810010240 Screw PH B0 2x6 NI 2
REF. NO. ORDER NO. DESCRIPTION QTY.
[CHASSIS PARTS]
REF. NO. ORDER NO. DESCRIPTION QTY.
MC1 7700002640 Microphone KUC3523-040245 1
[MAIN UNIT]
Screw abbreviations PH, B0,: Self-tapping
BiH: Bind head
NI: Nickel
ZK: Black
SUS: Stainles
62.5 (2
13
⁄32)
3 (
1
⁄8)
42 (1
21
⁄32)
5.5 (
7
⁄32)
88 (3
13
⁄32)
92.1 (3
5
⁄8)
Unit: mm (inch)
