BATTERY CHARGING
New2001
■ Optional battery chargers

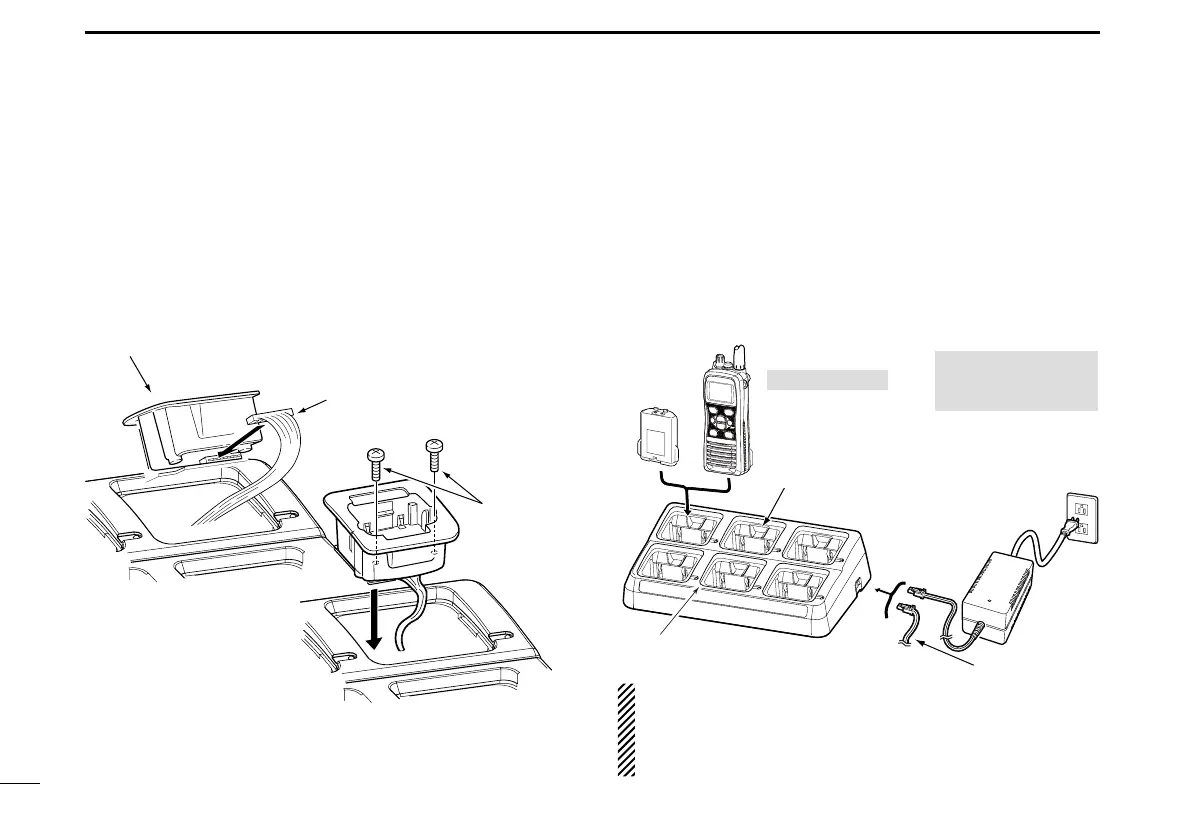

D AD-129 installation
Connect the 8-pin connector of the each charger slot to q
the AD-129 desktop charger adapter’s plug.
Install the adapter into the each charger slot in the direc- w
tion of the arrow, then use the two supplied screws to se-
cure the adapter to the charger.
D Rapid charging with the BC-197+BC-157S or
OPC-656
The optional BC-197 with the BC-157S will simultaneously
charge up to 6 Li-ion battery packs. The following items are ad-
ditionally required. (Charging time: approximately 2.5 hours)
• Six AD-129 charger adapters
• An AC adapter (BC-157S) or the DC power cable (OPC-656)
Desktop charger adapter
8-pin connector
Supplied
screws
Battery
pack
The charger adapters
are installed in each slot.
Transceiver
Tu rn OFF power
(An AC adapter is
not supplied with
some versions.)
AC adapter
(Connect to a DC power supply: 12 to 16 V/at least 7 A)
Status indicator
(each indicator independently functions)
DC power cable (OPC-656)
OPC-656*
DC power cable
*
NEVER reverse the polarity when connecting the power cable to
a power source. This will ruin the battery charger.
Red line : + Black line : _
NEVER transmit near
the BC-197 or the AC
adapter while charging.

Icom IC-M73 Specifications

General

Purpose	Marine Radio Service
Operating frequency	156.025 - 157.425 MHz
Antenna connector type	FA-S64V
Number of antenna connectors	1
Battery type	BP-254N
Battery low indication	Yes
Product color	Black
Waterproof up to	1 m
Operating temperature (T-T)	-20 - 60 °C
Number of batteries included	1 pc(s)

Weight and Dimensions

Depth	30 mm
Width	52.5 mm
Height	125 mm
Weight	320 g
