AGC
CIRCUIT
(MAIN UNIT)
The AGC
(Auto
Gain Control)
circuit reduces
IF/RF
amplifier
gain
to
keep
the
audio output at a
constant
level. The
receiver
gain
is determined by
the
voltage on the
IF-AGC
line
(Q182
collector)
and
RF-AGC line
(RF unit; Q901
collector).
The 3rd IF
signals
from the 3rd
IF
amplifier
(Q161)
are
detected at
the AM
detector
(Q171).
A portion
of the
detected
signals is
applied
to
the
AGC amplifiers (Q182
and
RF
unit;
Q901)
as
the AGC
control
voltage. The
AM
detector
(Q171)
is used for the
AGC
detector in the
AGC
circuit.
When
receiving
strong
signals, the
detected
voltage
increases
and the
AGC
voltage
decreases via
the AGC
amplifiers
(Q182
and
RF unit;
Q901).
As the AGC
voltage
is
used
for the
bias
voltage of
the IF/RF
amplifiers,
IF/RF
amplifier
gain is
decreased.
4-1-12
NOISE
BLANKER
CIRCUIT
(MAIN
UNIT)
The
noise
blanker circuit
detects
pulse-type
noise,
and
stops IF
amplifier
operation
during
detection.
A
portion
of the 2nd
IF signals
from the
2nd IF
amplifier
for
the
sub-band
(Q421)
is
amplified at the
noise
amplifier
circuit
(Q801,
Q802).
The
amplified signal is
recified at
the
noise detector
circuit
(Q805)
for
conversion into
DC voltage.
The DC
voltage
is
applied
to
the
NB control
circuit
(Q806,
Q807)
to
control the
NB switch
(Q810).
Some DC
voltage
is fed
back to the
noise
amplifier
circuit
(Q801
,
Q802)
via the DC
amplifier
(Q808).
The DC
amplifier
functions as
an AGC
circuit to
reduce
averaged
noise.
Therefore,
the
noise
blanker function
shuts
off pulse-type
noise only.
4-2
PLL
CIRCUITS
4-2-1
GENERAL
1ST/2ND LO
PLL
circuits
(RF/MAIN
units)
provide stable
oscillation
of the
receive LO
frequencies.
The
PLL circuit
consists
of the PLL 1C
(IC501
on the
RF/MAIN units),
charge
pump,
loop
filter and
reference
oscillator
and
employs a
pulse
swallow
counter.
4-2-2
1ST LO
PLL CIRCUIT
(RF
UNIT)
Signals
from the
1ST VCO
unit pass
through the
buffer
amplifier
(Q551)
and are
prescaled in the
PLL 1C
(IC501,
pin
10)
based
on
the divided
ratio
(N-data).
The PLL 1C
detects
the
out-of-step
phase
using the
reference
frequency
and outputs
it from
pin 6. The
output
signal is
passed
through the
charge
pump
(Q521
,
Q522)
and
is
applied to
the loop
filter (R527, C527)
to be
converted
into DC
voltage
as a
PLL
lock voltage.
The PLL
lock
voltage is
applied to
the 1
ST VCO
unit via the VI L
line.
A portion
of the
signal from the
loop
filter (R527, C527)
is
amplified at
the
buffer
amplifier
(Q502)
and is
then applied
to
the
CPU
(LOGIC unit;
IC1) as
the
lock voltage
information
(LVI). The
CPU (pin
6)
outputs a
“TUNE”
signal
based
on the
lock voltage;
the voltage
is
amplified at the
buffer amplifiers
(LOGIC
unit;
Q181, 0182)
and is
then
applied to
the RF
unit
as
the
tunable
bandpass
filter control
signal
(VTUNE).
This signal
(VTUNE)
is used
for the RF
tunable
bandpass
filters to
match
the filter’s
center
frequency
to
the
desired
receive
frequency.
4-2-3
REFERENCE
OSCILLATOR
CIRCUIT
(RF
UNIT)
The
reference
oscillator
circuit (X501,
IC501)
generates a
10.245
MHz reference
frequency
which is stabilized
within
the
temperature
range -10°C
(+14T) to
+50°C
(+122°F).
The reference
frequency is
applied to
the PLL
1C
and also
applied to
the
MAIN
unit as
the
3rd
LO
signal via
the
buffer
amplifier
(0531).
4-2-4
1ST VCO
CIRCUIT
(1ST VCO
UNIT)
The
1ST VCO
circuit contains
three
separate VCO
circuits
depending on
the
receive frequency.
The oscillated
signal at
one
of the
three VCO
circuits is
applied to
the buffer
amplifier
(0601).
The
amplified
signal is applied to
the RF
unit via
the VI O
line and is
then applied to
the 1st
mixer
circuit (RF
unit; IC271,
pin
3
)
as
the 1st LO
signal
after
being
amplified at
the buffer
amplifier (RF unit; 0552).
A portion
of the
signal from the
VI O
terminal (1ST VCO
unit; J601)
is
amplified
at
the
buffer
amplifier
(0551)
and is
then fed
back to
the PLL 1C
(IC501,
pin
10)
as
the
comparison
signal.
•
1st
LO
PLL
circuit (RF
unit)

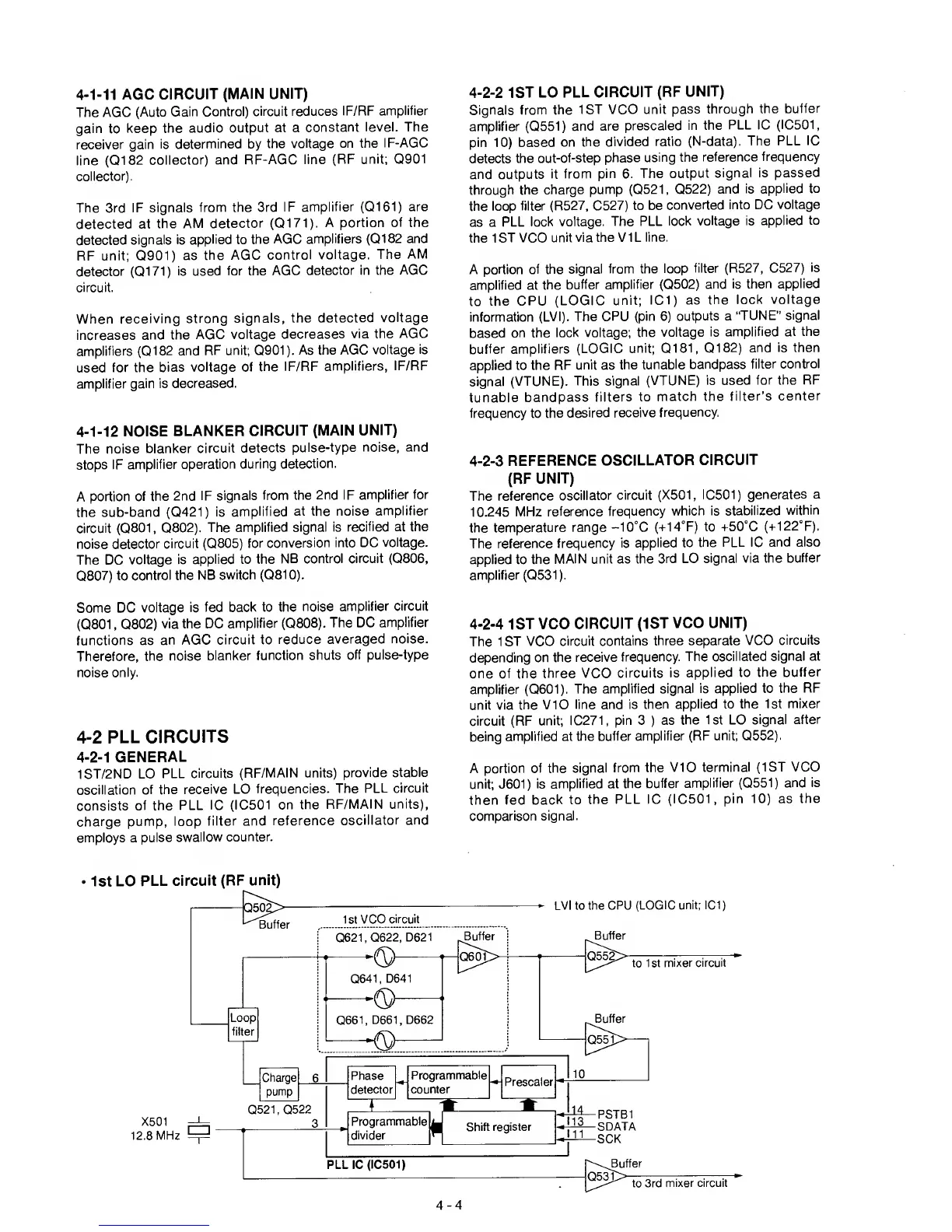

4-4
