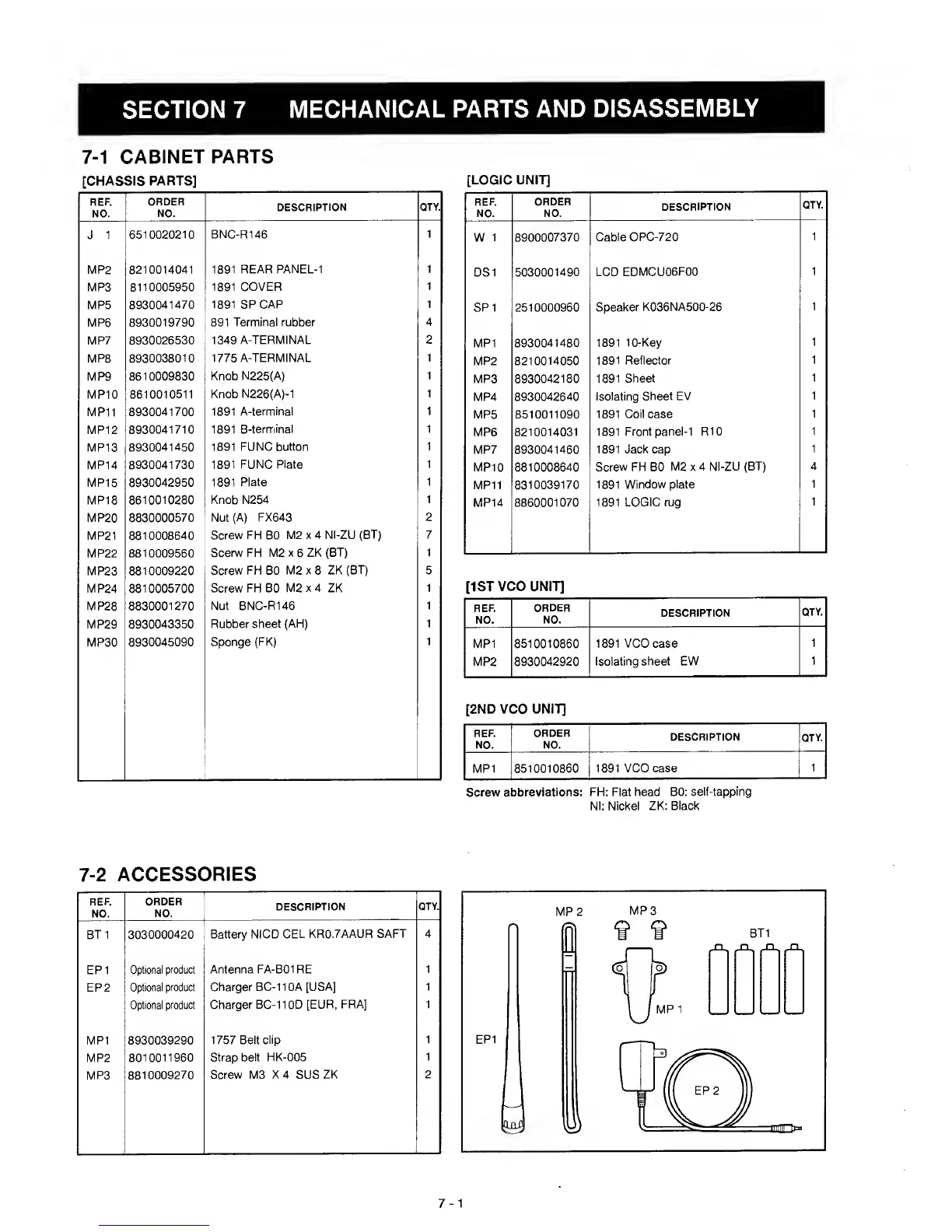

Icom IC-R10 Service Manual

SECTION 7
MECHANICAL
PARTS AND
DISASSEMBLY
7-1
CABINET PARTS
[CHASSIS PARTS]
REF.
NO.
ORDER
NO.
DESCRIPTION QTY.
J
1 6510020210
BNC-R146
1
MP2 8210014041
1891 REAR PANEL-1
1
MP3 8110005950
1891 COVER
1
MP5
8930041470
1891 SP CAP
1
MP6
8930019790 891
Terminal rubber
4
MP7
8930026530
1349 A-TERMINAL
2
MP8 8930038010
1775 A-TERMINAL
1
MP9
8610009830 Knob
N225(A)
1
MP10
8610010511
Knob N226(A)-1
1
MP11
8930041700 1891
A-terminal
1
MP12 8930041710
1891
B-terminal
1
MP13
8930041450 1891
FUNC button 1
MP14
8930041730
1891 FUNC Plate 1
MP15 8930042950
1891 Plate
1
MP18
8610010280
Knob N254
1
MP20 8830000570
Nut (A) FX643
2
MP21
8810008640 Screw
FH BO M2 x
4 NI-ZU (BT) 7
MP22 8810009560
ScerwFH M2 x
6
ZK
(BT) 1
MP23 8810009220
Screw FH BO M2
x 8 ZK (BT) 5
MP24
8810005700
Screw FH BO M2 x
4 ZK 1
MP28
8830001270 Nut
BNC-R146
1
MP29 8930043350
Rubber sheet
(AH)
1
MP30
8930045090
Sponge
(FK)
1
[LOGIC UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
QTY.
W
1 8900007370
Cable OPC-720
1
DS1
5030001490 LCD
EDMCU06FOO
1
SP1 2510000960
Speaker
K036NA500-26
1
MP1
8930041480 1891
10-Key
1
MP2
8210014050
1891 Reflector
1
MP3 8930042180
1891
Sheet
1
MP4
8930042640 Isolating
Sheet EV
1
MP5
8510011090 1891
Coil
case
1
MP6
8210014031 1891
Front panel-1
R10
1
MP7
8930041460
1891 Jack
cap
1
MP10 8810008640
Screw FH BO
M2 x 4 NI-ZU
(BT)
4
MP11 8310039170
1891
Window plate
1
MP14
8860001070
1891 LOGIC rug
1
[1ST VCO UNIT]
REF
NO.
ORDER
NO.
DESCRIPTION
QTY
MP1
8510010860 1891 VCO case
1
MP2
8930042920 Isolating
sheet EW
1
[2ND VCO UNIT]
REF
NO.
I
ORDER
NO.
DESCRIPTION
QTY
MP1
i
8510010860
1891 VCO case
1
Screw
abbreviations; FH:
Flat head BO:
self-tapping
Nl:
Nickel ZK: Black
7-2
ACCESSORIES
REF.
NO.
ORDER
NO.
DESCRIPTION
QTY.
BT1
3030000420
Battery NICD
CEL KR0.7AAUR
SAFT 4
EP1
Optional
product Antenna FA-B01 RE
1
EP2
Optional product
Charger BC-110A
[USA] 1
Optional product
Charger BC-110D
[EUR, FRA] 1
MP1
8930039290 1757 Belt
clip
1
MP2
8010011960
Strap belt HK-005
1
MP3 8810009270
Screw M3
X4
SUS
ZK
2
