Icom IC-R2500 Service Manual

5 - 2
¤

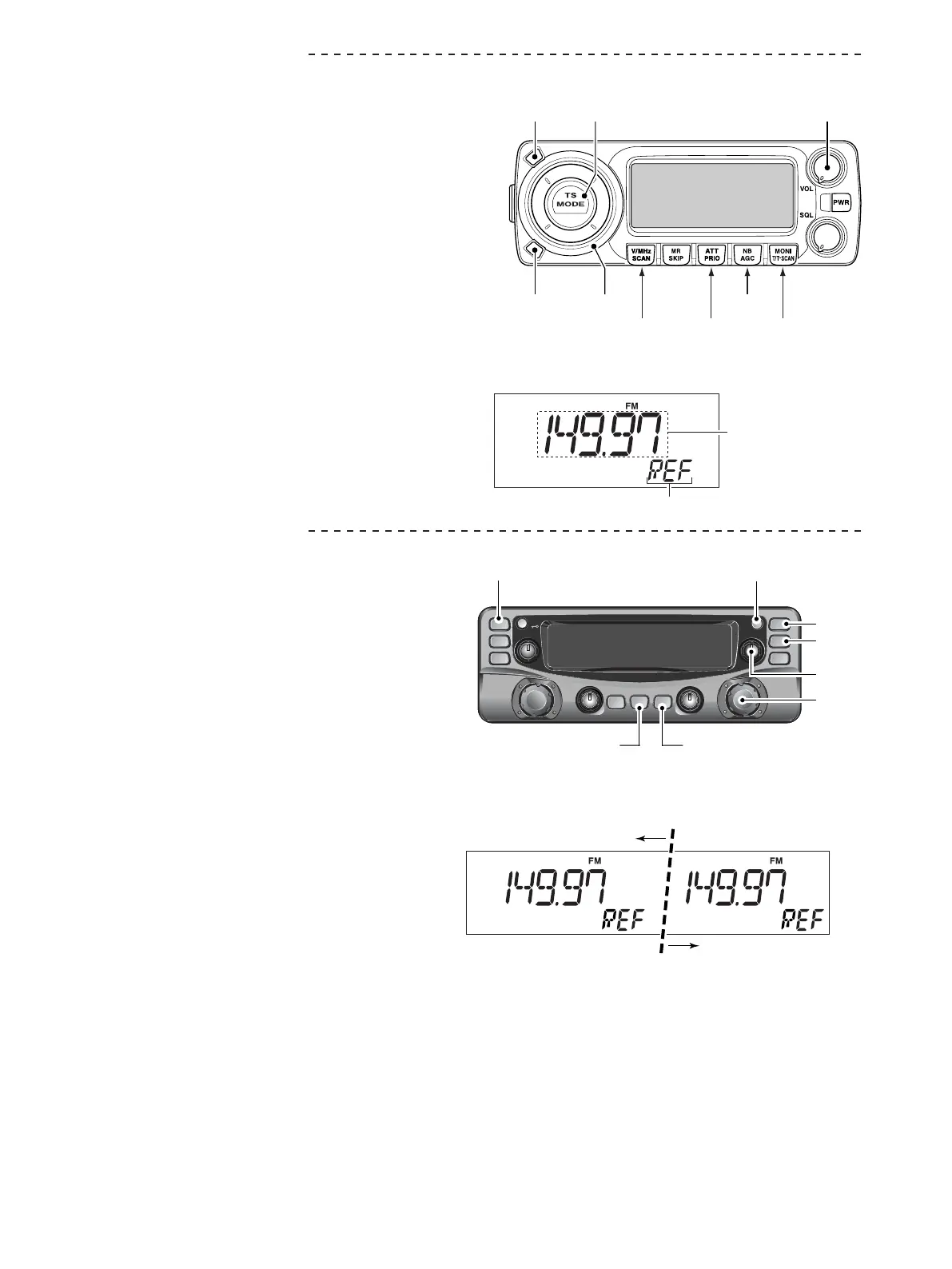

ENTERING ADJUSTMENT MODE
q
Set the direction of the [VOL] (Right) to 12 o'clock
(11–1 o'clock).
w
Push and hold [MAIN•NB]+[MAIN•AGC]+[ATT•PRIO]
+[MODE•SCAN] key, and turn the power switch (MAIN
UNIT) ON.
¤
KEY ASSIGNMENTS FOR THE ADJUSTMENT MODE
• [MAIN•NB] : Selects the next adjustment item.
• [VFO/MR•S.MW] (Right band)
:
Selects the previous adjustment item.
• [DIAL] (Right band)
:
Adjusts the value for the item manually.
• [SET•SKIP] : Adjusts the value for the item automatically.
Stores the set value.
• [ATT•PRIO] : Verify the adjustment value for the item.
• [VOL] (Right band)
: Adjust the audio output level.
¤
ENTERING ADJUSTMENT MODE
q
Set the direction of the [VOL] to 12 o'clock (11–1 o'clock).
w
Push and hold [TS•MODE]+[ATT•PRIO]+[NB•AGC]
+[MONI•T/T-SCAN] key, and turn the power switch (MAIN
UNIT) ON.
¤
KEY ASSIGNMENTS FOR THE ADJUSTMENT MODE
• [SET•LOCK] : Selects the next adjustment item.
• [S.MW•MW] :
Selects the previous adjustment item.
• [DIAL] :
Adjusts the value for the item manually.
• [TS•MODE] : Adjusts the value for the item automatically.
Stores the set value.
• [V/MHz•SCAN] : Verify the adjustment value for the item.
• [VOL] : Adjust the audio output level.
[VOL]
[DIAL]
[MONI•T/T-SCAN]
[NB•AGC]
[ATT•PRIO]
[S.MW•MW]
[SET•LOCK]
[TS•MODE]
[V/MHz•SCAN]
Adjustment item
Adjustment frequency
MAIN
AGC
S.MW
TS
VFO/MR
MHz
MAIN
NB
S.MW
VFO/MR
TS
MHz
VOLVOL
DIALDIAL
SQLSQL
MONI
T/T-SCAN
MODE
SCAN
ATT
PRIO
PWR
SET
SKIP
[VFO/MR]
[DIAL]
[VOL]
[ATT•PRIO]
[MODE•SCAN]
[MAIN•AGC]
[MAIN•NB]
[SET•SKIP]
MAIN-A UNIT adjustment
MAIN-B UNIT adjustment
<FOR IC-PCR1500 ADJUSTMENT>
<FOR IC-PCR2500 ADJUSTMENT>
• CONTROLLER
• DISPLAY EXAMPLE
• CONTROLLER
• DISPLAY EXAMPLE
