Icom IC-R30 Service Manual

SECTION 4 ADJUSTMENT PROCEDURE
4-1
SECTION 4 ADJUSTMENT PROCEDURE
■ REQUIRED EQUIPMENT
EQUIPMENT SPECIFICATIONS EQUIPMENT SPECIFICATIONS
DC power supply Fully charged BP-287 Shunt plug Modified 3.5 mm (⅛ inch) stereo plug.
(See below)
Spectrum analyzer Frequency range: 0.1~2000 MHz
Resolution:
10~30 Hz
Accuracy:
0.1 ppm or better
Standard signal
generator (SSG)
Frequency range:
0.1~3000 MHz
Output level:
−26 dBμ to 94 dBμ
(−133 to −13 dBm)

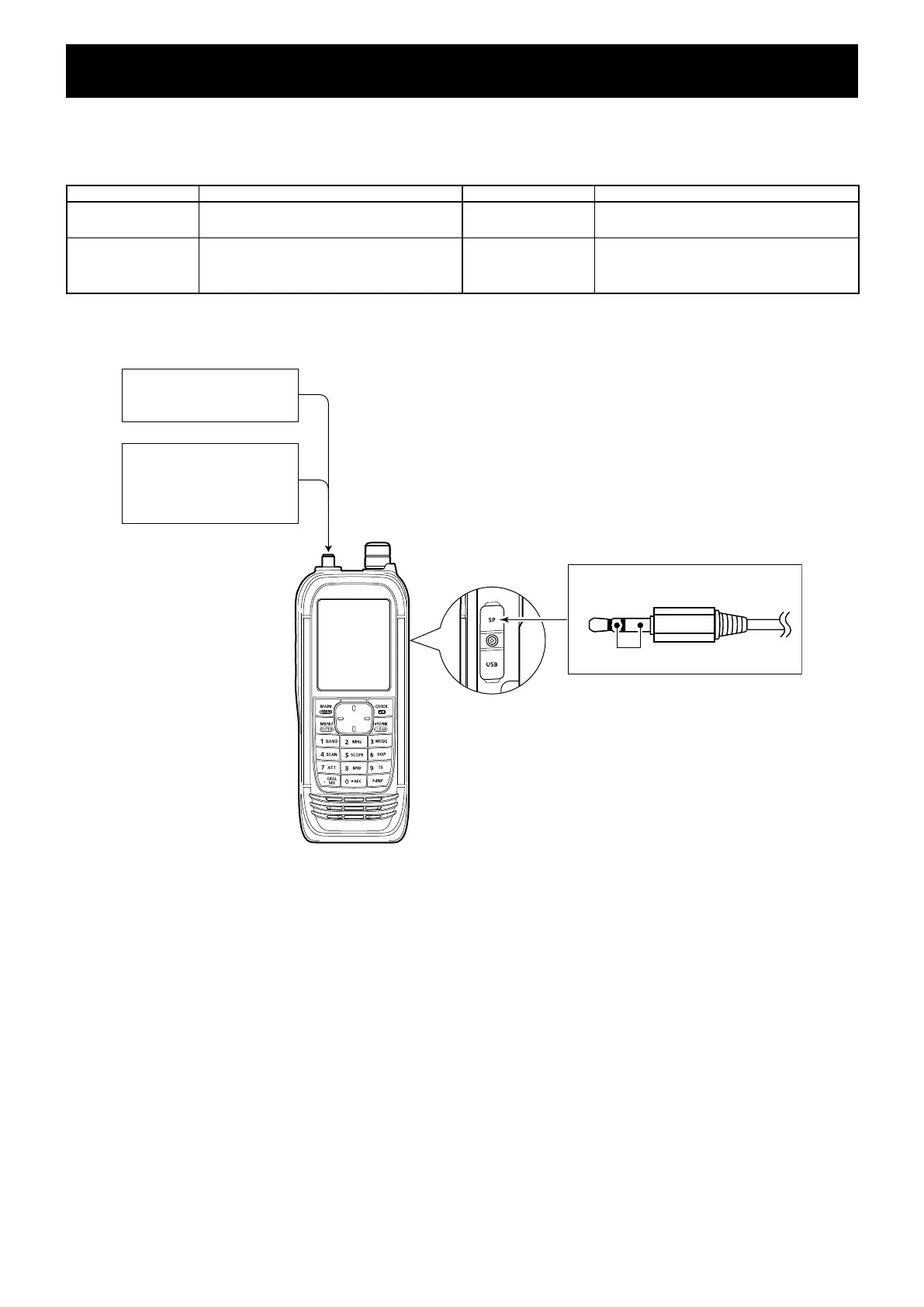

■ CONNECTIONS
Standard Signal Generator
0.1~3000 MHz
–26 dBµ to 94 dBµ
(–133 dBm to –13 dBm)
Spectrum Analyzer
0.1~2000 MHz
• Shunt plug
3-conductor 3.5 (d) mm plug
(Shunt)
4-1 PREPARATION
