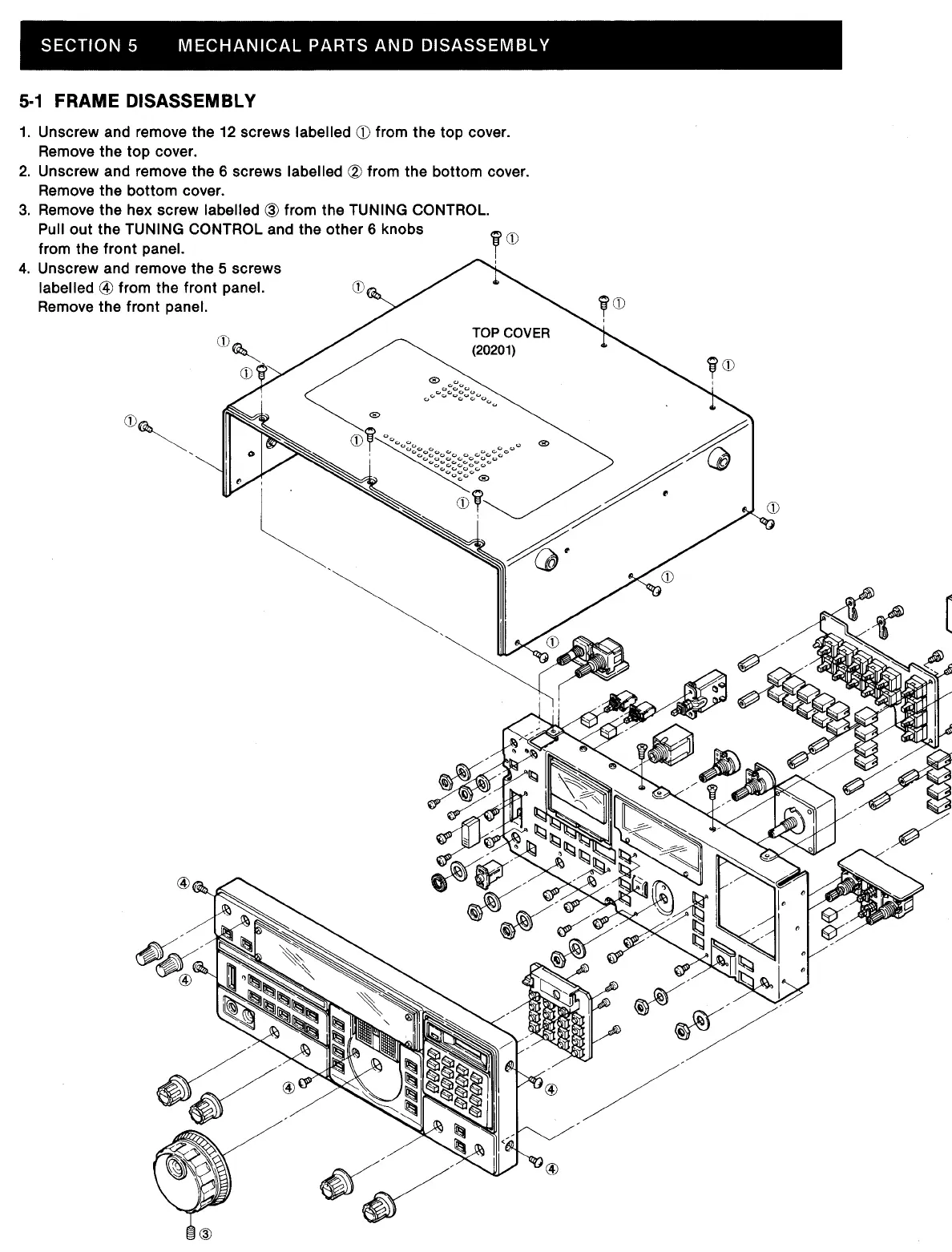

SECTION 5
MECHANICAL
PARTS
AND
DISASSEMBLY
5·1
FRAME DISASSEMBLY
1.
Unscrew and remove the
12
screws labelled
CD
from the top cover.
Remove the top cover.
2.
Unscrew and remove the 6 screws
labelled@
from the bottom cover.
Remove the bottom cover.
3.
Remove the hex screw
labelled@
from the TUNING CONTROL.
Pull
out the TUNING CONTROL and the other 6 knobs
from the front
panel.
4.
Unscrew and remove the 5 screws
labelled @ from the front panel.
Remove the front panel.
@
CD
TOP COVER
(20201)
(
