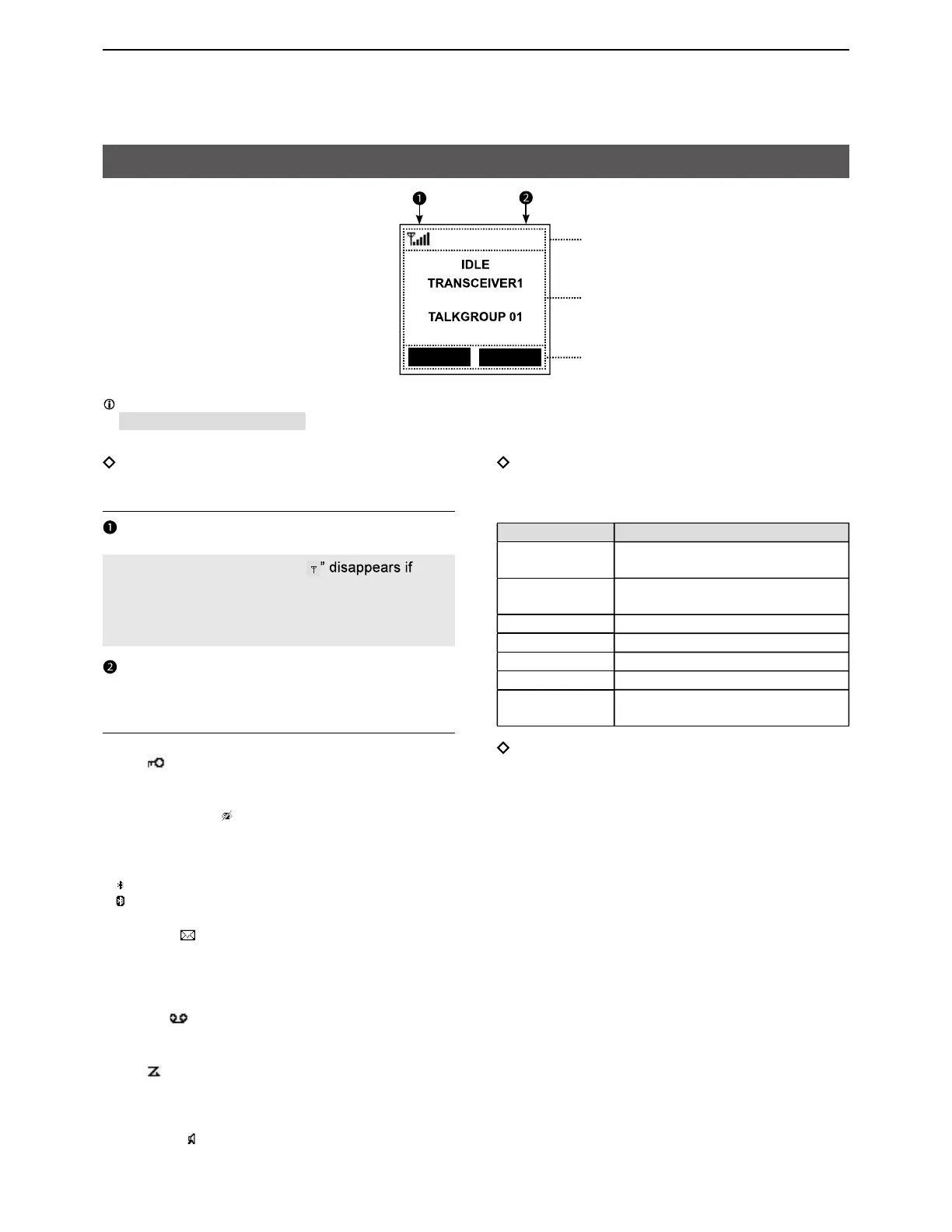

PANEL DESCRIPTIONS
2
1
Function display
Icon Area
Indicators
SIGNAL STRENGTH
Displays the relative receive signal strength level.
NOTE: The antenna indicator “
the connection with a satellite is not established.
Keep the antenna vertical and wait until you are
connected, or move your position to a place with a
clear view of the sky.
CLOCK
Displays the current time.
Icons
The following icons are displayed in the Icon Area.
LOCK
Displayed when the Lock function is ON.
SURVEILLANCE
Displayed when the Surveillance function is ON.
Bluetooth
®
• “ ” is displayed when Bluetooth is activated.
• “ ” is displayed when a Bluetooth device is connected.
MESSAGE
• Displayed when a message has been received.
• Displayed if unread messages are still in the Message
memory.
RECORD
Displayed when the Record function is ON.
SCAN
• Displayed when a scan is paused.
• Blinks while scanning.
RX Speaker
Displayed when the RX Speaker function is activated.
The display is shown in English as an example. Select other languages on the Menu screen, if necessary.
([OK] > Display > Language)
Last call
Scan
00:00
Icon area
Text area
Key display area
Text Area
Displays the status, preset transceiver name, and
selected Talkgroup Name.
Status Description
IDLE The selected Talkgroup is not
active.
OPEN The selected talkgroup is active,
but no one is talking.
REQUESTING Requesting the transmission.
TALKING Transmitting
LISTENING Receiving
SCANNING Scanning a call
BUSY Cannot transmit because the audio
is being received.
Key Display Area
Displays the names of the function assigned to [P1]
and [P2].
To Next Page
