• UT-109 and UT-110 scrambler units require some PC
board modifications. (See below and next.)
• IC-F30/F31GT/GS, IC-F40/F41GT/GS series require
a #02: High AF level type scrambler unit. Do not in-
stall the wrong version, as they are not compatible.
• The UT-110 may function as the UT-109 through
cloning software.
• Compatible cloning software: CS-F30G.
APPENDIX -4; IC-F30/F31GT/GS, IC-F40/F41GT/GS SERIES PRECAUTIONS
OPTIONAL UNIT INSTALLATION

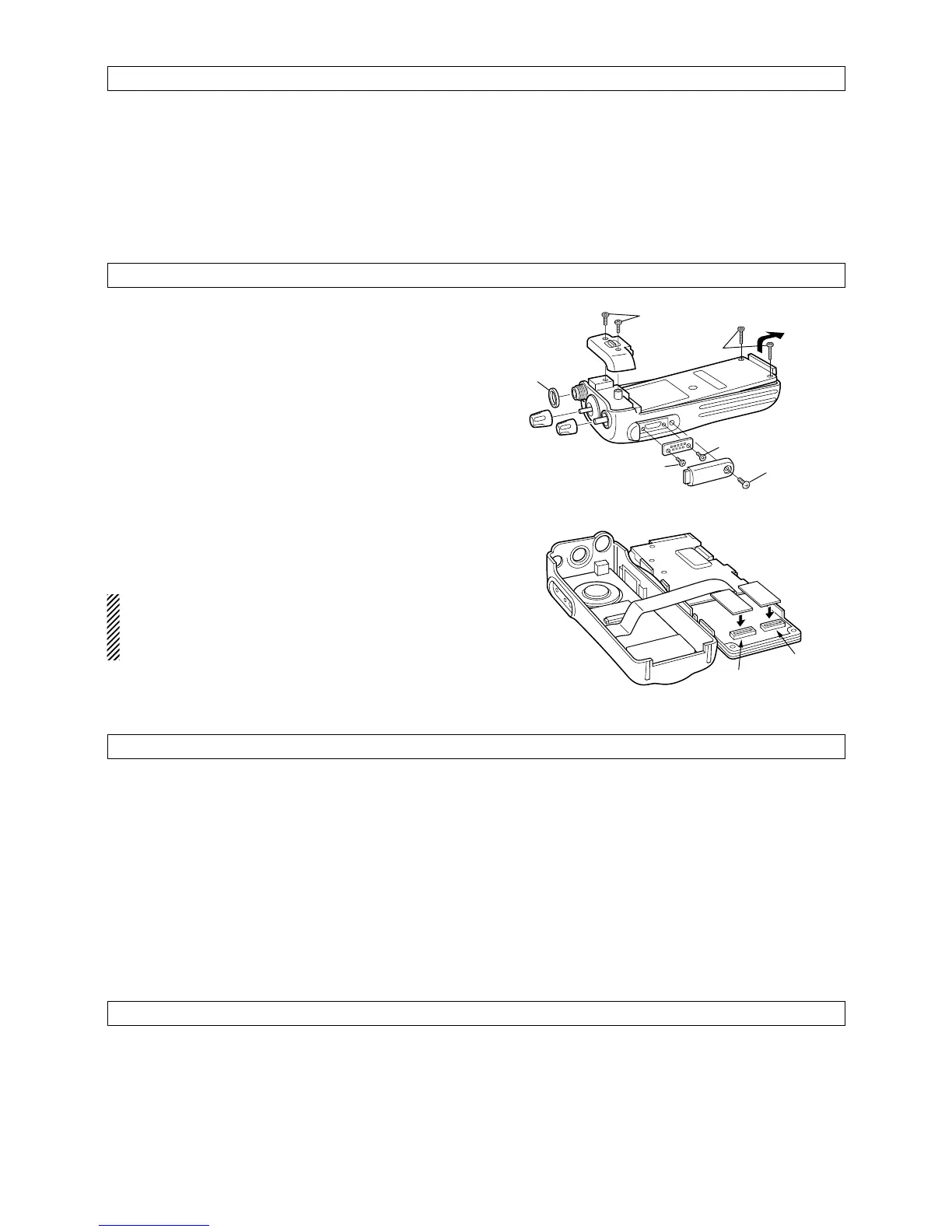

M Installation
Disassemble the some parts before install the scram-
bler unit.
q Unscrew nut a, and remove the knobs.
w Unscrew screw b and 2 screws c, then remove
the multi-connector cover and rear panel.
e Unscrew 2 screws d, then remove the multi-con-
nector.
r Unscrew 2 screws e, then take off the chassis from
the front panel in the direction of the arrow.
Be careful!:
Flat cable is connected between the MAIN unit on
the chassis and front panel.
t
Install the desired optional unit. Insert tightly to avoid
bad contact.
NOTE: When installing UT-105 or UT-111, the unit
MUST BE plugged into OPT1. Otherwise the unit
will not work correctly. (Other optional units can be
plugged into either slot.)
y Program the necessary information with the cloning
software before operation.
• Please refer the “IC-F3GT/GS, IC-F4GT/GS SERIES
CLONING NOTES” on p. 10.
Be sure to resolder disconnected points, otherwise
no TX modulation or AF output is available after you
remove the scrambler units.
NOTE FOR REMOVAL
• Program the scrambler function ON/OFF/Inhibit and
scrambler codes on the Edit Memory CH screen,
Scrambler type*, Group code*, Synchronous Capture
mode* and Tone Start Timing* on the [Common 2]
screen with cloning software when installing scram-
bler unit. (
*UT-110 only)
• Assign the scrambler function to a programmable key
as “Scrambler” on Key & Display Assign screen, if re-
quired.
• Operation with the [Scrambler] key:
− Push and hold to turn the voice scrambler function ON.
− Push to turn the voice scrambler function OFF.
CLONING
