C-Thrue HARDWARE DESCRIPTION
General
The C-Thrue and its accessories are delivered within a dedicated suitcase,

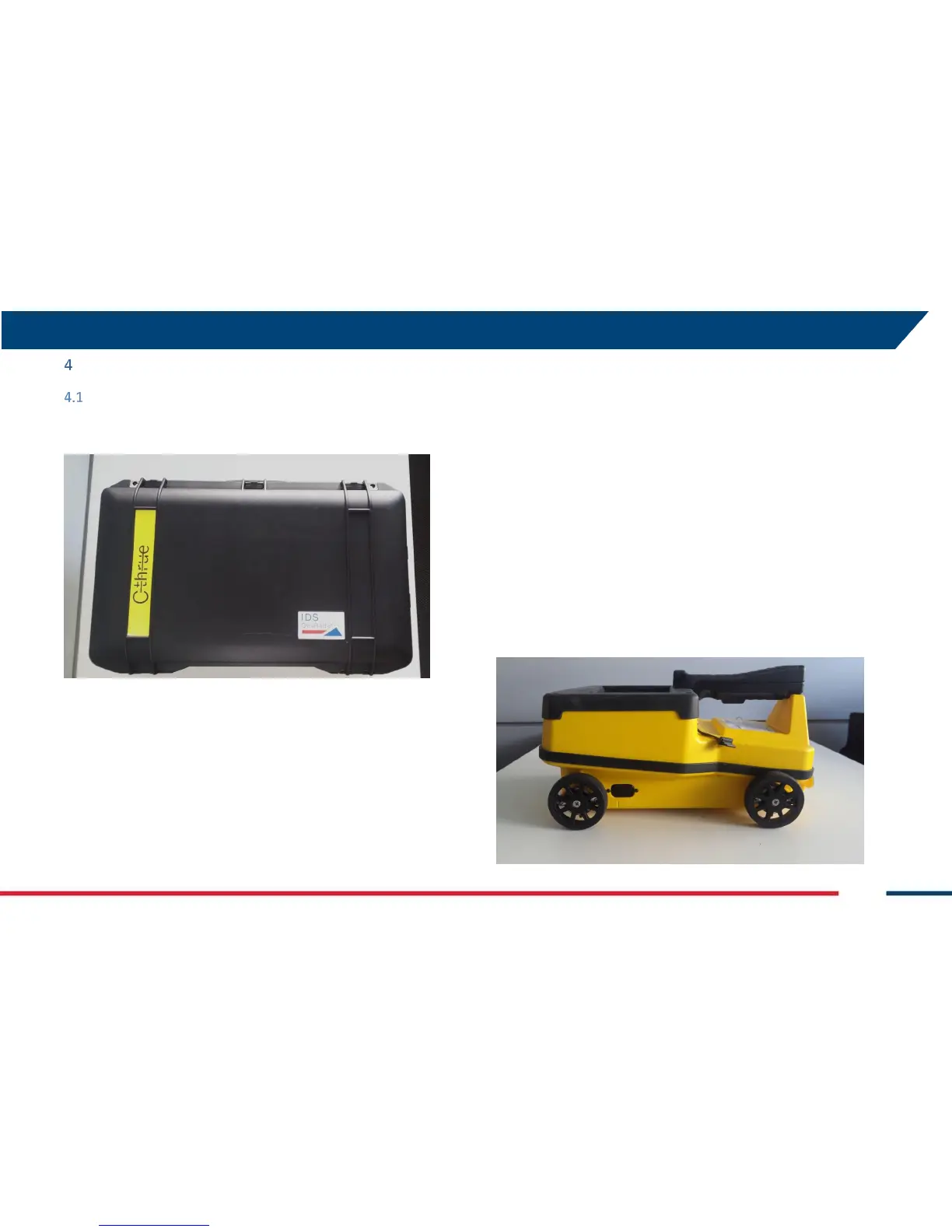

Fig. 1 :
Fig. 1 – C –Thrue suitcase
The C-Thrue system is composed by the following parts:
• C-Thrue main body.
• Embedded PC directly connected to the control unit.
• Integrated Antenna module and radar control unit (DAD).
• Multi-touchscreen display for the radar data visualization.
• 2 rechargeable 15 Volts Li-ion batteries.
• USB port for the radar data transfer and software updating.
• 4 Encoder wheels
• 3 laser interfaces for the 2D positioning system.
• Accessories:
o Battery charger (with universal adapter)
o Safety lace to hook the system to the wrist
o Six reflective bars for 2D positioning system
o Sticky modelling paste
• Optional accessories:
o Telescopic rod support
o External PC to remote by Wi-Fi connection the
embedded pc and for augmented reality data
display.
This chapter contains the description of the above listed parts.
The whole system is shown in Fig. 2 and Fig. 3.
Fig. 2 – The C-Thrue
