IDS GeoRadar s.r.l. MN/2017/011 Rev 1.0 23/ 38
HOW TO MANAGE THE ACQUISITION IN A JOB SITE
Automatic" mode
Step 1: Assemble the system and place the pad on the
surface to be investigated (Fig. 5.5).

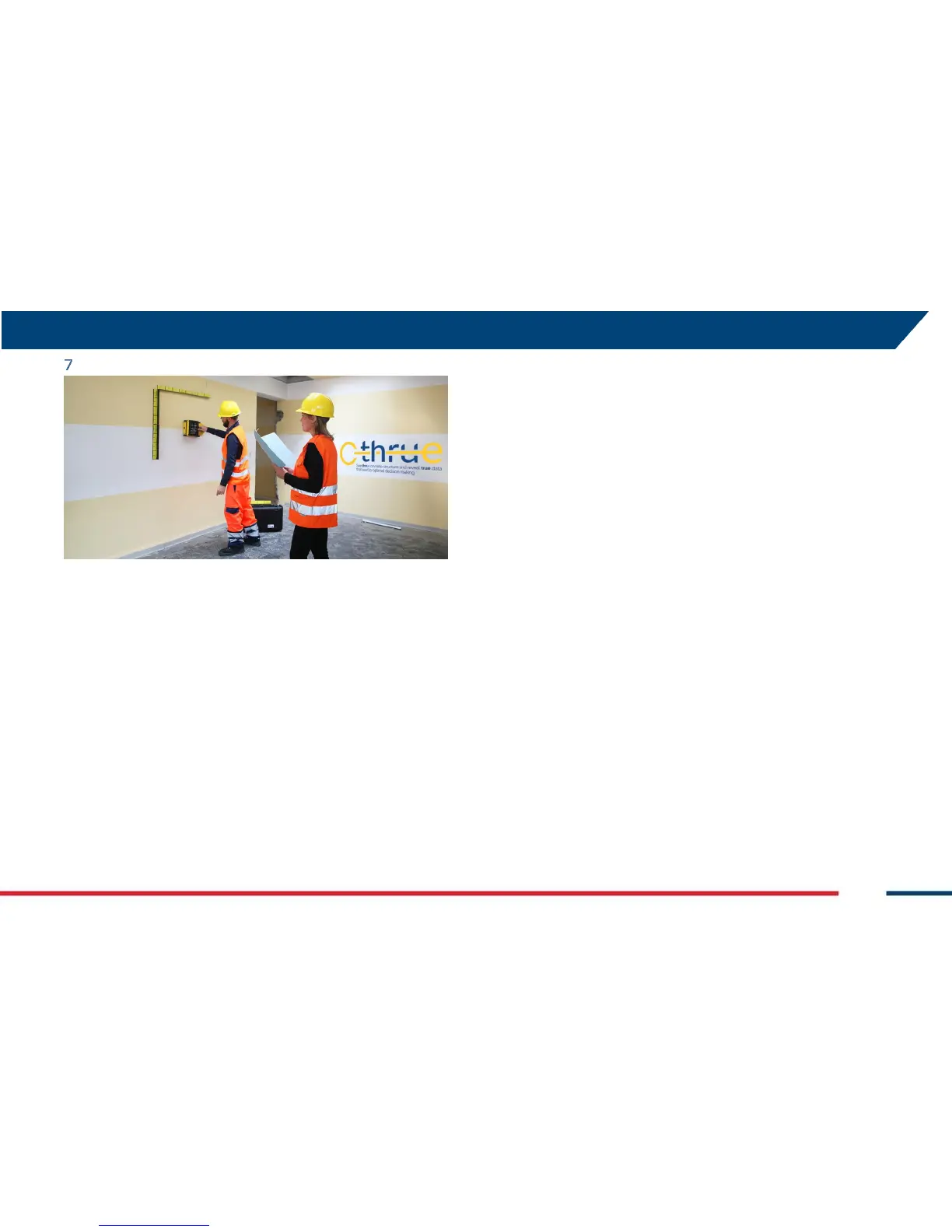

Fig. 5.5 – Aladdin System
Step 2: Start the K2 FW software, perform the calibration
and set the Aladdin structures kit parameters (as described
in Par. 5.2 of this manual).
NOTE!
If you are using a bipolar antenna, only longitudinal scans
must be performed; for a single high frequency antenna,
perform both longitudinal and transversal scans
Step 3: Position the antenna on the initial pre-set
coordinate in the L (or T) direction and carefully position
the antenna until the acoustic signal stops.
Step 4A (Standard System): Press one of the START buttons
placed on the handle or directly on the antenna; a special
acoustic signal will confirm that the START button has been
pressed.
Step 4B (US-Canada System): Press one of the START
buttons placed on the handle or directly on the antenna
and keep it pressed; a special acoustic signal will confirm
that the START button has been pressed. Releasing the
button, the collection will stop after 10 sec.
IDS Ingegneria Dei Sistemi S.p.A. N doc.: MN/2013/035 -
Rev. 1.1
“ALADDIN” STRUCTURE KIT - User Manual
30/33
All information contained in this document is property of
IDS. All rights reserved
Manual” Mode
Steps 1-4: Follow the same procedure described for
"Automatic" mode above.
Step 5: Acquisition starts when you press the START button,
independently of the
position of the first horizontal line encountered.
Step 6A (Standard System): Insertion of User Markers
during scanning is performed by
rapidly pressing the START button.
Step 6B (US-Canada System): Insertion of User Markers
during scanning is performed
by rapidly releasing and pressing again the START button.
Step 7A (Standard System): The scan is STOPPED by keeping
the START button
pressed
Step 7B (US-Canada System): The scan is STOPPED by
releasing the START button
