4.3.1.2 Inspection of air hoses between the carburettors and the air filters
The pressure sensor hoses must be checked for damage, general condition and
secure fitting.
C42 /C42 UK C42B / C42B UK / C42E

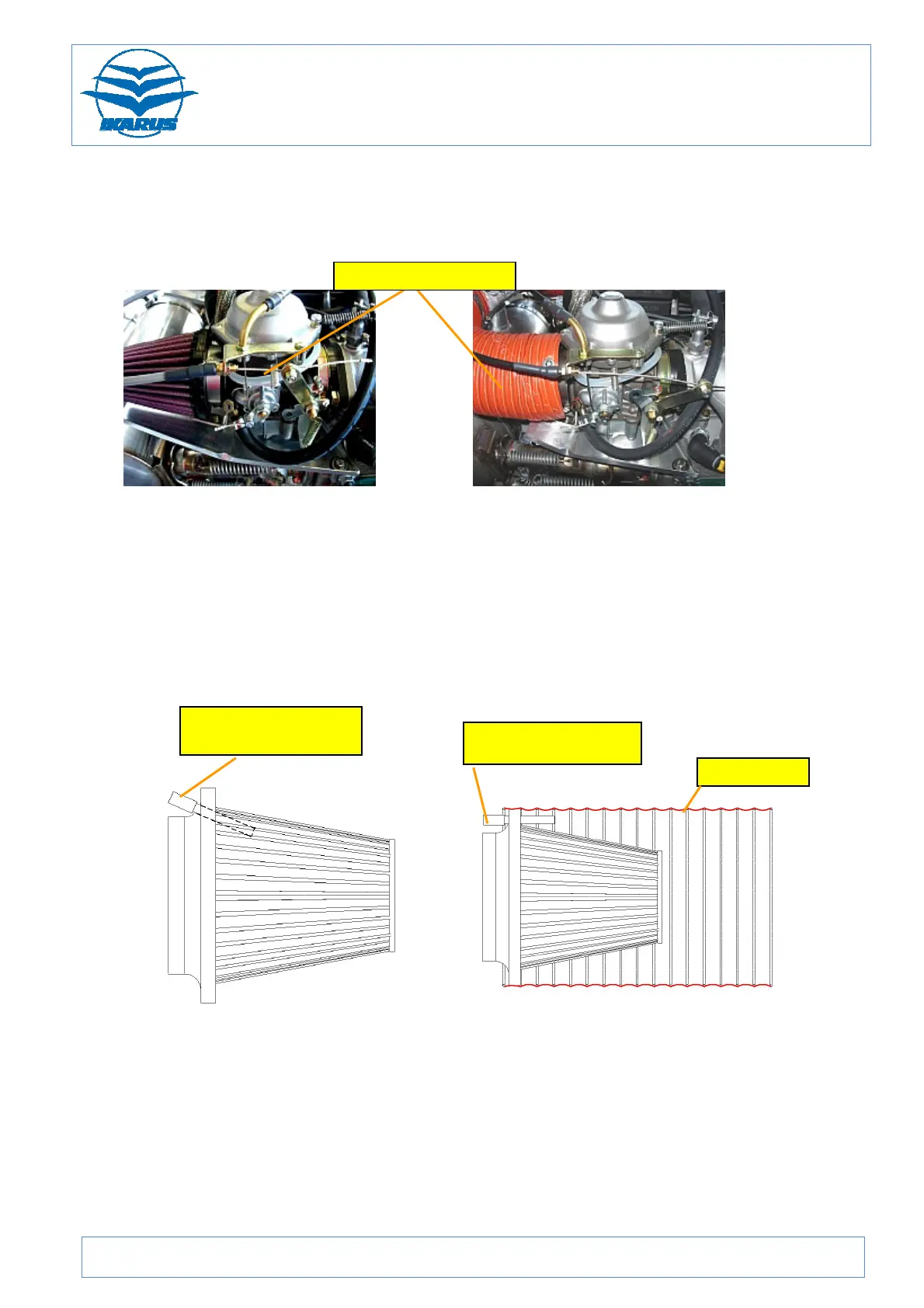

Figure 57: Hoses between air filters and the carburettors
Pressure pick-up occurs at different points in the C42 / C42 UK and C42B / C42B UK
/ C42E . In the former case, pressure pick-up is inside the air filter whereas in the
case of the C42B / C42B UK / C42E it is outside the filter.
Figure 58: Schematic depiction of carburettor pressure sensors
pressure sensor
pressure sensor tubes
C42 / C42 UK /
