15
67372
67382
67571
67385
67399
1.
1.
2.
2.
3.
67465
67464
68245
67380

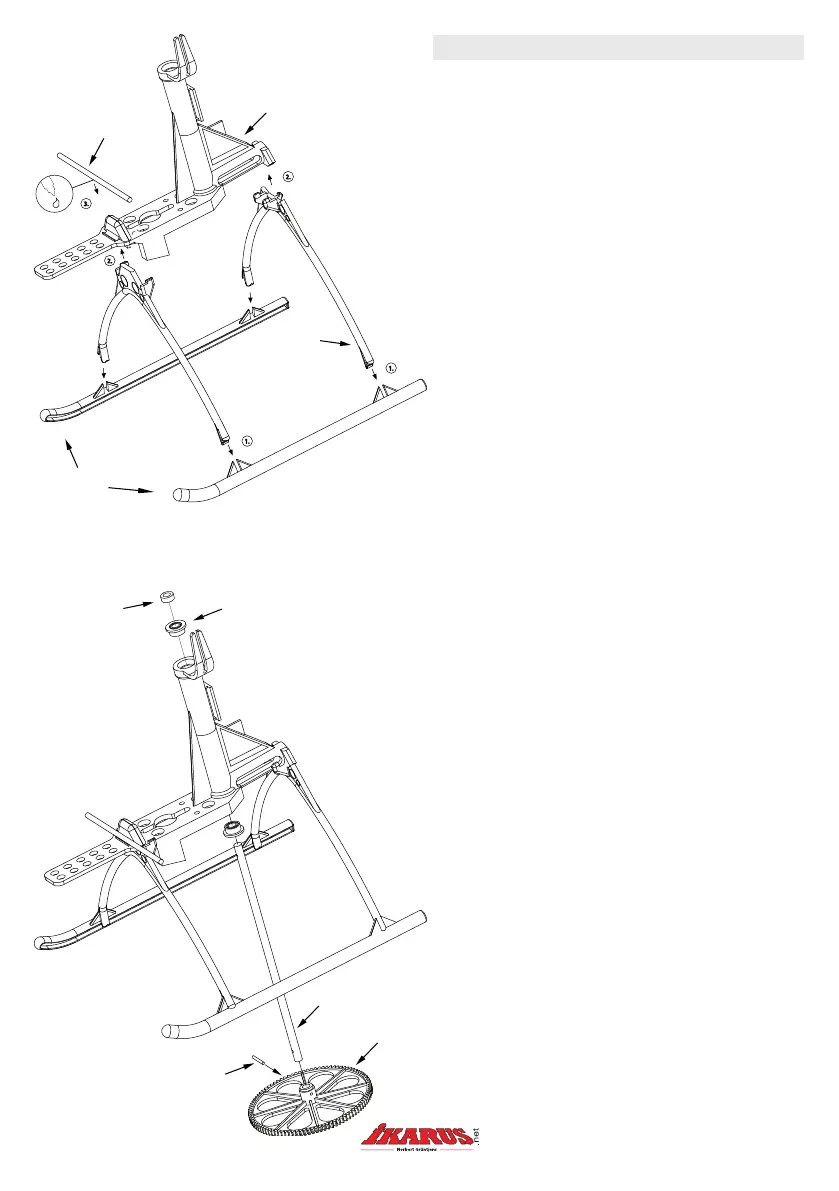

Chassis Assembly
Now use one drop of CA glue to stick the canopy
mount # 67380 to the middle of the main frame #
68245. Now the skid landing gear is clipped toge-
ther. Now clip the skids # 67465 into the front and
rear skid brackets # 67464 as shown in the drawing.
The front part of the skid landing gear is now pushed
into the slot in the chassis until it clicks in. Then the
rear skid brackets, whereby care must be taken that
the small lugs on the front click into the slots.
Push the main gear wheel # 67372 onto the main ro-
tor shaft # 67382 and use pliers to push the retaining
pin # 67399 through the holes in the gear and shaft.
Push the two bearings # 67571 into the housing,
push the rotor shaft through them and retain from
above using the rubber grommet # 67385.
