A. GETTING STARTED
Control Box:
1. Insert the power cord into the rear of your unit (14). The unit automatically
adjusts to either 110V or 240V AC.
2. Connect the coolant supply tube to your coolant supply – Pressure should
not exceed 3 BAR (40 psi). A pump up pressure tank is also available.
B. HANDPIECE AND TIP INSERT
1. Connect the handpiece tubing (3) with the rear of the handpiece (4)
2. Insert an instrument tip (6) into the handpiece with a twisting motion until
fully seated.

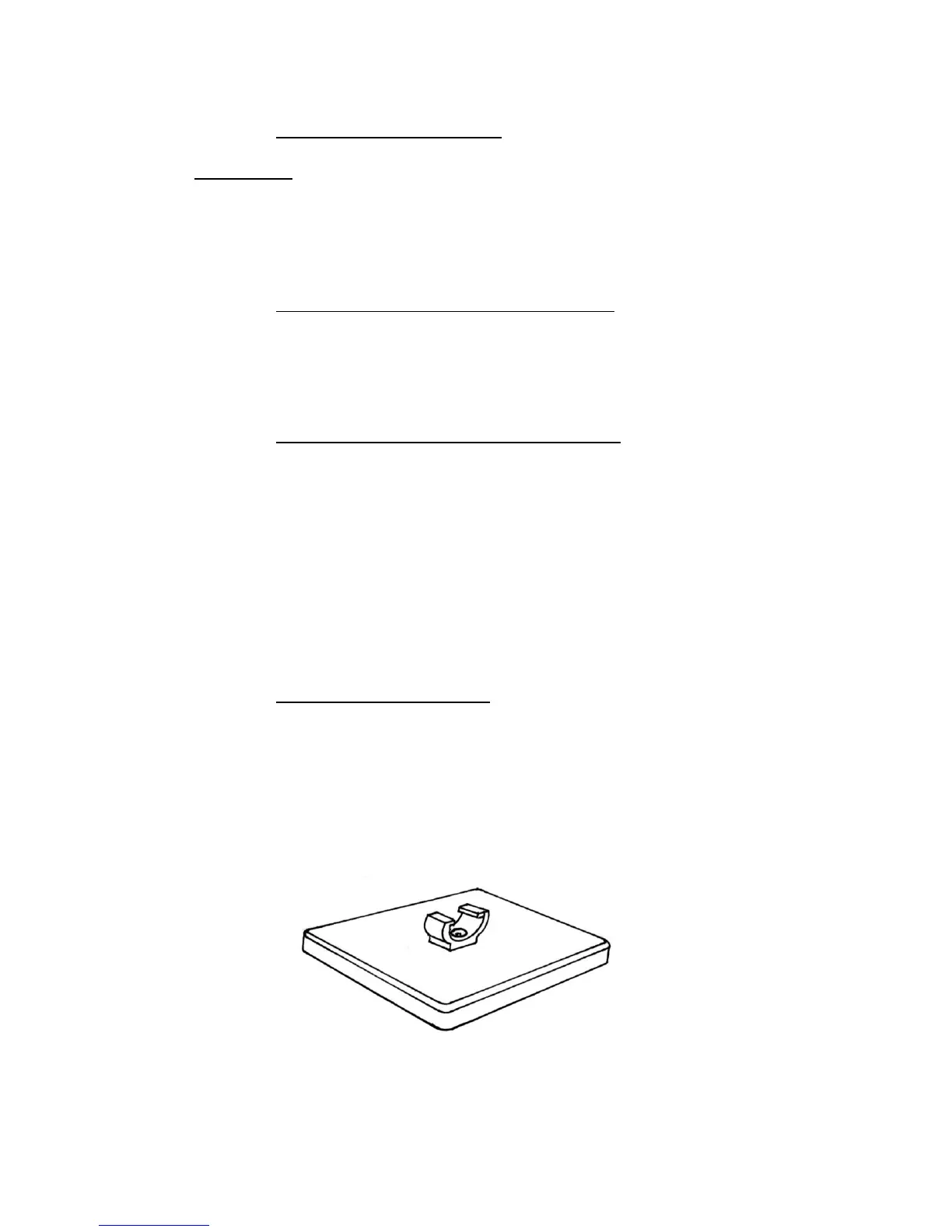

C. CORIAN HANDPIECE HOLDER
1. This holder is designed to reduce Stack (7) breakage by preventing the
Handpiece accidentally falling on the floor this usually occurs when the
Handpiece is placed on the table while adjusting the animal‟s head.
Position the Corian Handpiece Holder right at the animals head, and
make a habit of every time you put the Handpiece down, place it in the
holder. It will help reduce accidental stack breakage.
2 The iM3 2000 Professional Dental Unit has a handpiece holder on the
front for the 42-12.
D. POWER SETTINGS
1 The Actual power setting (17) can be seen through the Top of the Control
Box. One light indicates lowest power and five lights indicate maximum
power. A touch on the power adjusting spot (2) will alter the power setting.
One light (minimum power) is approximately 25% of maximum power.
Normal scaling is 2 or 3 lights illuminated.
