Immergas EOLO Star 23 kW User Manual

3
STESkW ed 05/06 EOLO Star 23 kW
Technical Documentation
Technical Documentation

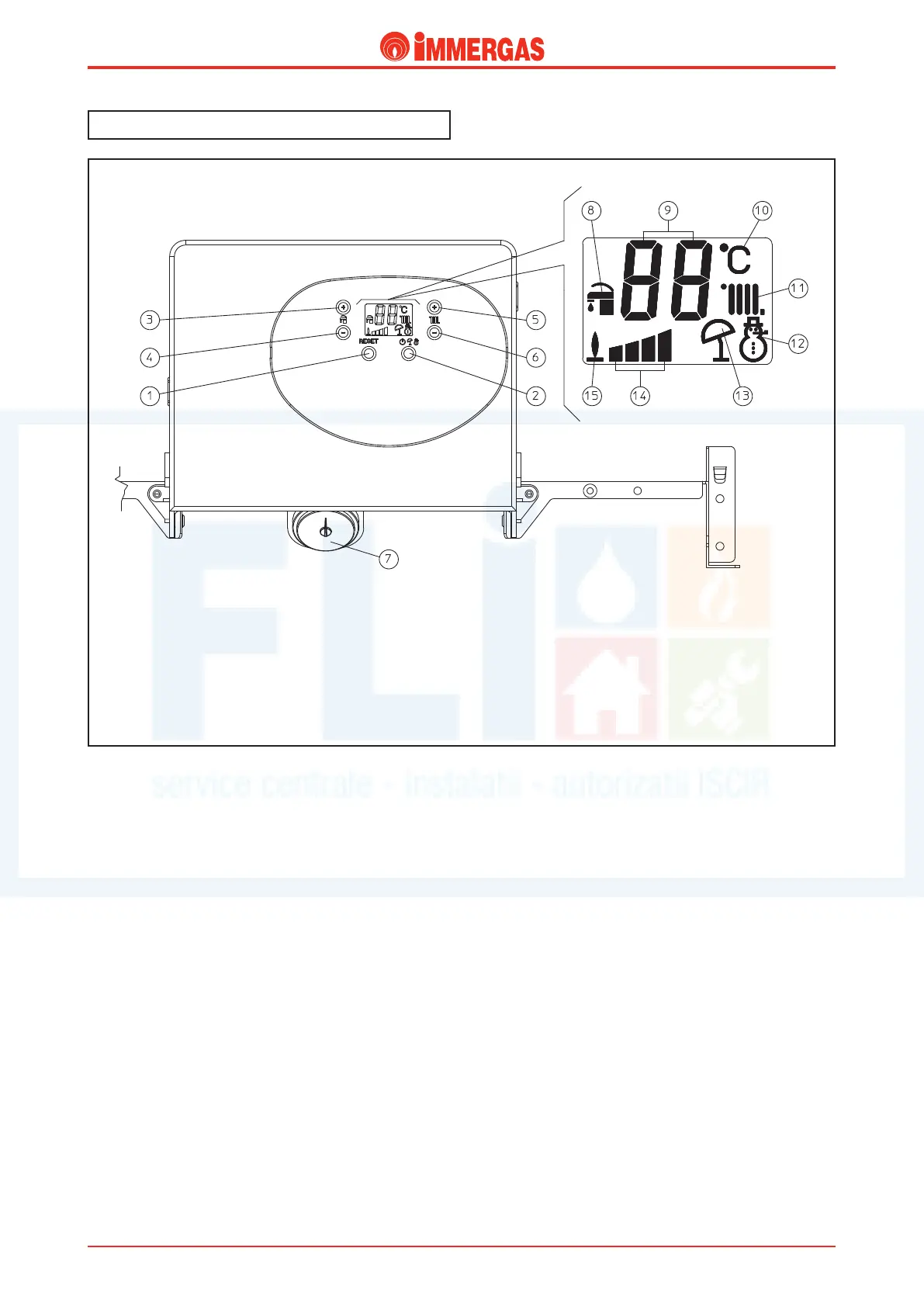

Legend:
1 - Reset Push Button
2 - Stand-by / Summer / Winter Push Button
3 - Push button (+) to increase d.h.w. temperature
4 - Push button (-) to reduce d.h.w. temperature
5 - Push button (+) to increase system water temperature
6 - Push button (-) to reduce system water temperature
7 - Boiler pressure gauge
8 - D.h.w. functioning mode
Control panel.
9 - Displays temperatures and error codes
10 - Unit of measure
11 - Central heating functioning mode
12 - Winter
13 - Summer
14 - Power supplied
15 - Burner operating
http://serviceimmergas.ro

Immergas EOLO Star 23 kW Specifications

General

Output Power	23 kW
Efficiency	93.5%
Weight	32 kg
Mounting	Wall-mounted
Max Operating Temperature	85°C
Ignition	Electronic
Heat Exchanger Material	Stainless Steel
Fuel Type	Natural gas
Water Pressure	0.3 - 6 bar
