e central heating circuit, with relevant control and safety
devices, is operated every time a central heating request is
made.
Operation.
e heat contained in the fumes produced by combustion
is absorbed by the copper blades of the water-gas exchanger
(7) which, in turn, transfers it to the water circulating inside
thanks to the boiler circulator (16).
e hot water is then transferred directly into the central heat-
ing system through the delivery (M) and return (R) pipes.

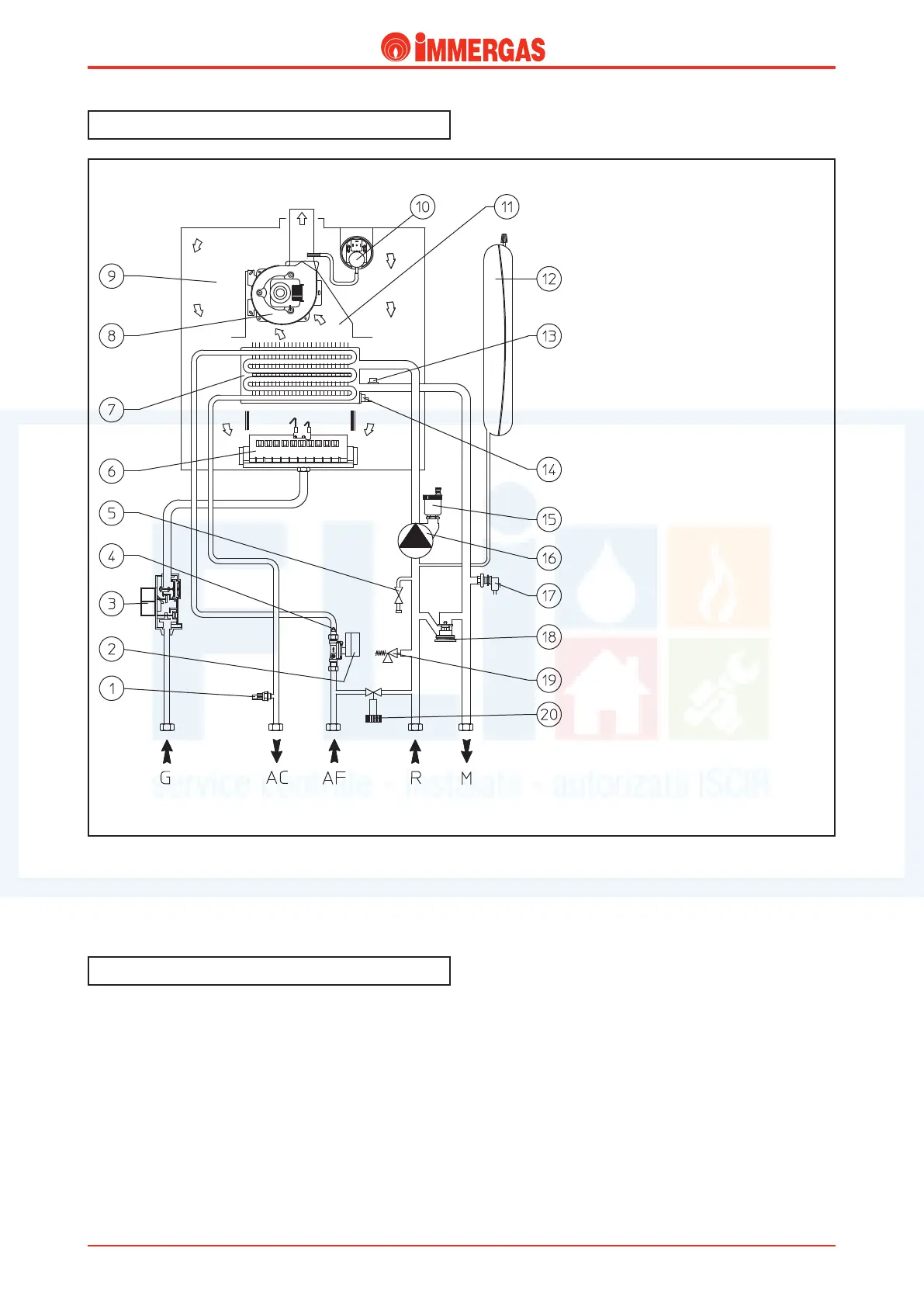

Legend:
1 - D.h.w. probe
2 - D.h.w. flow switch
3 - Gas valve
4 - Flow limiter
5 - Draining cock
6 - Burner
7 - Rapid exchanger
8 - Fan
9 - Sealed chamber
10 - Flue pressure switch
11 - Draught diverter
12 - System expansion vessel
13 - Delivery probe
14 - Safety thermostat
15 - Automatic air vent
16 - Boiler circulator
17 - System pressure switch
18 - Automatic by-pass
19 - 3 bar safety valve
20 - Filling valve
G - Gas supply
AC - D.h.w. outlet
AF - Cold water inlet
R - System return
M - System delivery
Hydraulic circuit.
Primary circuit (Boiler Circuit).
Hot water for central heating and domestic use is produced
by two separate circuits that work as required.
