InFocus IN24 User Manual

5

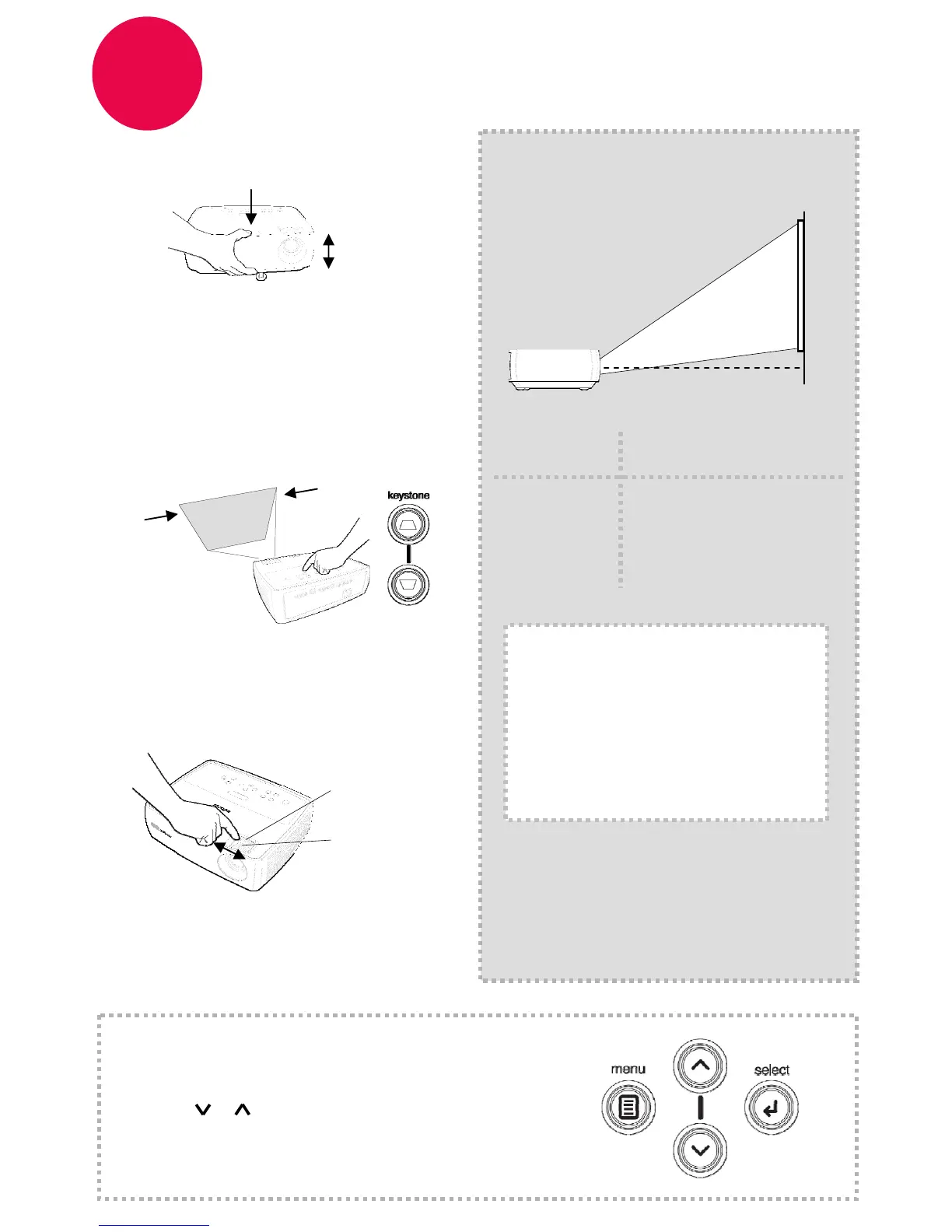

Adjust the picture
Height
1
Keystone
2
Zoom and focus
3
1
2
3
Adjust zoom first, then focus the
center of the image.
Press the keystone buttons to
make the picture square.
Projector location
Interactive Screen Size and
Distance Calculator
www.infocus.com/calculator
Buy a Screen and Other Custom
Accessories
www.infocus.com/store
As distance increases, the
image gets larger and
moves upwards.
60” / 1.5 m
80” / 2 m
92” / 2.3 m
150” / 3.8 m
7’11” / 2.4 m
10’6” / 3.2 m
12’2” / 3.7 m
19’8 / 6 m
8’2” / 2.5 m
11’2” / 3.4 m
12’10” / 3.9 m
21’ / 6.4 m
Minimum MaximumScreen Size
Distance to Screen
Diagonal
Lens center line
Ceiling mount?
To flip the image, enable Ceiling in the
System menu (press menu, then select
Settings > System > Ceiling).
Zoom
(rear)
focus
(front)
1
2
Hold down the release button on top
of the projector.
Lift the front of the projector to the
desired height.
Release the button.
Press menu to show menus
Press or to choose items (or adjust setting)
Press select to confirm menu choice
Press menu to hide menus
1
2
3
4
Using the menus

InFocus IN24 Specifications

General

Matrix size	0.55 \
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 85 Hz
Horizontal scan range	15.85 - 85 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	2000:1
Screen size compatibility	33.6 - 248.4 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	25 - 30 °
Projector brightness (economic mode)	1360 ANSI lumens
Lamp type	SHP
Lamp power	200 W
Light source type	Lamp
Lamp power (economic mode)	160 W
Service life of light source	3000 h
3D	-
Full HD	No
Supported video modes	1035i, 1080i, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Noise level	35 dB
Plug and Play	Yes
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	250 W
Operating temperature (T-T)	10 - 40 °C
Focal length range	- mm
RS-232 ports	0
Maximum analog resolution	1024 x 768 pixels
RMS rated power	1 W
Number of built-in speakers	1
USB connector type	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black, Silver

Weight and Dimensions

Weight	2700 g
