OPERATING INSTRUCTIONS
22

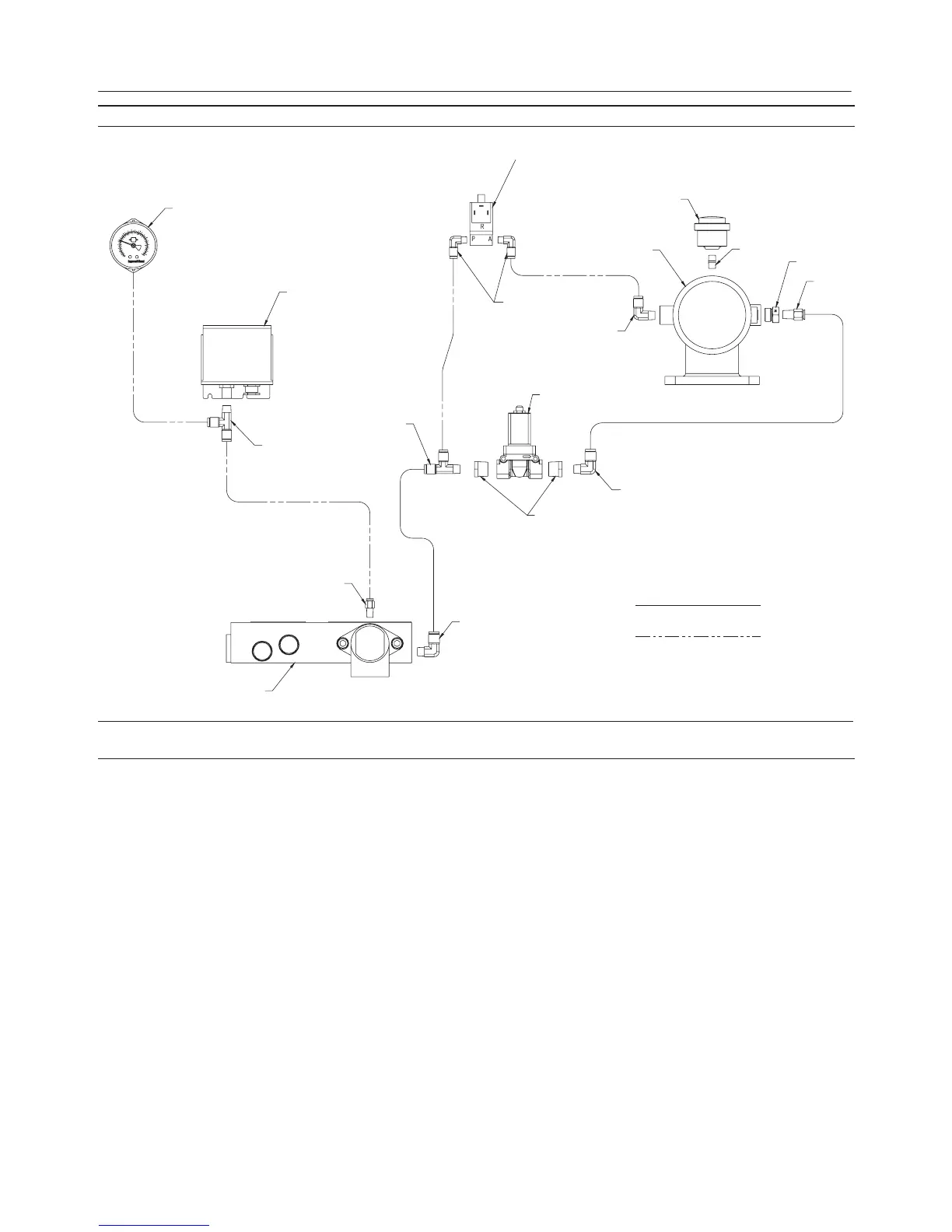

ELECTRO–PNEUMATIC CONTROL AND INSTRUMENTATION
KEY
1. Pressure gauge
2. Pressure switch
3. Tee
4. Connector
5. Combination block
6. Elbow
7. Tee, male run
8. Reducer bushing
9. Valve, solenoid (Blowdown)
10.Valve, solenoid (Load)
11.Indicator air filter
12.Nipple
13.Adaptor
14.Intake valve assembly
NOTES:
A. Tubing 3/8 inch
B. Tubing 1/4 inch
1
2
3
4
5
7
8
A
B
6
6
9
6
14
12
6
10
11
13
4
