12 Programming
Installation and Programming manual
Chapter 5
PROGRAMMING
The programming session cannot begin until after first startup,
therefore, it is necessary to ensure that:
• all power sources to the Ivy unit (mains and battery) are
disconnected;
• the tamper protection is open;
• the Intrusion control panel will allow you to work on the Ivy unit
without generating alarms (for example; put the intrusion-
control panel in Programming status).
The Programming menu allows you to program and change the
device configuration. Access to programming is indicated by blinking
on the LEDs (STATUS LED , left flasher, right flasher and PRG LED).
The PAGE button (Table 4, A) allows you to access the menus.
5-1The Programming steps
1. Remove the cover.
2. Powerup the device; the STATUS LED will blink at 1 second
intervals. The device will exit the programming phase and step
back to this point if no command is received within the allowed
time.
3. Press and hold the PAGE button until the STATUS LED goes
Off.
4. Use the PAGE button to move to the different options on the
menu The LED combination (the LEDs which blink) identifies
the option concerned.
5. Press the SEL button (Table 4, B), to select the required
option. The LED combination (the LEDs which are On solid)
indicates the current setting of the option concerned.
6. To change a setting, press the SEL button again until the LED
combination indicates the desired setting.
7. The PAGE button will allow you to select the desired menu.
8. To exit the Programming session, wait 20 seconds (do not
press any buttons); the LEDs will blink to signal that the ses-
sion has ended. If you wish to exit without saving, select “0”
from the menu.
9. To complete the installation phase, work through the steps
indicated in paragraph 2-1 Installation guidelines from point
10.

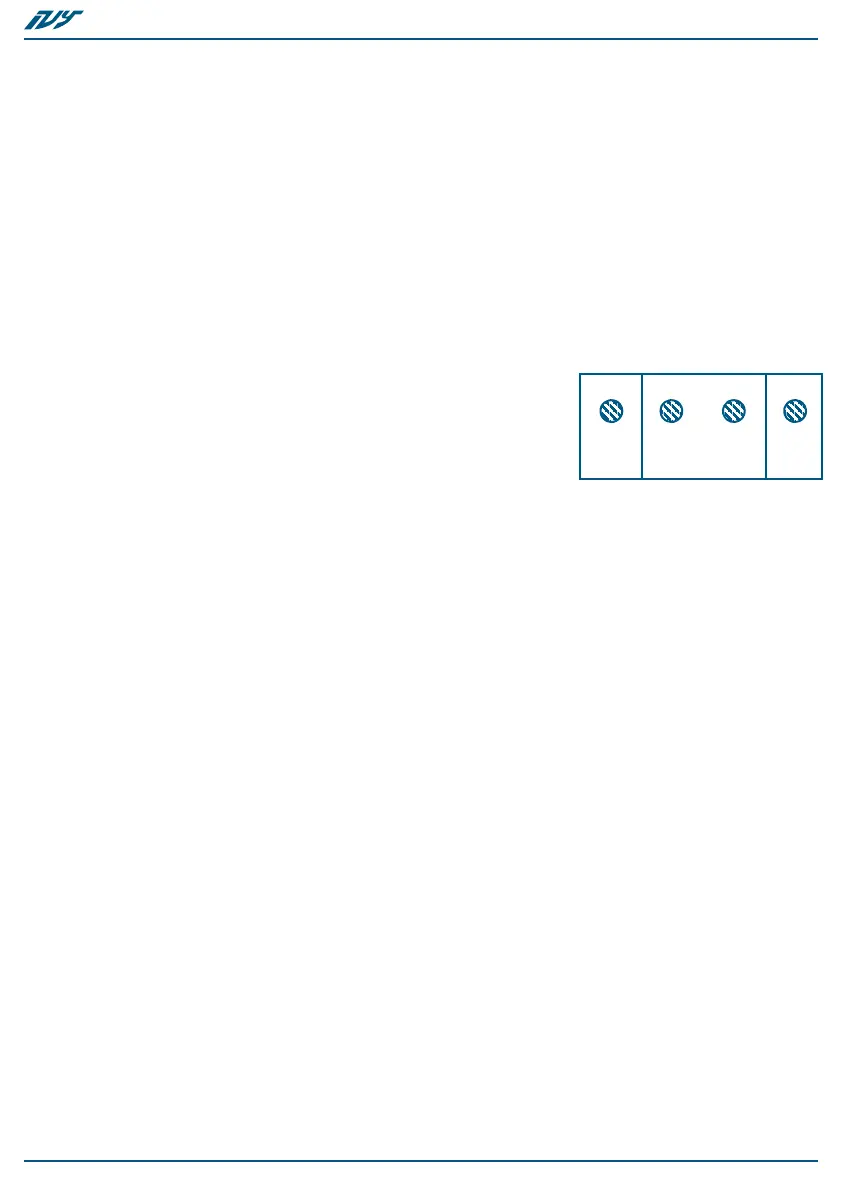

3
Visual signaling
210
left right
PRG
LED
PRG
LED
To Next Page
