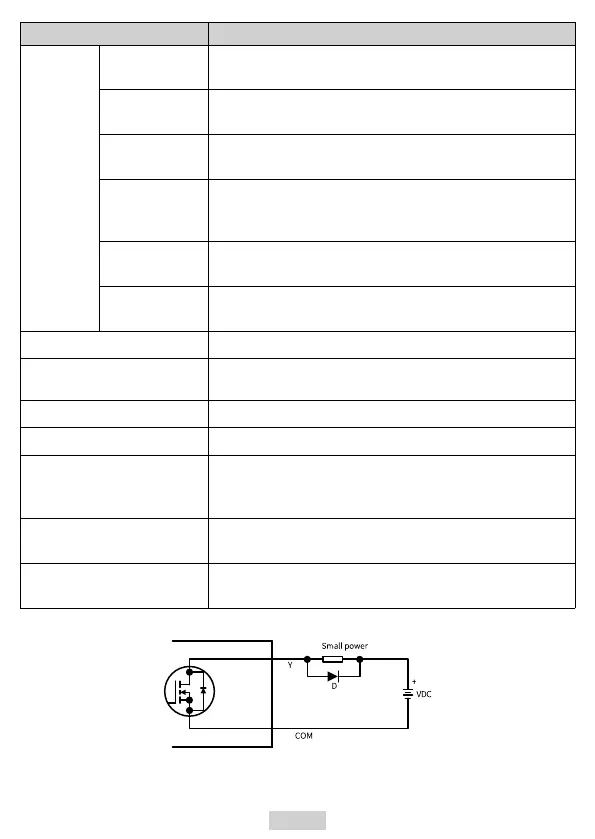

Item Specifications
High‑speed
output
(Y0 to Y7)
Output load
(resistive load)
0.5 A/point; 2 A/8‑point
Output load
(inductive load)
7.2 W/point; 24 W/8‑point
Output load
(lamp load)
5 W/point, 18 W/8‑point
Hardware
response time
ON/OFF
< 1 us (OFF→ON); < 2 us (ON→OFF)
Load current
requirements
Load current ≥ 12 mA when used with outputs greater
than 10 kHz
Max. output
frequency
200 kHz for resistive load; 0.5 Hz for inductive load; 10 Hz
for lamp load
Leakage current at OFF Less than 30 uA at 24 V
Max. residual voltage during
ON
Less than 0.5 VDC
Isolation mode Digital isolator
Common terminal mode 8‑point/common terminal (“‑” of power supply)
Short circuit protection Providing protection against short circuit of each circuit
(The short circuit protection state can be cancelled through
a power cycle.)
External inductive load
protection
Connect a flywheel diode
[1]
when connecting the external
inductive load.
Output action display The output indicator lights up (controlled by software)
when the output is in drive state.
[1]： D: 1N4001 or similar diodes are shown in the following figure.
