‑12‑
2 Mechanical Installation
2.1 Mounting Dimensions
■ Module

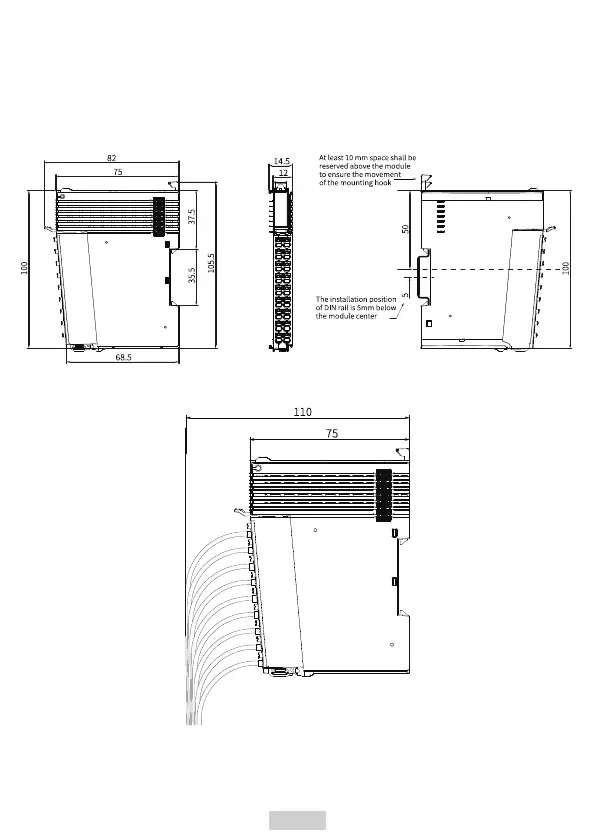

The mounting dimensions (in mm) are shown in the figure below.
■ Cable Connection
