Inovance GL20-4DA User Manual

Name: Inovance GL20-4DA
Brand: Inovance
Rating: 5 (1 reviews)

22 pages

To Next Page

To Previous Page

‑16‑

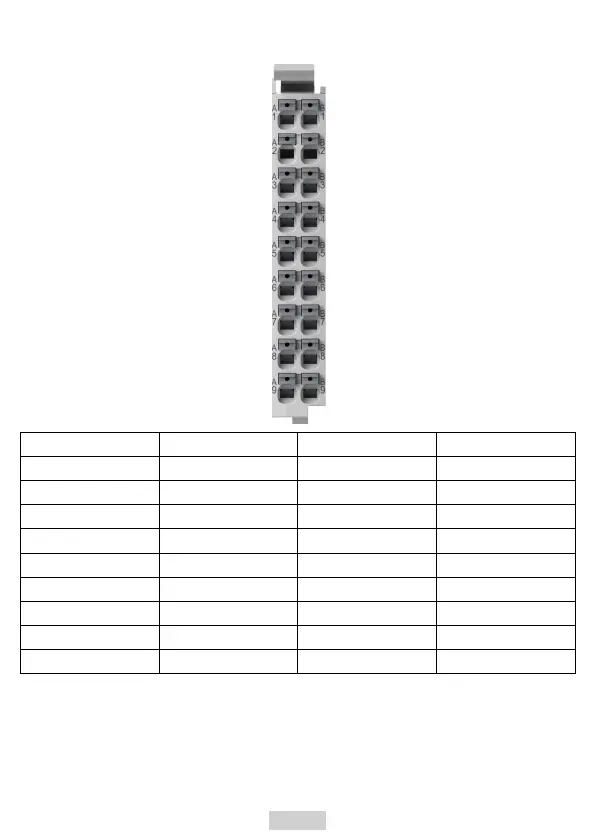

3.2 Terminal Definition

Signal Left Terminal Right Terminal Signal

V0+ A1 B1 V1+

I0+ A2 B2 I1+

VI0‑ A3 B3 VI1‑

V2+ A4 B4 V3+

I2+ A5 B5 I3+

VI2‑ A6 B6 VI3‑

‑ A7 B7 ‑

PE A8 B8 PE

24 V A9 B9 COM
