2 Product Information
- 9 -
2
2.3 Components

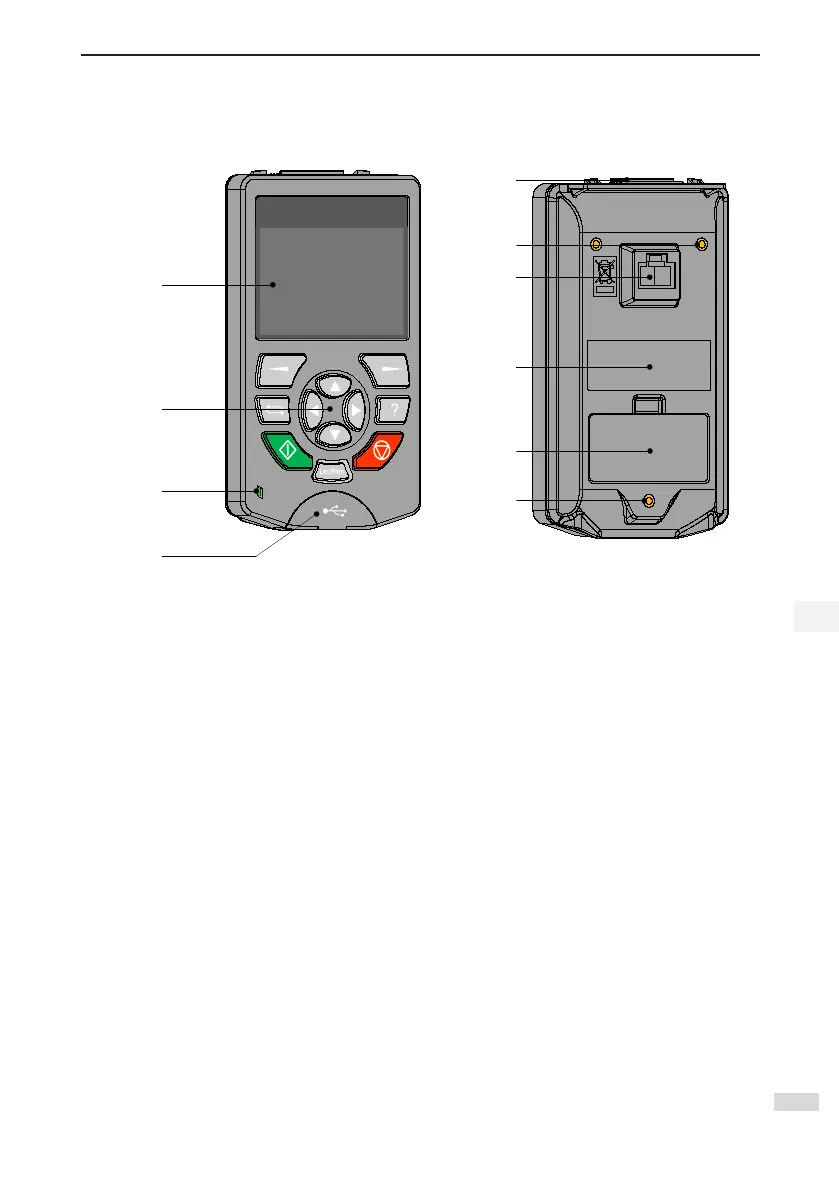

Figure 2-3 MDKE9 Components
Screen
Keys
Indicator
USB
connector
MDKE9
Fixing hook
RJ45 interface
Nameplate
Battery cover
Fastening
screw
Fastening
screw
● USB connector
Connect the MDKE9 to a PC via a USB cable for data exchange after connection, it can work in USB disk
mode to read/write the MDKE9 SD card through PC.
● RJ45 connection terminal
To connect MDKE9 to the AC drive. Mechanical connection is completed through the top buckle.
● Nameplate
To show information such as product model and serial number
● Battery cover
The battery and SD card slot are beneath the cover. The battery provides power to the real-time clock.
The SD card stores factory parameters and real-time data of the AC drive, which helps in fault diagnosis
and analysis. The SD card can also be used to store user program, update rmware or update device.
● Fixing hook
To x the MDKE9 to the base
● Fastening screw
The MDKE9 can be installed on the cabinet door by using the installation package (IP20). When the system
protection class is high (IP54), you may select the installation package with higher protection class (MDKE9
panel with IP54 installation package), and then x the MDKE9 with the fastening screws.
