INPUT/ENTER
In TV or Blu-ray mode, press to select the video input
source. For more information, see “Selecting the video
input source” on page 14.
In menu mode, press to confirm a selection.
POWER Press to turn your TV on or off.
Disc slot Insert a disc in this slot to start playback.

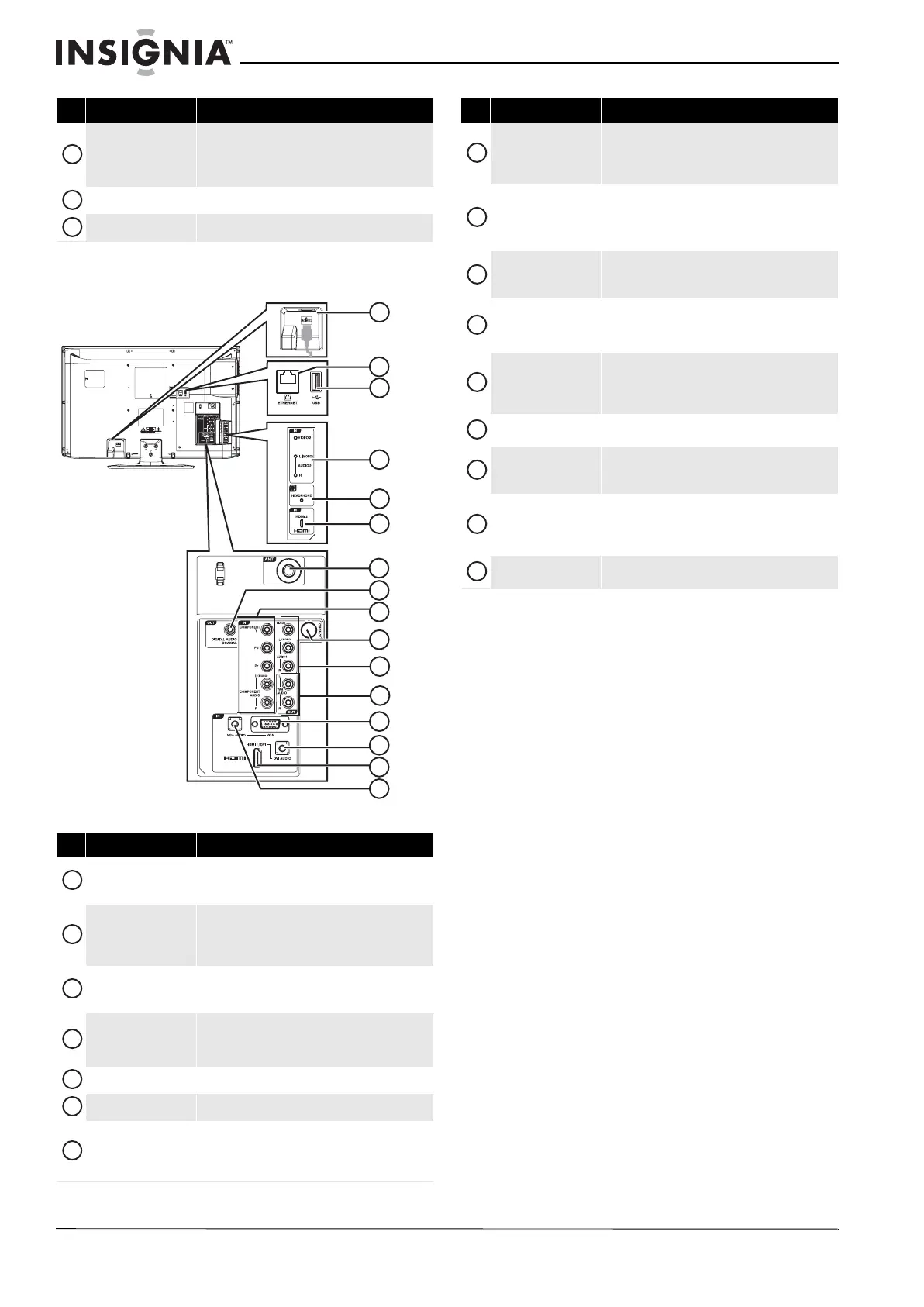

# Item Description
AC INPUT
Connect the power cord to this jack and to a power
outlet. For more information, see “Connecting the
power” on page 9.
ETHERNET
Use this jack to connect your TV/Blu-ray combo to the
Internet to download BD-Live information. For more
information, see “Setting the BD-Live Internet access
level” on page 46.
USB
Connect a USB drive to this jack to play files on your
Blu-ray Disc player or to update you system. For more
information, see “Using Media Launcher” on page 36.
VIDEO 2 IN and
AUDIO 2 IN L(MONO)
and R
Connect a composite video device to these jacks.
HEADPHONE Connect headphones to this jack.
HDMI 2 IN Connect an HDMI device to this jack.
ANT.
Connect an antenna, cable TV, or satellite TV to this
jack. For more information, see “Connecting an
antenna or cable TV (no box)” on page 10 or
“Connecting a cable or satellite TV box” on page 10.
# Item Description
6
7
8
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
12
1
2
3
4
5
6
7
DIGITAL AUDIO
COAXIAL OUT
Connect a digital coaxial audio system to this jack to
play your TV/Blu-raycombo’s audio through external
speakers. For more information, see “Connecting a
digital coaxial audio system” on page 13.
COMPONENT IN VIDEO
and COMPONENT
AUDIO IN L(MONO)
and R
Connect a component video device to these jacks. For
more information, see “Connecting a component
video device” on page 12.
S-VIDEO IN
Connect an S-Video device to this jack. For more
information, see “Connecting an S-Video device” on
page 12.
VIDEO 1 IN and
AUDIO IN 1 L(MONO)
and R
Connect a composite video device to these jacks. For
more information, see “Connecting a composite video
device” on page 12.
VAR AUDIO OUT L and R
Connect an analog audio system to these jacks to play
your TV/Blu-ray combo’s audio through external
speakers. For more information, see “Connecting an
analog audio system” on page 13.
VGA
Connect the video for a computer to this jack. For more
information, see “Connecting a computer” on page 13.
DVI AUDIO IN
Connect the audio for a DVI device to this jack. For
more information, see “Connecting a DVI device” on
page 11.
HDMI 1/DVI IN
Connect an HDMI device or the video for a DVI device
to this jack. For more information, see “Connecting an
HDMI device” on page 11 or “Connecting a DVI device”
on page 11.
VGA AUDIO
Connect the audio for a computer to this jack. For more
information, see “Connecting a computer” on page 13.
# Item Description
8
9
10
11
12
13
14
15
16
