21 Cu. Ft. French Door Refrigerator

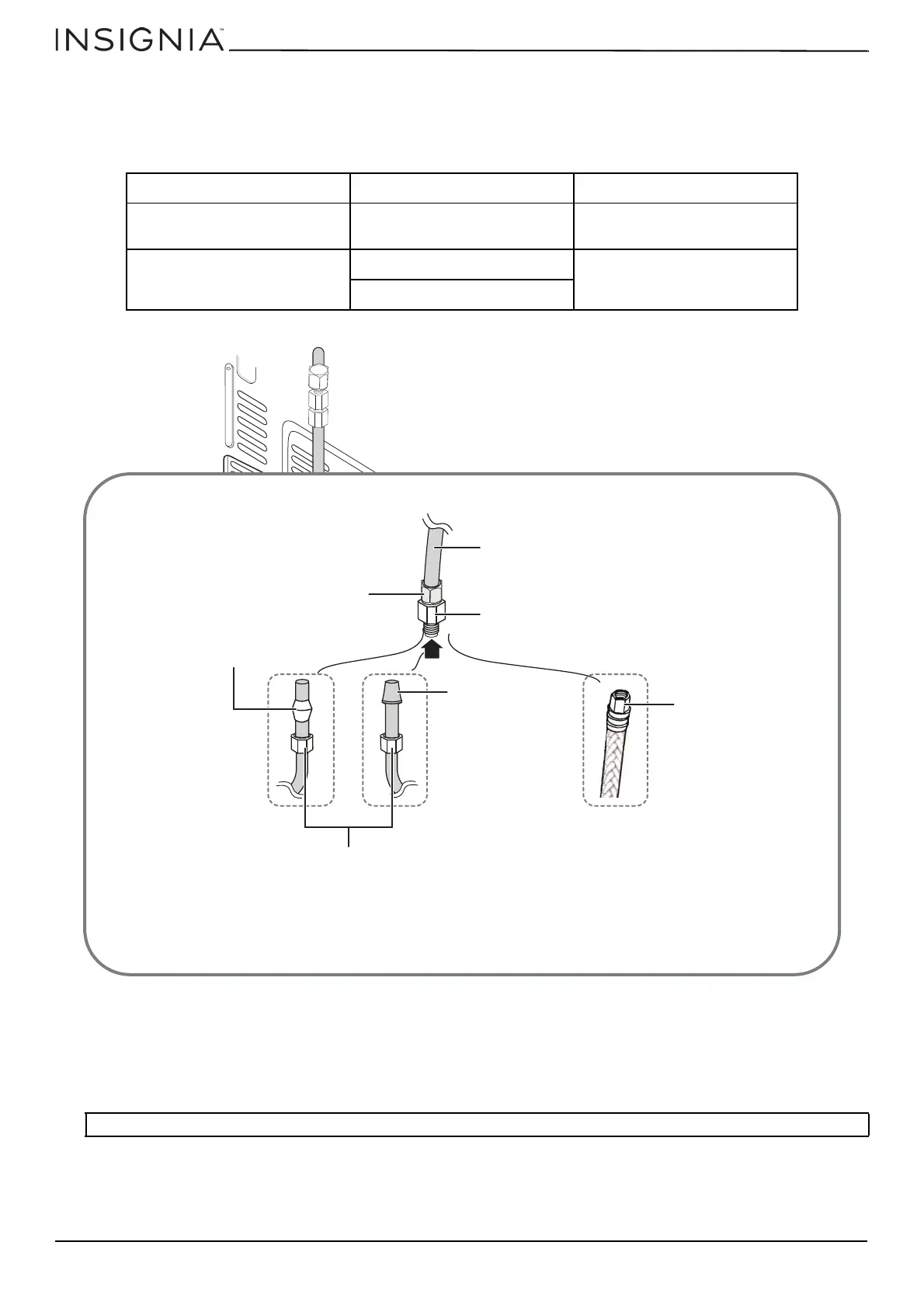

Connecting the water supply to your refrigerator
You need to purchase several items to complete this connection. You may find these items sold as a kit at your local
hardware store.
You can use plastic tubing, copper tubing, or stainless steel tubing.
1 Connect the household water supply line to the assembled compression fitting.
If you are using copper tubing, slip the compression nut (not supplied) and ferrule (not supplied) on the copper tubing
(not supplied).
OR
If you are using plastic tubing, insert the molded end (bulb) of the plastic tubing into the compression fitting.
OR
If you are using stainless steel tubing, slip the compression nut on the copper tubing (not supplied).
2 Tighten the compression nut onto the compression fitting. Do not over-tighten the compression nut.
PLASTIC TUBING COPPER TUBING STAINLESS STEEL TUBING
• 1/4" plastic tubing
molded end (bulb)
• 1/4" copper tubing • 1/4" stainless steel tubing
• 1/4" compression nut (1) • 1/4" compression nut (1) • 1/4" compression nut (1)
• Ferrule (2)
Important: Do not use without the molded end (bulb) of the plastic tubing.
Compression nut
(assembled)
Ferrule
Copper tubing (not
supplied)
Plastic tubing
(not supplied)
Stainless steel tubing
(not supplied)
Molded end (bulb)
Compression nut (1/4")
(not supplied)
Compression nut (1/4")
1/4" tube (assembled)
Compression fitting (assembled)
Refrigerator
Water supply line
To Next Page
