Connecting the power cord

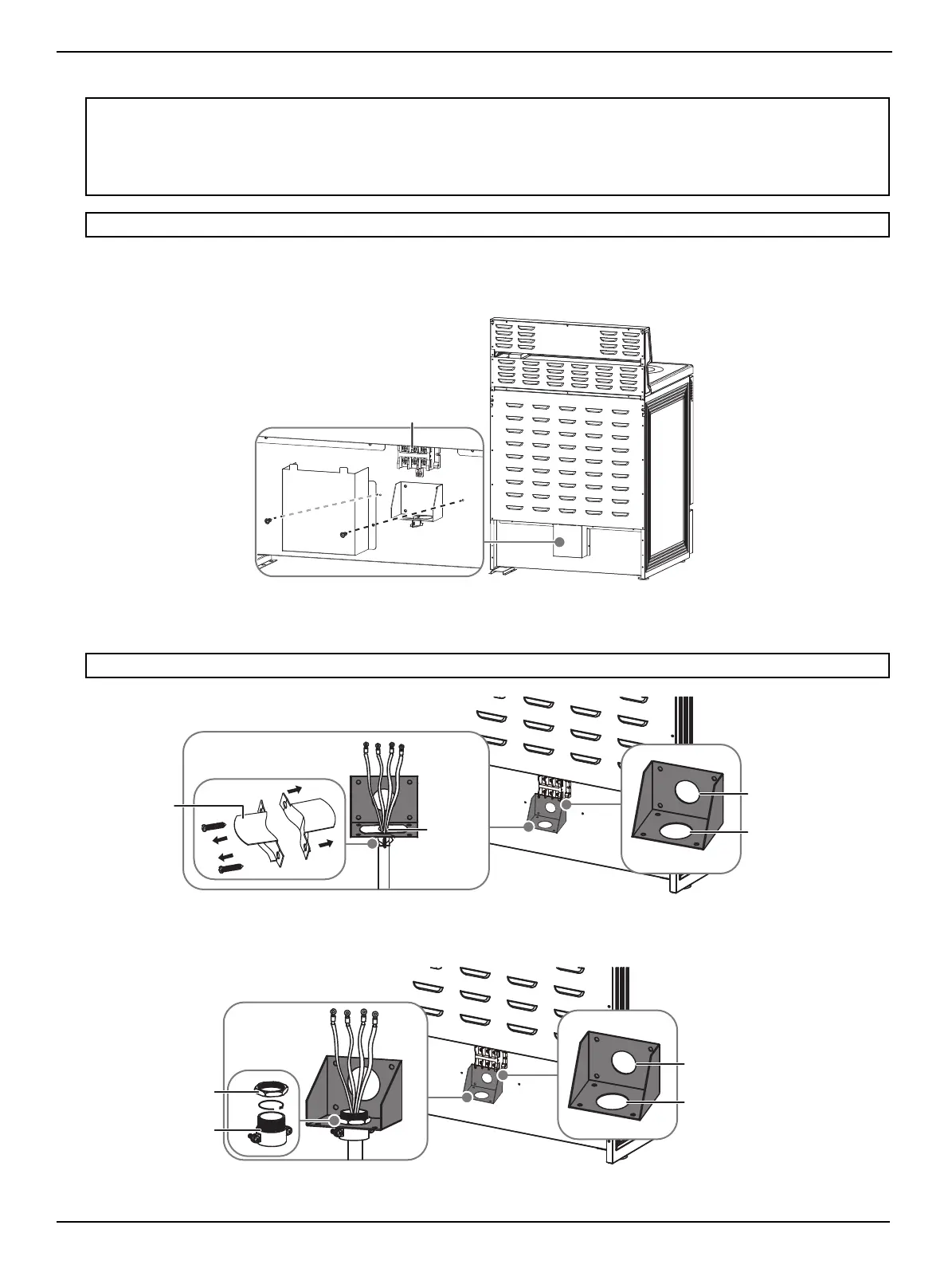

Remove the terminal block cover
1 Remove the two screws that secure the terminal block cover to the back of your range. Don’t discard the screws. You
need them to reinstall the cover.
2 For the power cord installation, hook the strain relief over the 1 3/8 in. (3.5 cm) power cord hole located below the rear
of the oven. Insert the power cord through the strain relief, then tighten the relief.
3 For the conduit installation, insert the conduit strain relief in the 1 1/8 in. (2.8 cm) conduit hole, then install the conduit
through the body of the strain relief and fasten the strain relief with its ring.
WARNING:
• Electrical ground is required on your range.
• Do not connect to the electrical supply until your range is permanently grounded.
• Your range must be connected to a grounded, metallic, permanent wiring system, or a grounding connector should be connected
to the grounding terminal or wire lead on your range.
Failure to do any of the above could result in a fire, personal injury, or electrical shock.
Note: The power cord connections described below are only applicable to NS-RGFESS2. NS-RGFESS1-C comes with a power cord.
Note: You must install the power cord with a strain relief. Attach the strain relief to the opening in the conduit connection plate.
Terminal block
Strain relief
Power cord
hole
Conduit hole
Power cord
hole
Conduit hole
Ring
Body
Power cord hole
