8 Attaching Serial ATA (SATA) Drives
The boxed desktop board package includes a Serial ATA (SATA) cable.
The cable (4-conductor) supports the Serial ATA protocol and connects a single
drive to the desktop board. Either end of the cable can be connected to the
SATA drive or the connector on the board.
For correct cable function:
1. Observe the precautions in “Before You Begin” on page 3.

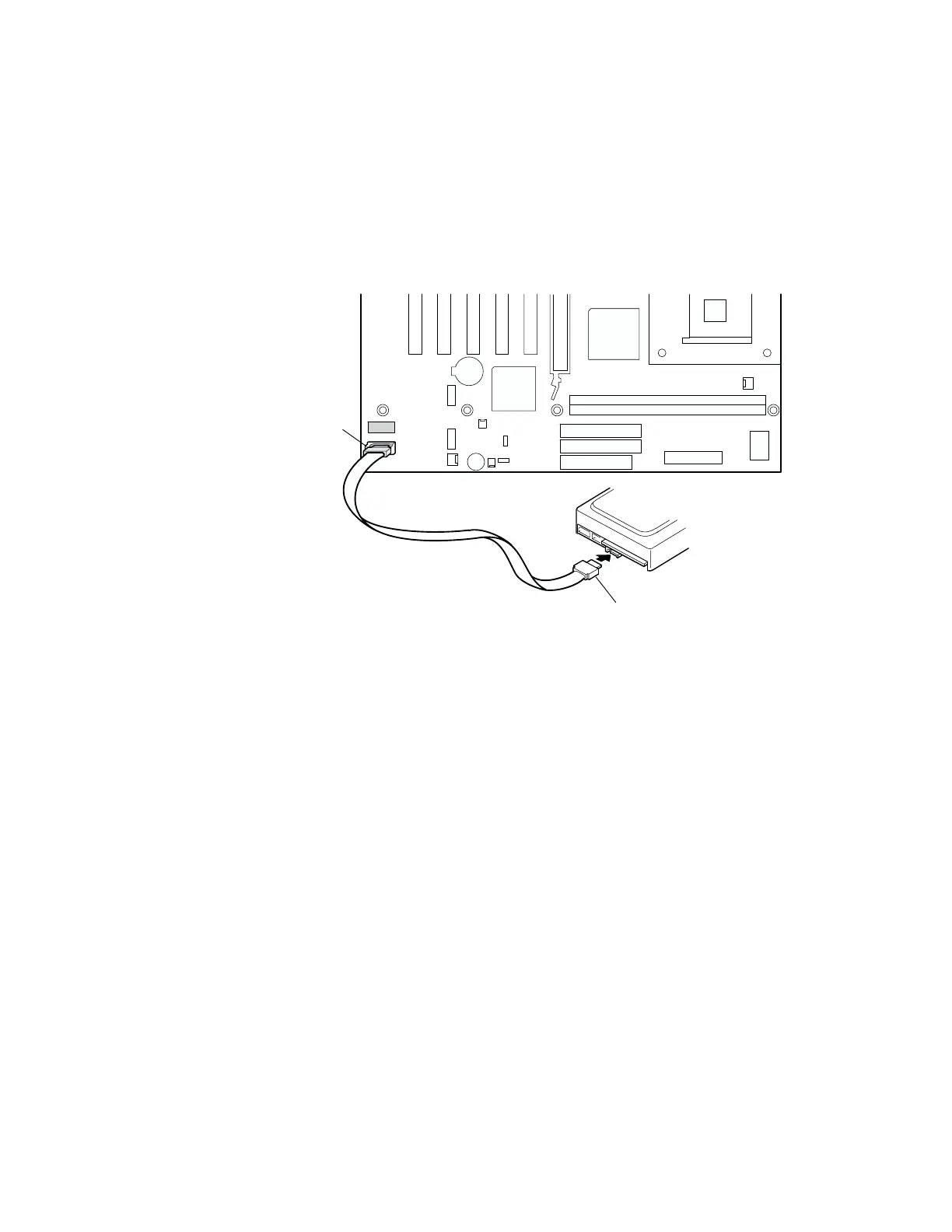

2. Attach a cable end to the connector (A) on the board.
3. Attach the other cable end (B) to the drive.
OM14823
A
B
