Intel Desktop Board D945GNT/D945GTP Product Guide
20

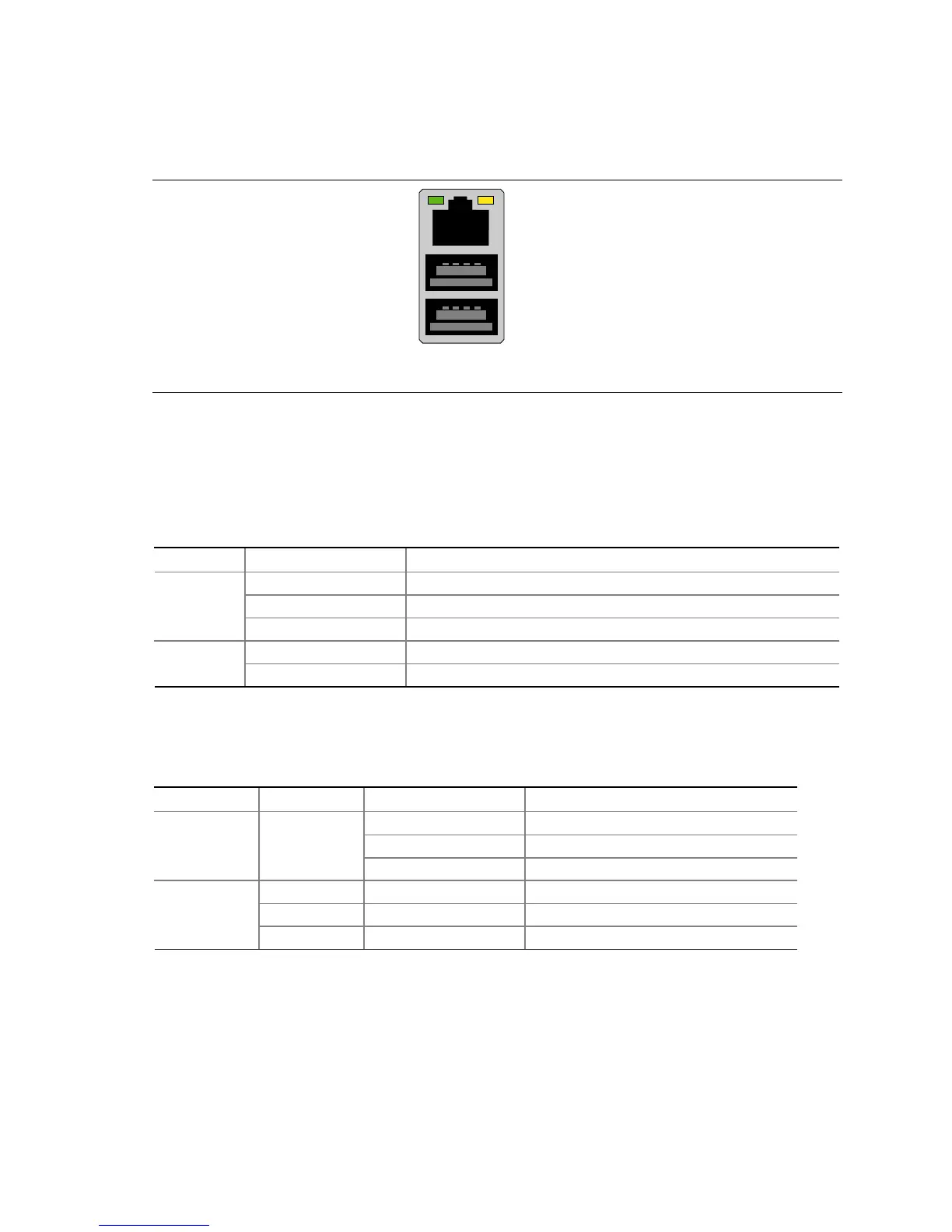

RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN port located on the back panel (see Figure 3).
OM17386
Figure 3. LAN Port LED Locations
Two LEDs are built into the RJ-45 LAN connector.
Table 7 describes the LED states when the
board is powered up and the 10/100 Ethernet LAN subsystem is operating.
Table 7. RJ-45 10/100 Ethernet LAN Connector LEDs
LED Color LED State Indicates
Off LAN link is not established Green
On LAN link is established
Blinking LAN activity is occurring
Off 10 Mbits/sec data rate is selected Yellow
On (steady state) 100 Mbits/sec data rate is selected
Table 8 describes the LED states when the board is powered up and the 10/100/1000 Gigabit
Ethernet LAN subsystem is operating.
Table 8. RJ-45 10/100/1000 Gigabit Ethernet LAN Connector LEDs
LED LED Color LED State Indicates
Left Off LAN link is not established
Green
On LAN link is established
Blinking LAN activity is occurring
N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
Right
Yellow On 1000 Mb/s data rate
