Intel Desktop Board D945PLNM Product Guide
32

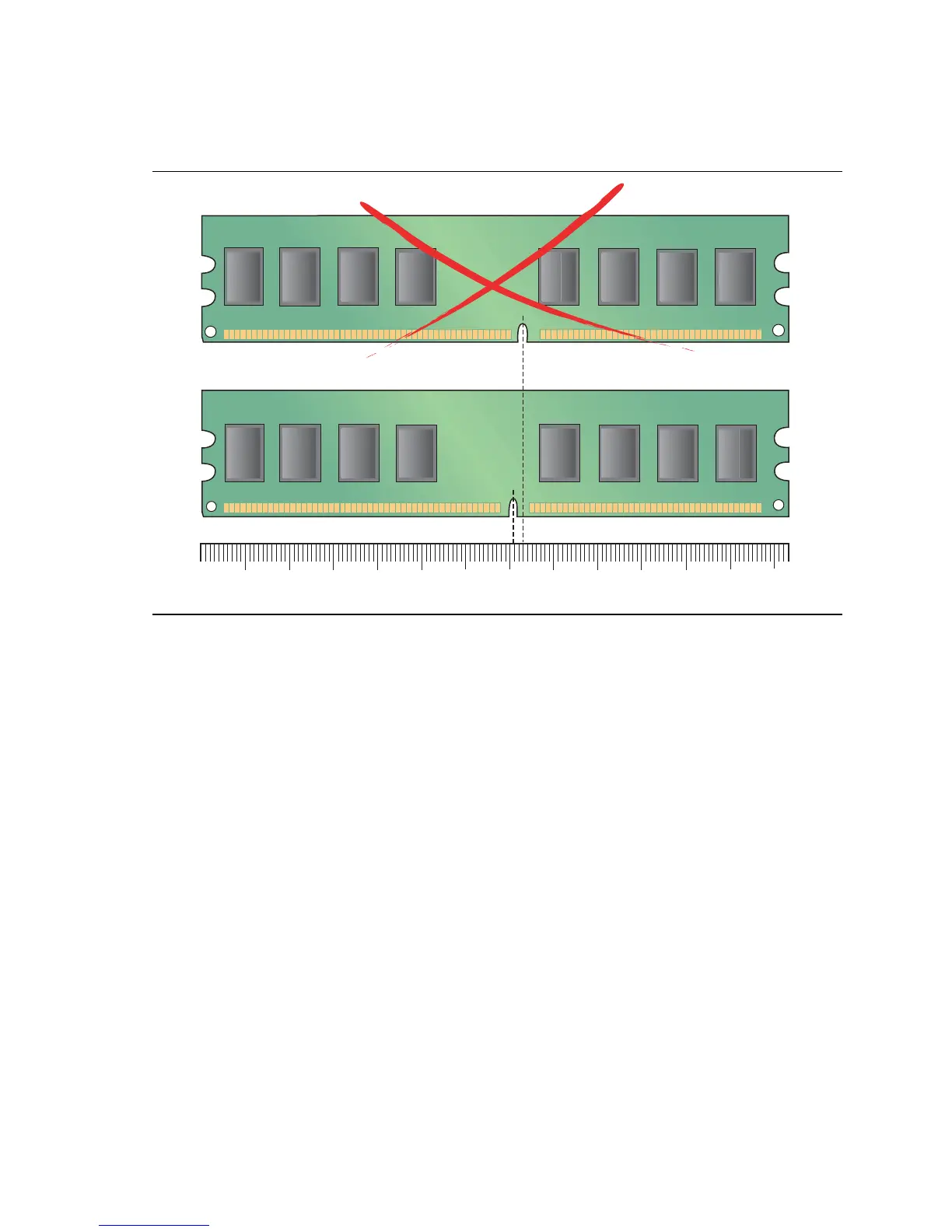

To make sure you have the correct DIMM, place it on the illustration of the DDR2 DIMM in
Figure 14. All the notches should match with the DDR2 DIMM.
OM19085
DDR
DDR2
mm12345678910111213
Figure 14. Use DDR2 DIMMs

Table of Contents

Other manuals for Intel D945PLNM

Preview: Specification
Specification86 pages
Question and Answer IconNeed help?

Do you have a question about the Intel D945PLNM and is the answer not in the manual?

Intel D945PLNM Specifications

General IconGeneral
Form FactorMicro ATX
Socket TypeLGA 775
Memory TypeDDR2
Maximum Memory Supported2 GB
PCI Express x16 Slots1
PCI Slots3
ChipsetIntel 945PL Express
Supported CPUIntel Pentium 4, Pentium D, Celeron D
Memory Slots2
IDE1 x ATA 100/66/33
SATA4 x SATA 3Gb/s
LAN10/100 Mbps
USB Ports8 (4 on back panel, 4 via headers)
