Technical Reference
41
2.2.1 Back Panel Connectors

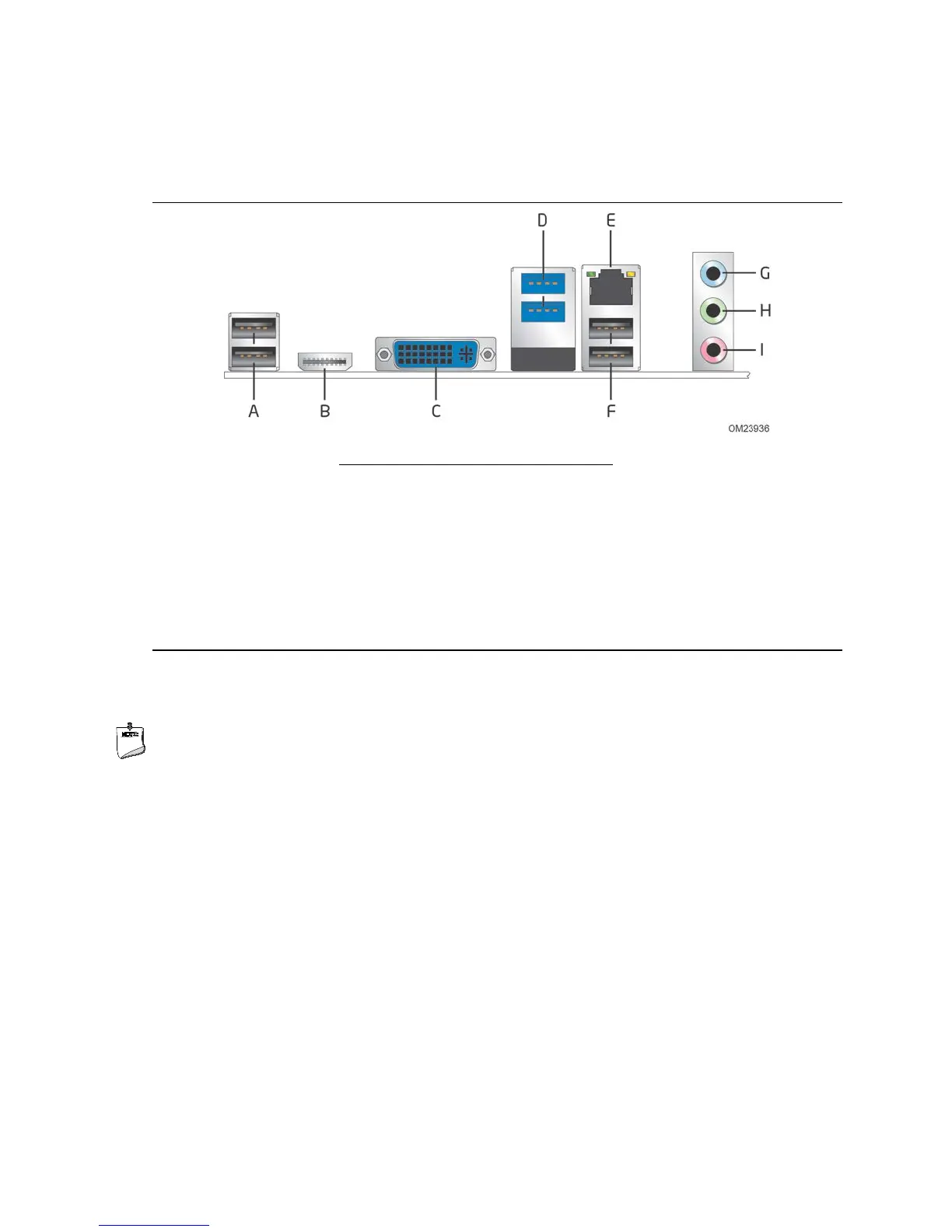

Figure 8 shows the location of the back panel connectors for the board.
Item Description
A USB 2.0 connectors
B HDMI connector
C DVI-I connector
D USB 3.0 connectors
E LAN port
F USB 2.0 connectors
G Line–in (surround)
H Line-out (front speakers)
I Mic–in (center/sub)
Figure 8. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
