Intel Desktop Board DB85FL Technical Product Specification
42
2.2.2 Component-side Connectors and Headers

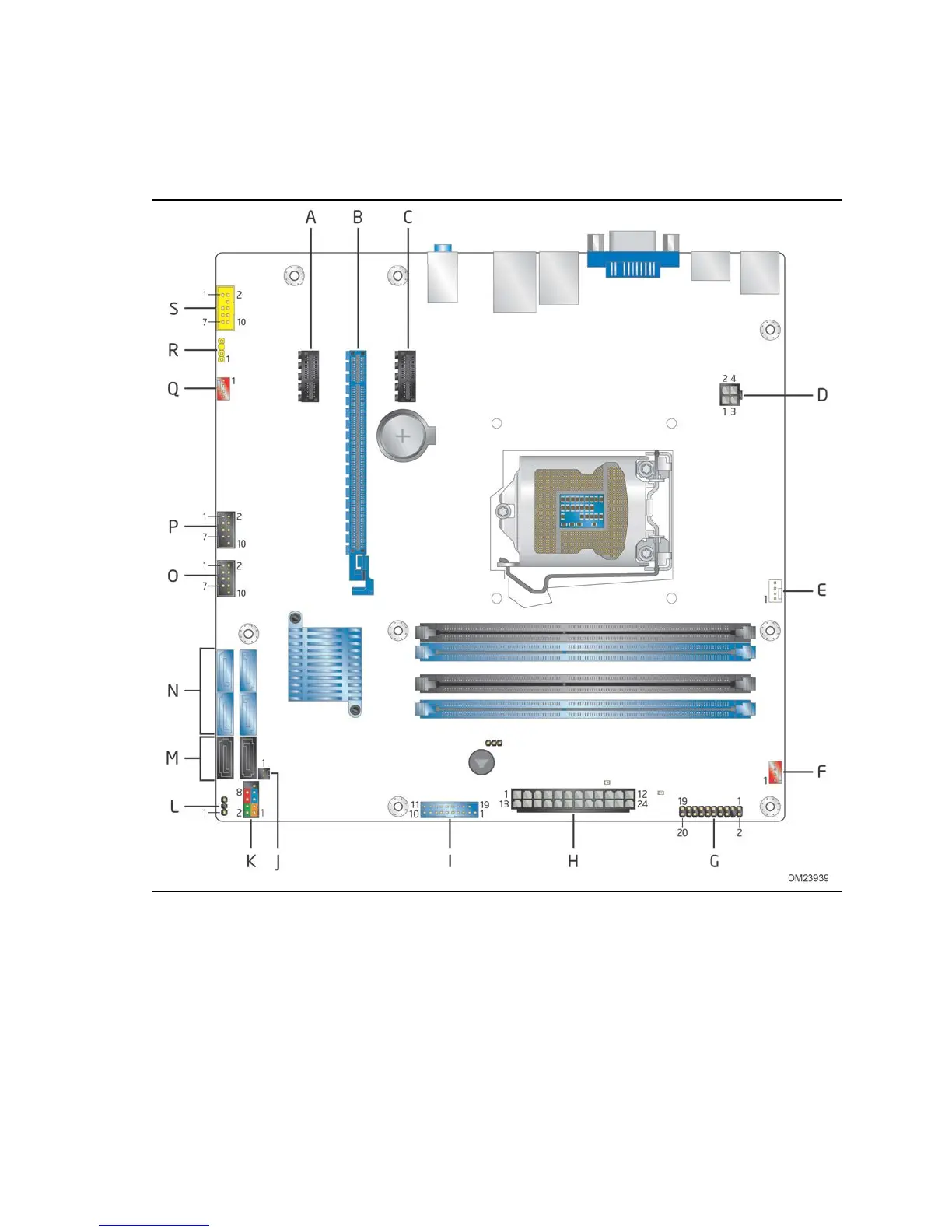

Figure 9 shows the locations of the component-side connectors and headers.
Figure 9. Component-side Connectors and Headers
