Intel DB85FL User Manual

Technical Reference
51
2.3 BIOS Security Jumper
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the
board could be damaged.
Figure 13 shows the location of the jumper. The 3-pin jumper determines the BIOS
Security program’s mode. Table 28 describes the jumper settings for the three
modes: normal, lockdown, and configuration.

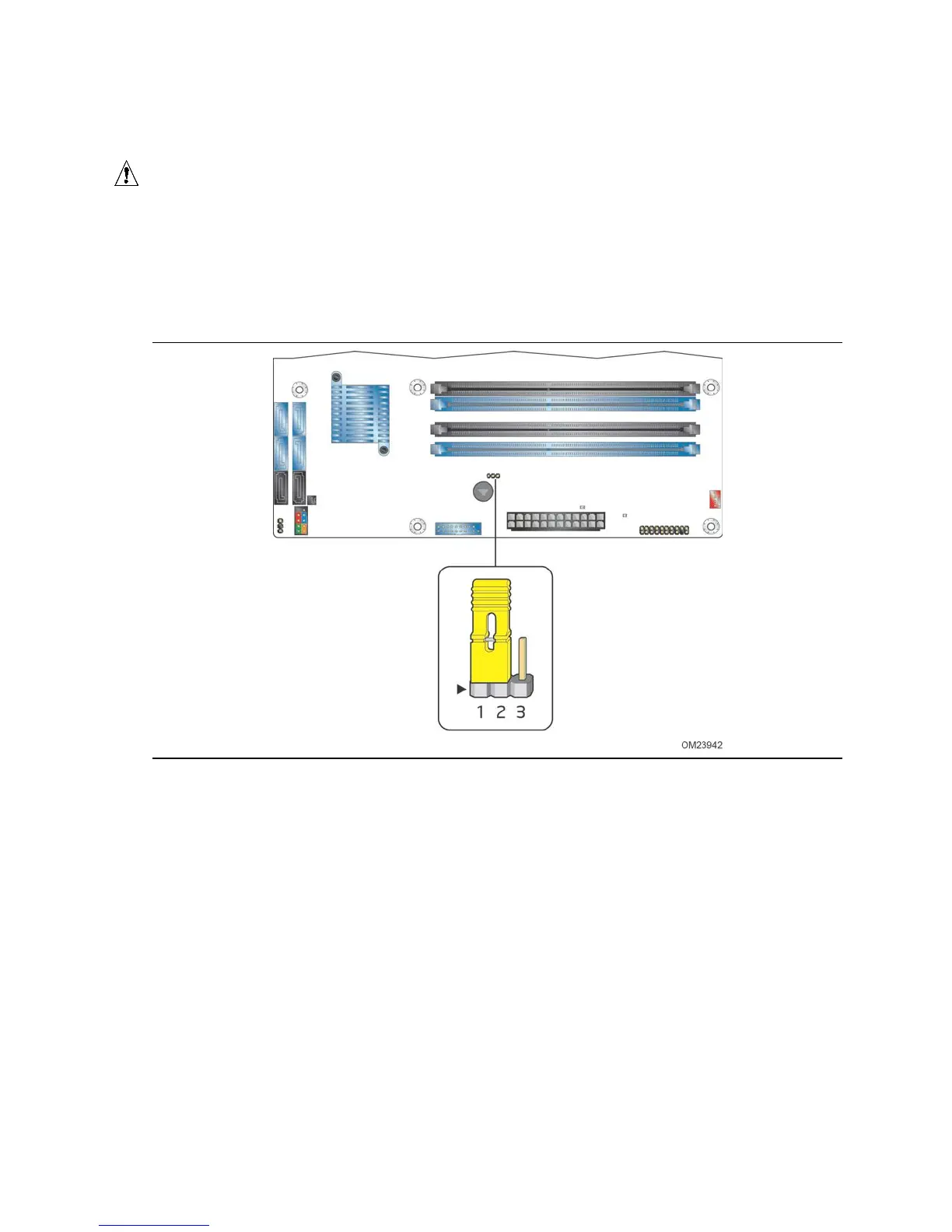

Figure 13. Location of the Jumper

Intel DB85FL Specifications

General

Form Factor	Micro ATX
Chipset	Intel B85
Socket	LGA 1150
Maximum Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
PCI Express x1	2
PCI Slots	1
SATA Ports	4 x SATA 6Gb/s, 2 x SATA 3Gb/s
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Memory Standard	DDR3 1600/1333 MHz
USB Ports	4 x USB 3.0, 8 x USB 2.0
Video Outputs	HDMI, DVI-D, VGA
LAN	Intel I217V
Audio	Realtek ALC892
