Intel Desktop Board DG45ID Product Guide
38
Installing DIMMs

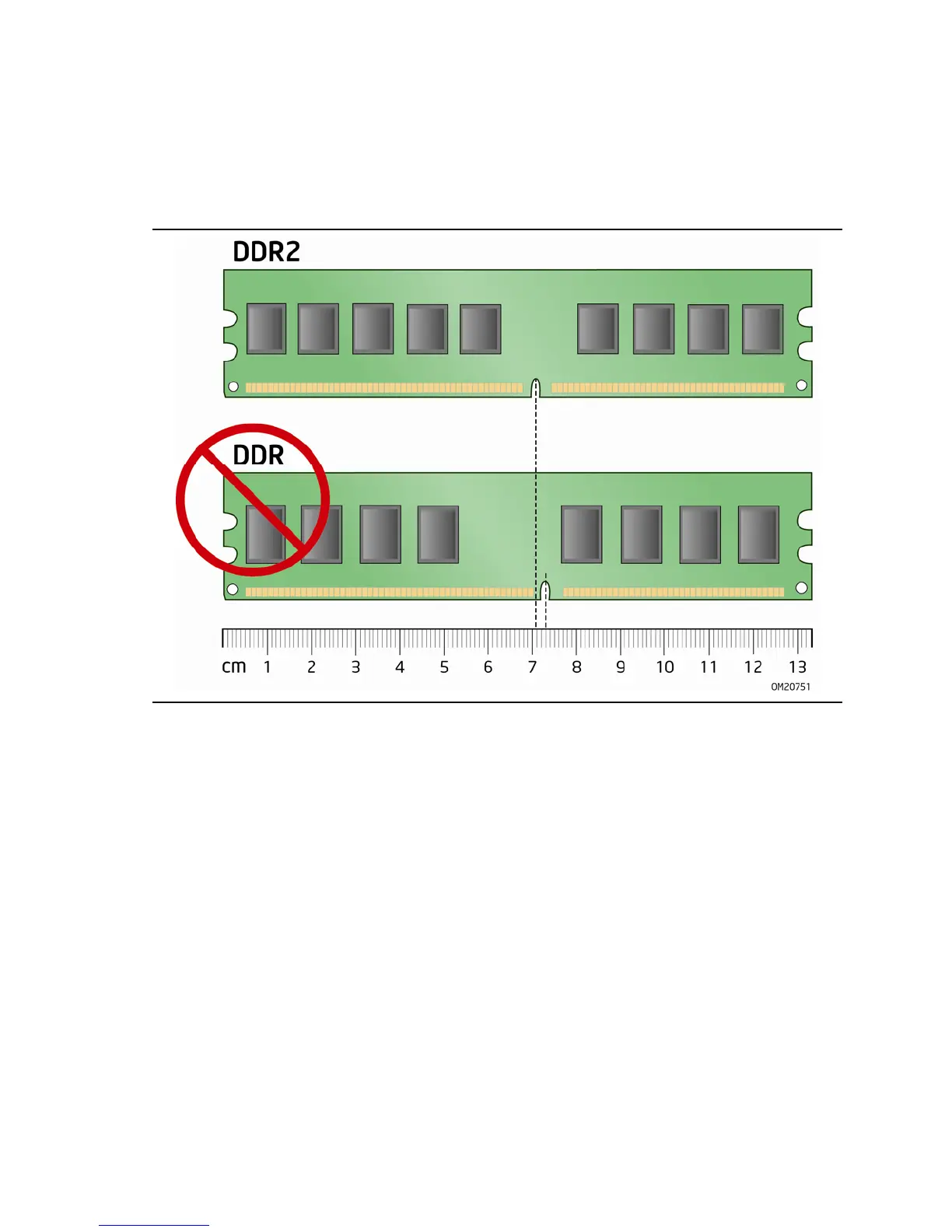

To make sure you have the correct DIMM, place it on the illustration of the DDR2
DIMM in Figure 16. All the notches should match with the DDR2 DIMM.
Figure 16. Use DDR2 DIMMs
