Intel Desktop Board DG45ID Product Guide
44
Connecting to Internal Headers and
Connectors
Before connecting cables to the internal headers and connectors, observe the
precautions in “Before You Begin” on page 27. Figure 21 shows the location of the
internal headers and connectors
.
Item Description Item Description
A HD Audio Link G
Front panel CIR receiver
B S/PDIF H
Alternate front panel power LED
C Audio I
Front panel
D Back panel CIR emitter
J USB 2.0 (3)
E Serial K IEEE 1394a
F Chassis intrusion

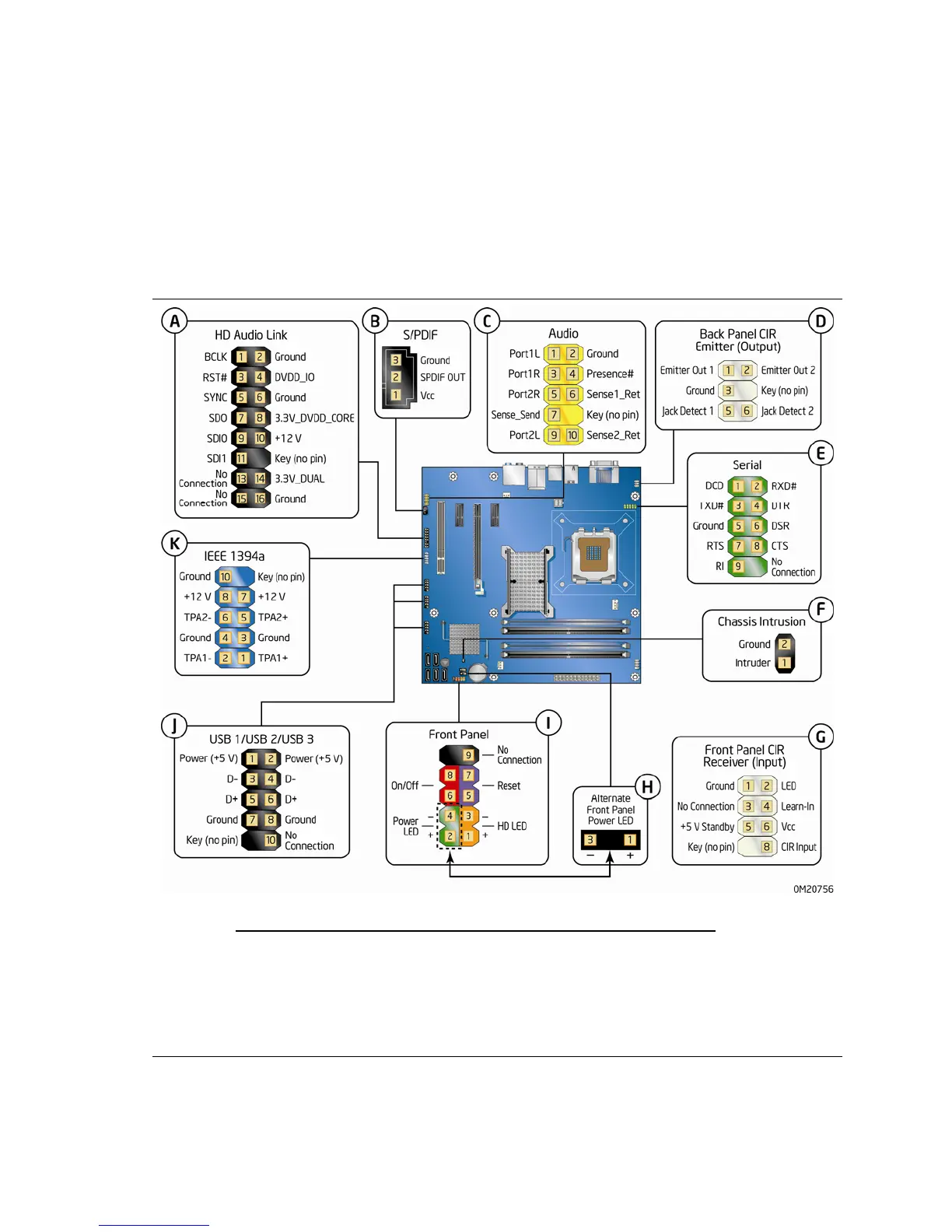

Figure 21. Internal Headers and Connectors
