Installing and Replacing Desktop Board Components

Installing the I/O Shield

The desktop board comes with an I/O shield. When installed in the chassis, the shield

blocks radio frequency transmissions, protects internal components from dust and

foreign objects, and promotes correct airflow within the chassis.

Install the I/O shield before installing the desktop board in the chassis. Place the

shield inside the chassis as shown in

Figure 4. Press the shield into place so that it fits

tightly and securely. If the shield does not fit, obtain a properly sized shield from the

chassis supplier.

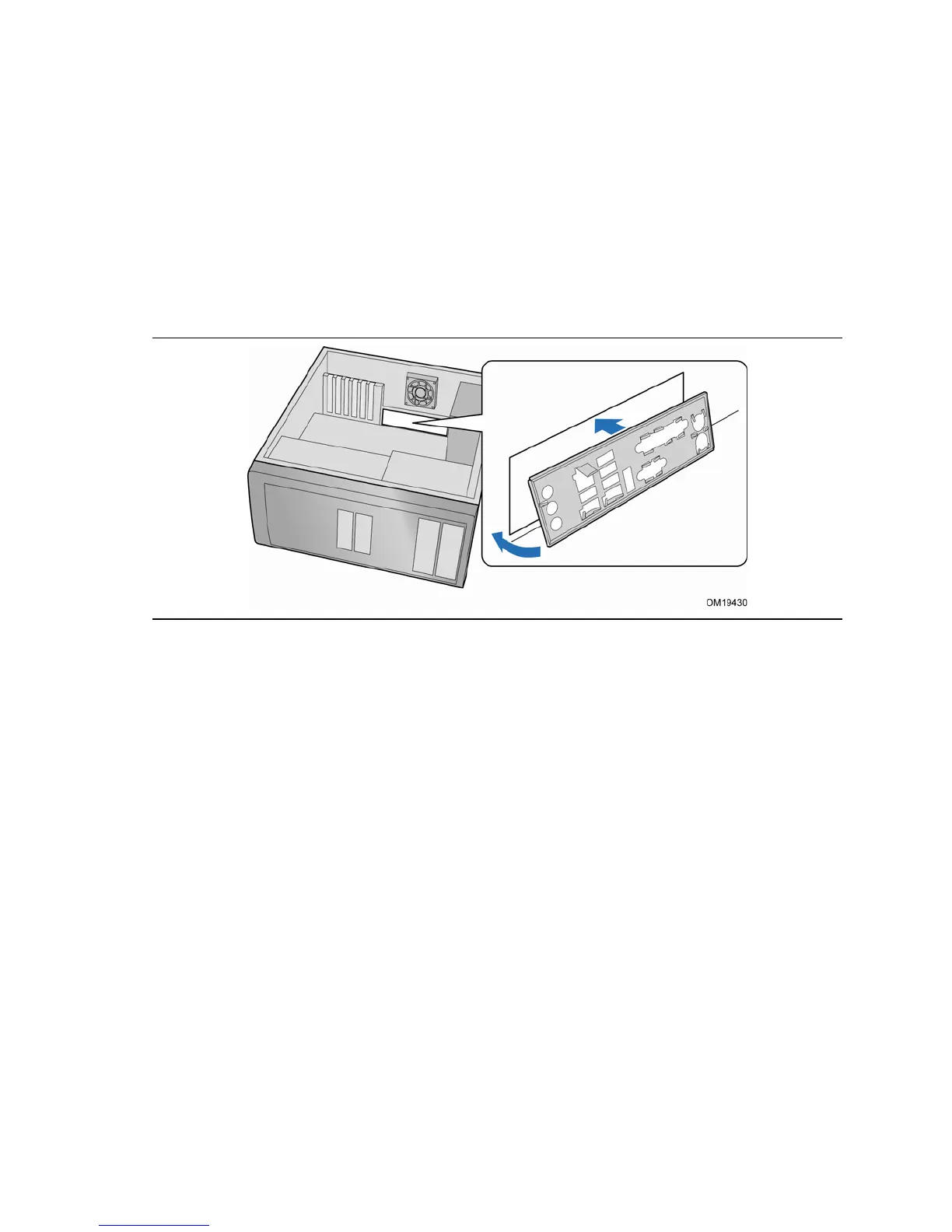

Figure 4. Installing the I/O Shield
