Intel Desktop Board DH61BF Technical Product Specification
22
1.10.2 Audio Headers and Connectors
The board contains audio connectors and headers on both the back panel and the
component side of the board. The component-side audio header is a yellow 2 x 5-pin
header that provides headphone and mic in signals for front panel audio connectors.
For information about
Refer to
The locations of the front panel audio header Figure 9, page 39
The signal names of the front panel audio header Table 12 and Table 13, page 41
The back panel audio connectors
Section 2.2.1, page 38
1.10.2.1 Analog Audio Connectors

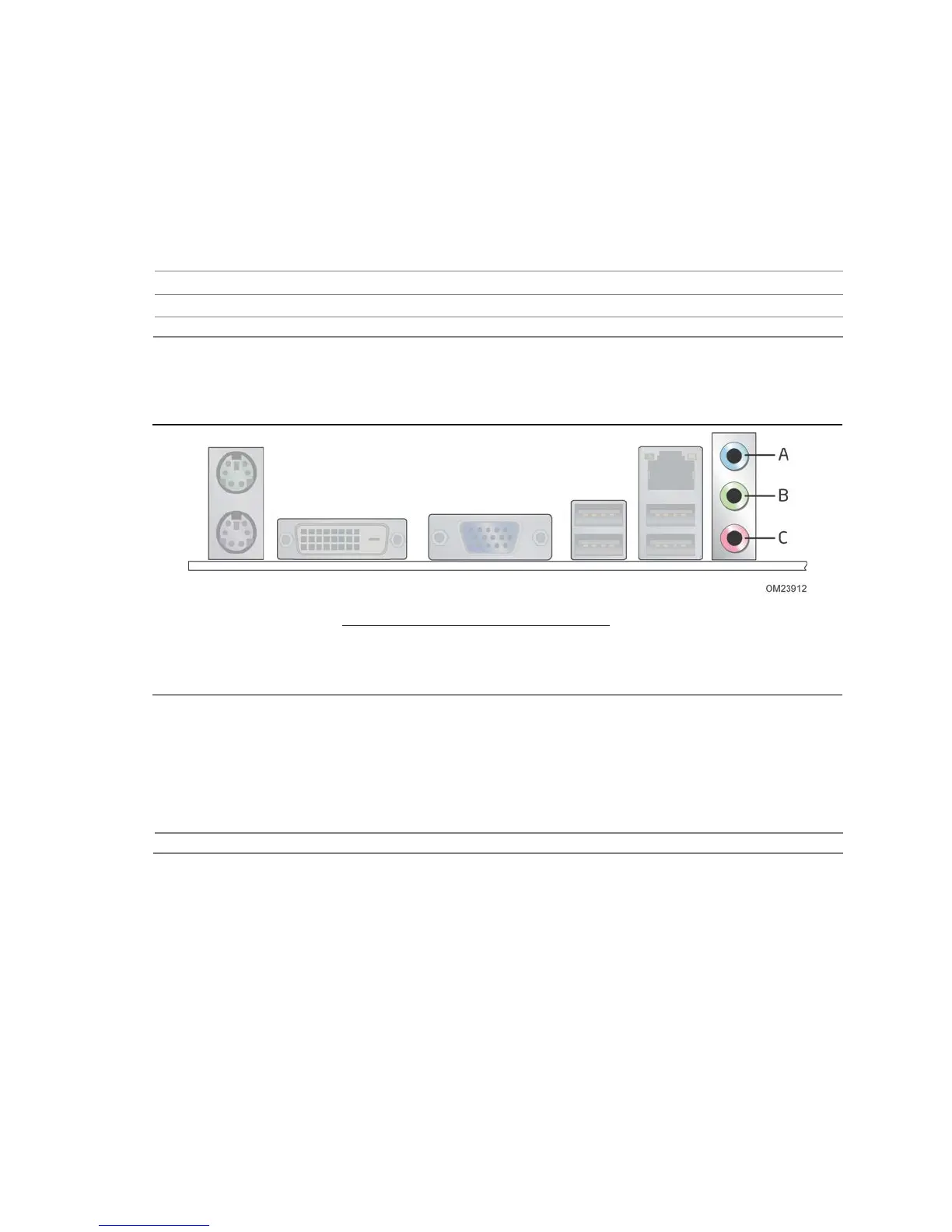

The available configurable back panel audio connectors are shown in Figure 4.
Item Description
A Line in
B Line out/front speakers
C Mic in/side surround
Figure 4. Back Panel Audio Connector Options
The back panel audio connectors are configurable through the audio device drivers.
For information about
Refer to
The back panel audio connectors
Section 2.2.1, page 38
The front panel headphone output is supported using a separate audio channel pair
allowing multi-streaming audio configurations such as simultaneous 5.1 surround
playback and stereo audio conferencing (through back panel speakers and a front
panel headset, respectively).

Intel DH61BF Specifications

General

Form Factor	microATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports	4 x USB 2.0
SATA Ports	4
Video Outputs	VGA, DVI-D
BIOS	UEFI
