- Antenna Angle: displays and sets current antenna’s absolute and
relative AZ (azimuth) position, EL (elevation) position and polarization
(between Linear and Circular). You can move antenna azimuth and
elevation position and LNB Pol angle by using the arrows or inputting a
value to nd the desired satellite manually.

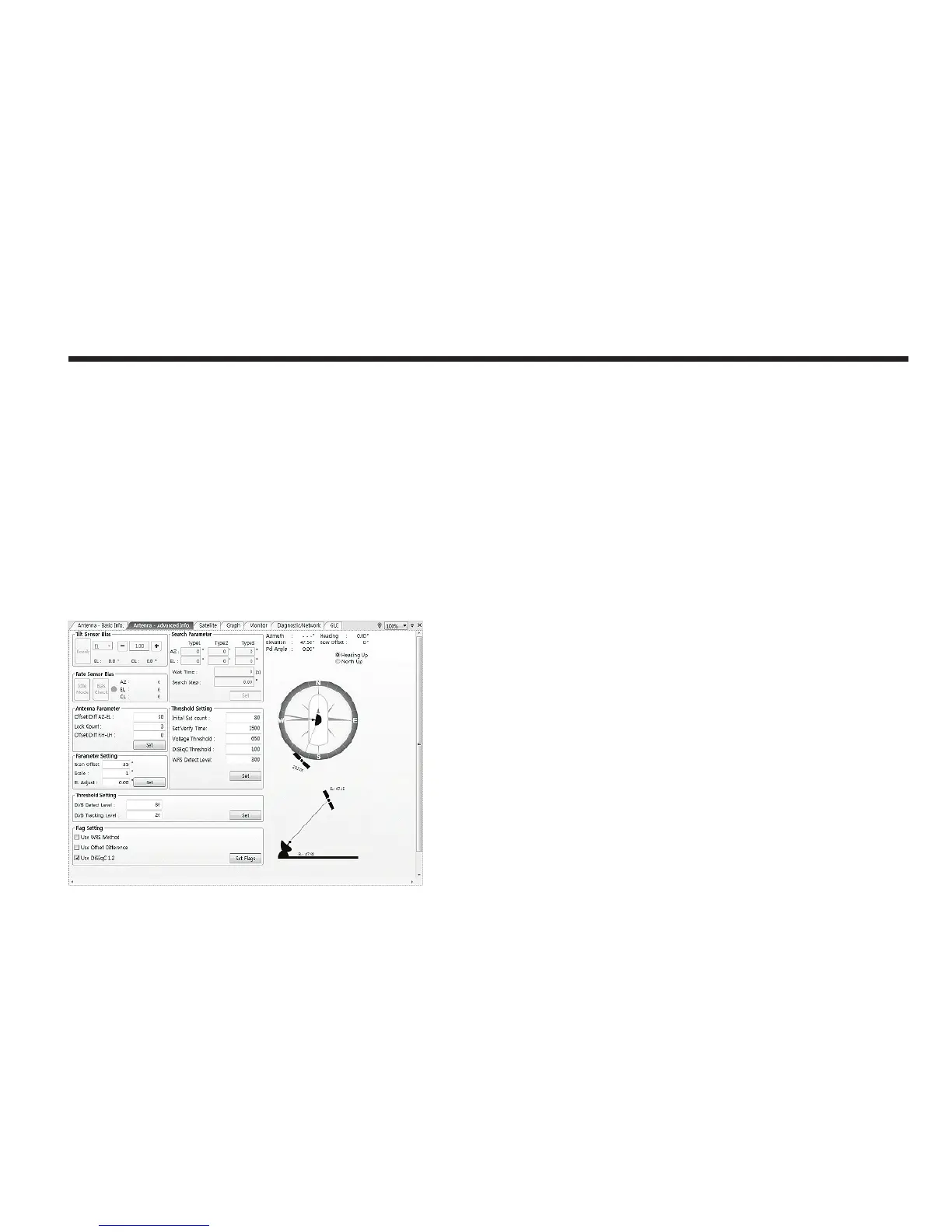

2. Antenna – Advanced Info.
This view provides information on Parameter Setting, Threshold Setting,
and Flag Setting.
-Tilt Sensor Bias: not used on i-series.
- Rate Sensor: not used on i-series
- Antenna Parameter: used to set the antenna parameter settings.
• Offset Diff AZ-EL: The offset AZ-EL is to offset the angle difference
between Azimuth and Elevation.
• Lock Count: The Lock Count is to set the number of checking signal
lock.
• Offset Diff RH-LH: The offset RH-LH is to offset the signal difference
between RHCP and LHCP.
- Parameter Setting: used to set the control parameter settings.
• Scan Offset: The scan offset is to offset the angle difference between
the black marker on the sub-reector and the optical sensor.
• Scale: The scale is to control the tracking speed while antenna is
tracking the satellite.
• EL Adjust: The elevation adjustment is to offset the angle difference
between the mechanical elevation angle and actual elevation angle.
- Threshold Setting: set the threshold level for detecting and tracking the
satellite signal.
• DVB Detect Level: displays and sets signal detection threshold level
when DVB tracking mode is in use.
• DVB Tracking Level: displays and sets signal
