POOL INLET - NOZZLE & PLUNGER VALVE SET-UP
SSEETT--UUPP IINNSSTTRRUUCCTTIIOONNSS
5
7
8.1
8.2
INSIDE
LINER
WALL
POOL
9
2
1
1
2
1
2
6
13 14 15
INSIDE
LINER WALL
12
WATER
FLOW

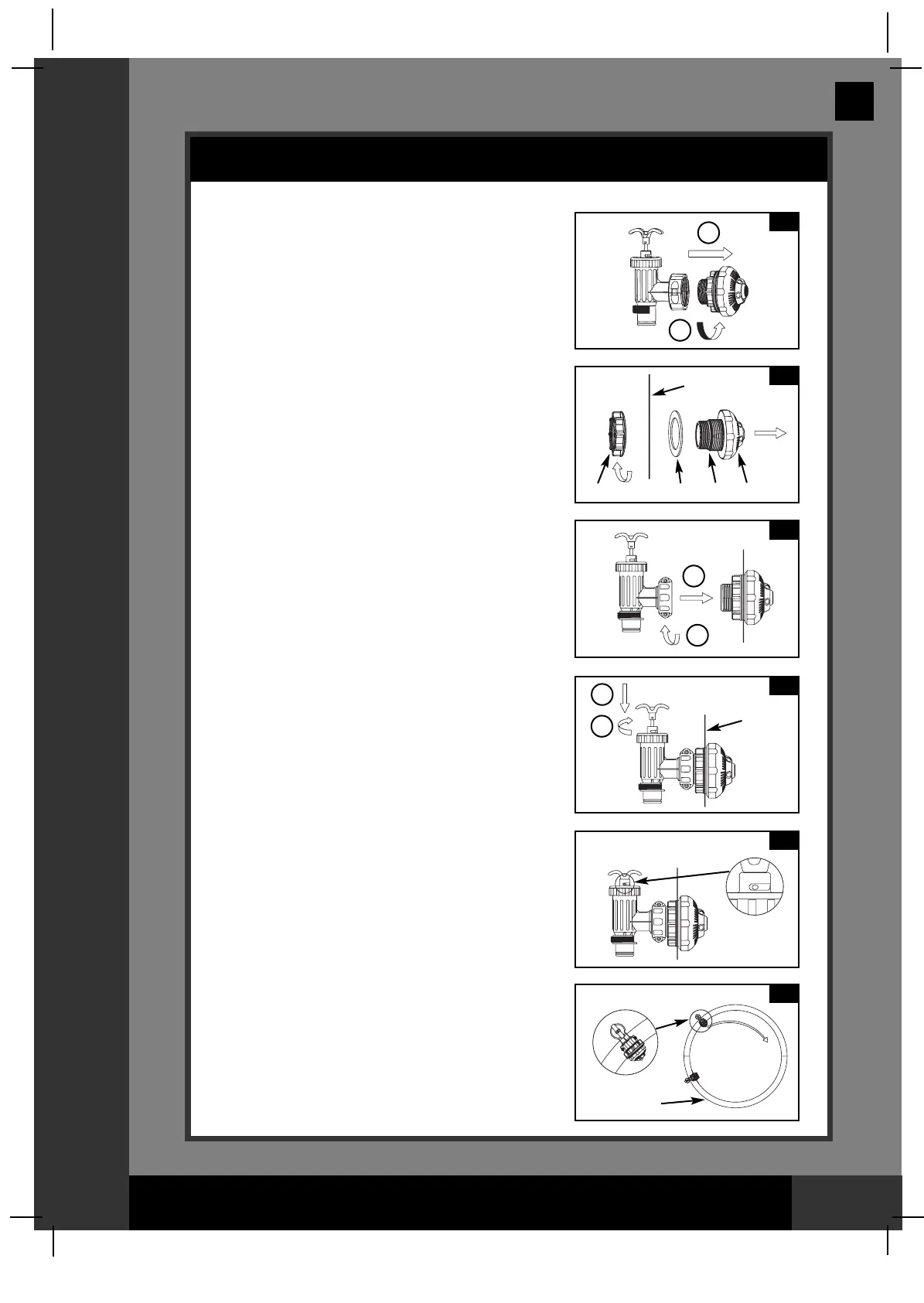

1. Grasp the nozzle and plunger valve
mechanism.
2. In a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector (14). Be careful not to
lose the step rubber washer (11). Place
the plunger valve on the ground in a safe
place (see drawing 5).
3. In a counter-clockwise motion unscrew
the strainer nut (12) from the threaded
connector (14). Leave the flat washer (13)
on the connector (14).
4. Install the nozzle and plunger valve at the
upper position of pool inlet. From the inside
of the pool liner insert the connector (14)
into one of the pre-cut holes with the
washer remaining on the connector to be
placed against the inside of the liner wall.
5. With the flat side of the strainer nut (12)
facing the outside wall of the liner in a
clockwise motion screw the strainer nut (12)
back onto the threaded connector (14) (see
drawing 6). Before assembly, lubricate the
threads with a petroleum jelly.
6. Finger tighten the adjustable pool inlet
nozzle (15) and the strainer nut (12) onto
the threaded connector (14).
7. Grasp the plunger valve assembly. Make
sure the step washer (11) is in place.
8. In a clockwise motion screw the plunger
valve union back onto the threaded
connector (14) (see drawing 7).
9. Examine the plunger valve to see if the
handle is pushed fully down to the "0/1"
position. If not, then grasp the handle at
the top and push down turning the handle
in a clockwise direction until the plastic
protruding notch anchors in the "0/1"
position. This will prevent water from
flowing out during filling (see drawings 8.1
& 8.2).
10. Adjust the direction of nozzle head pointing
away from the pool outlet for a better
circulation result (see drawing 9).
11. The pool liner is now ready to fill with
water. Consult the above-ground-pool
owner’s manual for filling instructions.
