Intex Krystal Clear C2500 User Manual

(110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022
110
GS
SAVE THESE INSTRUCTIONS
English
Page 6

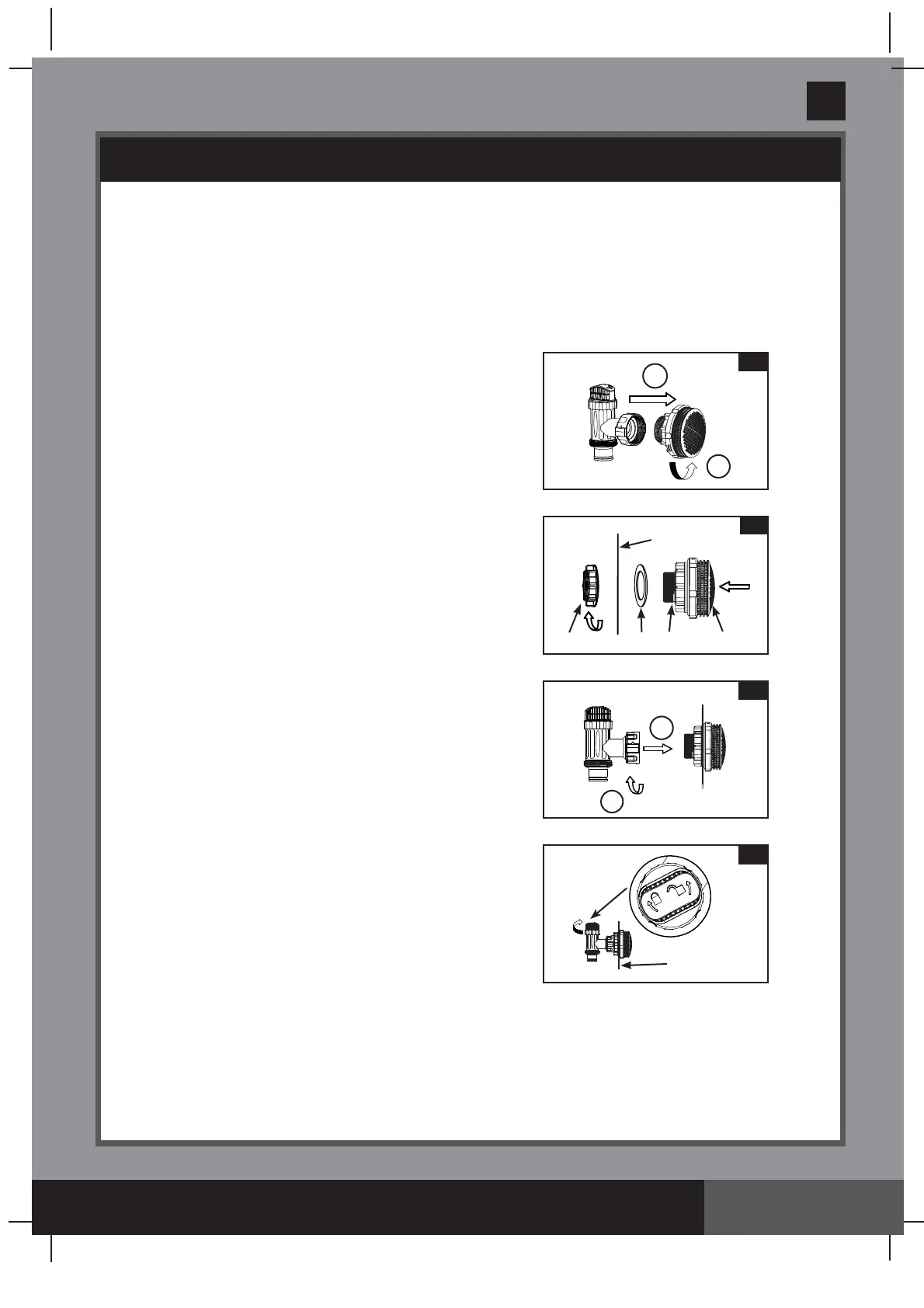

1.
In a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector
(14) (see drawing 1)
.
Be careful not to lose the step rubber
washer
(22)
. Place the plunger valve on
the ground in a safe place.
2.
In a counter-clockwise motion unscrew
the strainer nut
(12)
from the threaded
connector
(14)
. Leave the flat washer
(13)
on the connector
(14)
.
3.
Install the strainer and plunger valve at the
lower position of pool outlet (marked"+").
From the inside of the pool liner insert
the connector
(14)
into one of the pre-cut
holes with the washer remaining on the
connector to be placed against the inside
of the liner wall.
4.
Before assembly, lubricate the threads with
a petroleum jelly. Then, with the flat side of
the strainer nut
(12)
facing the outside wall
of the liner in a clockwise motion screw the
strainer nut
(12)
back onto the threaded
connector
(14) (see drawing 2)
.
5.
Finger tighten the strainer nut
(12)
onto the
threaded connector
(14)
.
6.
Grasp the plunger valve assembly. Make
sure the step washer
(22)
is in place.
7.
In a clockwise motion screw the plunger
valve union back onto the threaded
connector
(14) (see drawing 3)
.
8.
In a clockwise motion turn the plunger
valve handle to close position. Ensure the
plunger valve is securely closed. This will
prevent water from flowing out during
filling of the pool
(see drawing 4)
.
The strainer grid prevents large objects from jamming and/or damaging the filter pump.
The plunger valve assembly prevents water from flowing into the filter pump while the
filter cartridge is being placed or cleaned. If your pool has inflatable top ring, install the
strainer, nozzle and plunger valve before inflating the pool liner top ring. The parts
numbers here onward, refer to the parts depicted in the Parts List section of this manual.
To install, do the following:
POOL OUTLET
-
STRAINER & PLUNGER VALVE SETUP
(
OPTIONAL
)
1
2
1
3
1
2
4
INSIDE
LINER WALL
12
2
INSIDE
LINER WALL
14 17
13
