OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS
1. Make sure the filter pump is switched off. The switch is located on the motor
housing.
2. Connect the power cord to a GFCI protected electrical outlet.
3. Grasp a plunger valve handle. Turn the handle counter-clockwise, pull up until
it stops, and then turn it clockwise until the metal protruding notch anchors in
the "0/1" position. Repeat for the second plunger valve. This opens the valves,
allowing water to flow into the filter pump.
4. With water flowing into filter pump, the water pressure will allow the air trapped
inside to escape from the air release valves (2 & 7). When all the air has
escaped water will flow out of the valves (2 & 7). When this occurs gently finger
tighten the valves (2 & 7) in a clockwise direction.
5. To operate the filter pump on “TIMER” mode:
A. Set the timer dial to the desired operating hours. See operation time table.
See Fig. 10
B. Turn on the pump by pressing the switch to “ ” position, the filter pump is
now filtering the water and will stop after the operating hours are
completed. The built-in timer will now operate for the number of hours
selected at the same time each day.
C. Operating hours can be re-adjusted if necessary. Follow step A – B.
To operate the filter pump manually (without the “TIMER” mode):
A. Turn on the pump by pressing the switch to “I” position, the filter pump is
now filtering the water.
B. To turn off the pump, press the switch to “O” position.
To prevent air lock, open the lower plunger valve (connected inlet hose)
first and then the upper plunger valve (connected outlet hose). Open the air
release valves, wait until water starts to flow out of the air release valves,
close air release valves.
IMPORTANT
Risk of electric shock. Connect this product only to a grounding type
receptacle protected by a ground-fault circuit interrupter (GFCI) or residual
current device (RCD). Contact a qualified electrician if you cannot verify
that the receptacle is protected by a GFCI/RCD. Use a qualified electrician
to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a
portable residual current device (PRCD).
WARNING
OPERATING INSTRUCTIONS
2
4
6
8
12
ON
OFF
TIMER

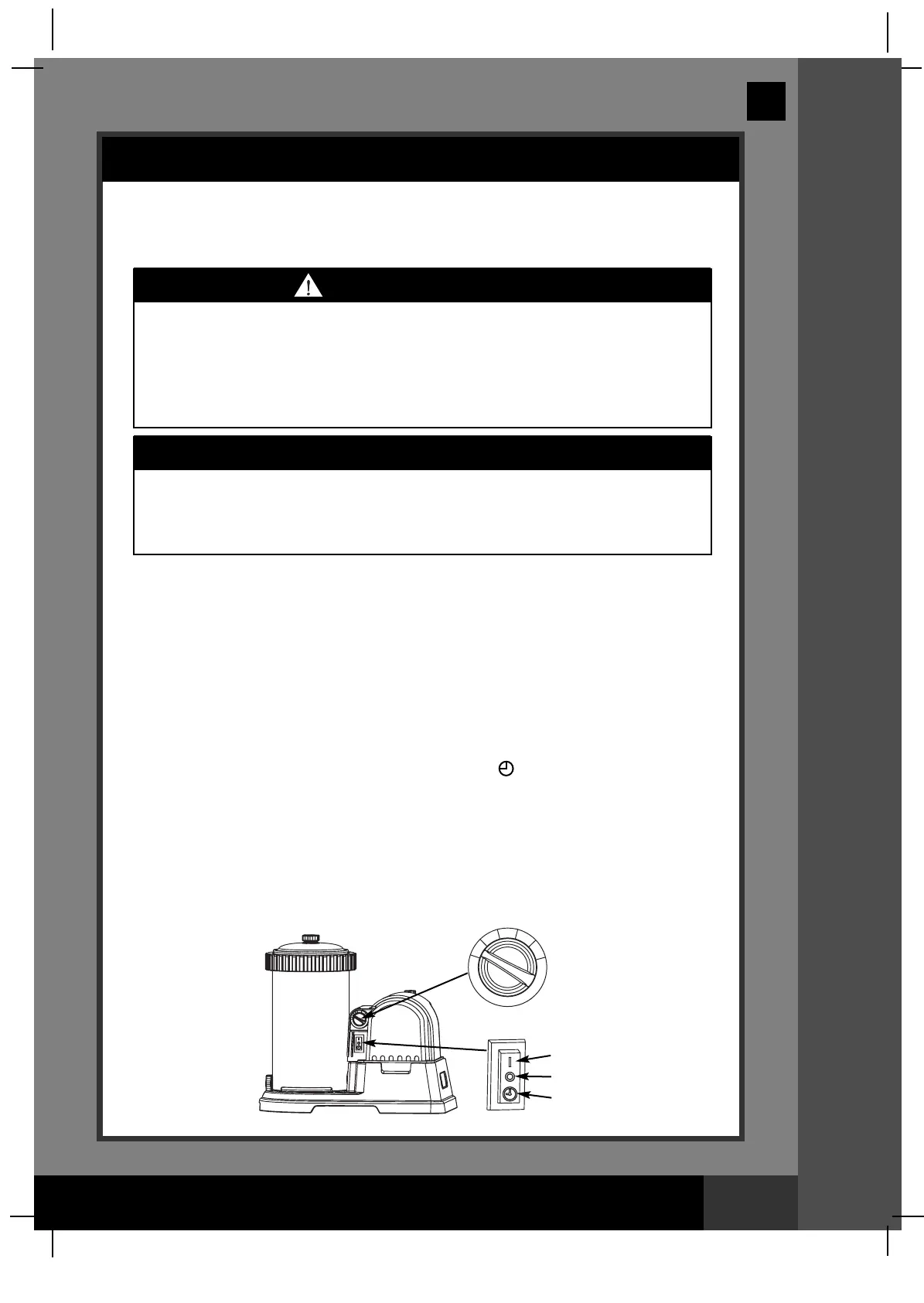

FIG 10
TIMER DIAL (HOURS)
