SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
1. Grasp the strainer and plunger valve
mechanism.
2. In a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector (14) (see drawing 1).Be
careful not to lose the step rubber
washer (11). Place the plunger valve on the
ground in a safe place.
3. In a counter-clockwise motion unscrew
the strainer nut (12) from the threaded
connector (14). Leave the flat washer (13)
on the connector (14).
4. Install the strainer and plunger valve at the
lower position of pool outlet (marked"+").
From the inside of the pool liner insert
the connector (14) into one of the pre-cut
holes with the washer remaining on the
connector to be placed against the inside
of the liner wall.
5. Before assembly, lubricate the threads with
a petroleum jelly. Then, with the flat side of
the strainer nut (12) facing the outside wall
of the liner in a clockwise motion screw the
strainer nut (12) back onto the threaded
connector (14) (see drawing 2).
6. Finger tighten the strainer nut (12) onto the
threaded connector (14).
7. Grasp the plunger valve assembly. Make
sure the step washer (11) is in place.
8. In a clockwise motion screw the plunger
valve union back onto the threaded
connector (14) (see drawing 3).
9. Examine the plunger valve to see if the
handle is pushed fully down to the "0/1"
position. not, grasp the handle at the top
and push down turning the handle in a
clockwise direction until the plastic
protruding notch anchors in the "0/1"
position. This will prevent water from
flowing out during filling of the pool (see
drawings 4.1 & 4.2).
The strainer grid prevents large objects from jamming and/or damaging the
filter pump. The plunger valve assembly prevents water from flowing into the
filter pump while the filter cartridge is being placed or cleaned. If your pool
has inflatable top ring, install the strainer, nozzle and plunger valve before
inflating the pool liner top ring. The parts numbers here onward, refer to the
parts depicted in the Parts List section of this manual. To install, do the
following:

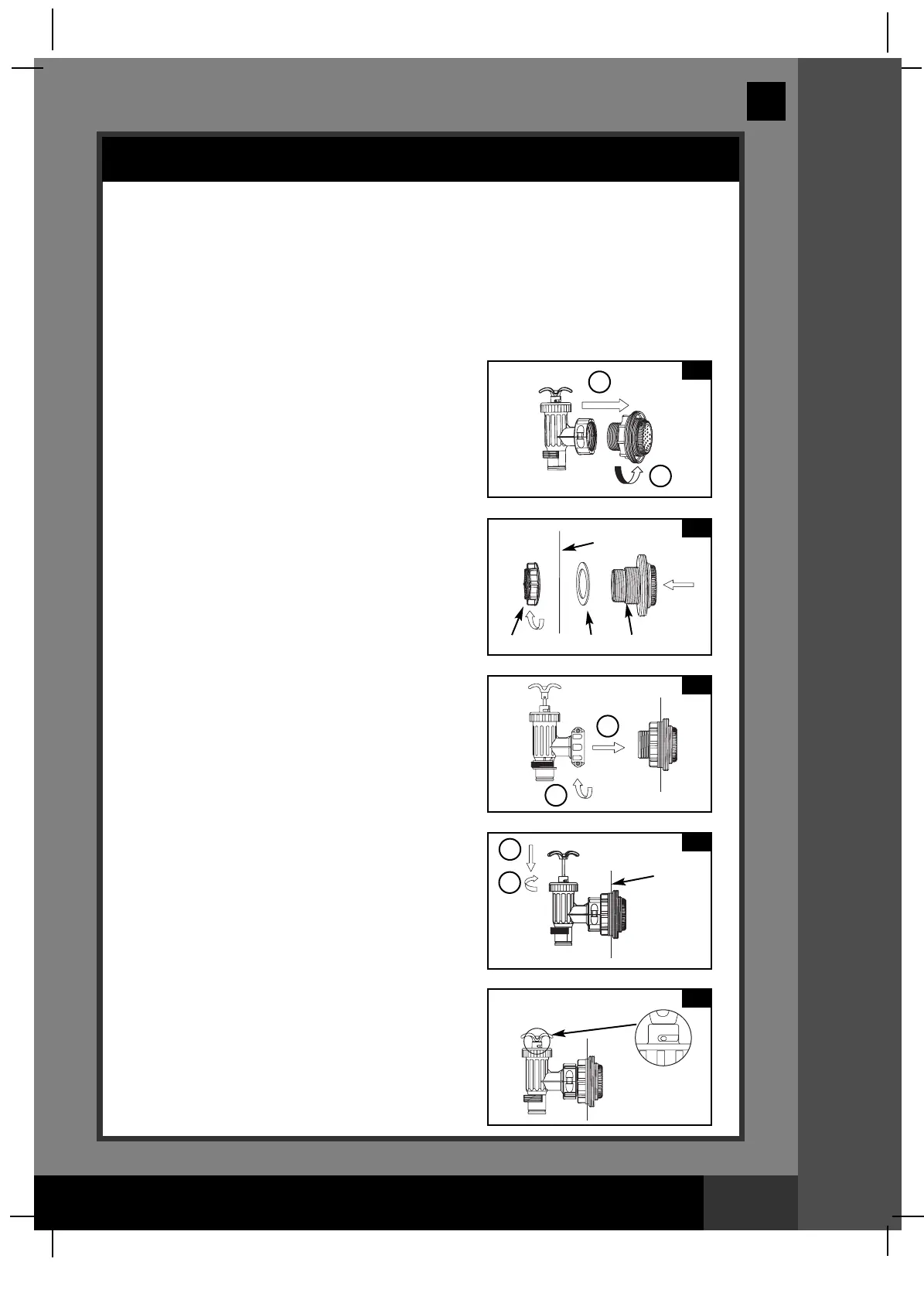

1
2
3
4.1
4.2
13 14
INSIDE
LINER WALL
INSIDE
LINER
WALL
12
2
1
1
2
1
2
POOL OUTLET - STRAINER & PLUNGER VALVE SETUP
