PPAARRTTSS RREEFFEERREENNCCEE
PARTS REFERENCE

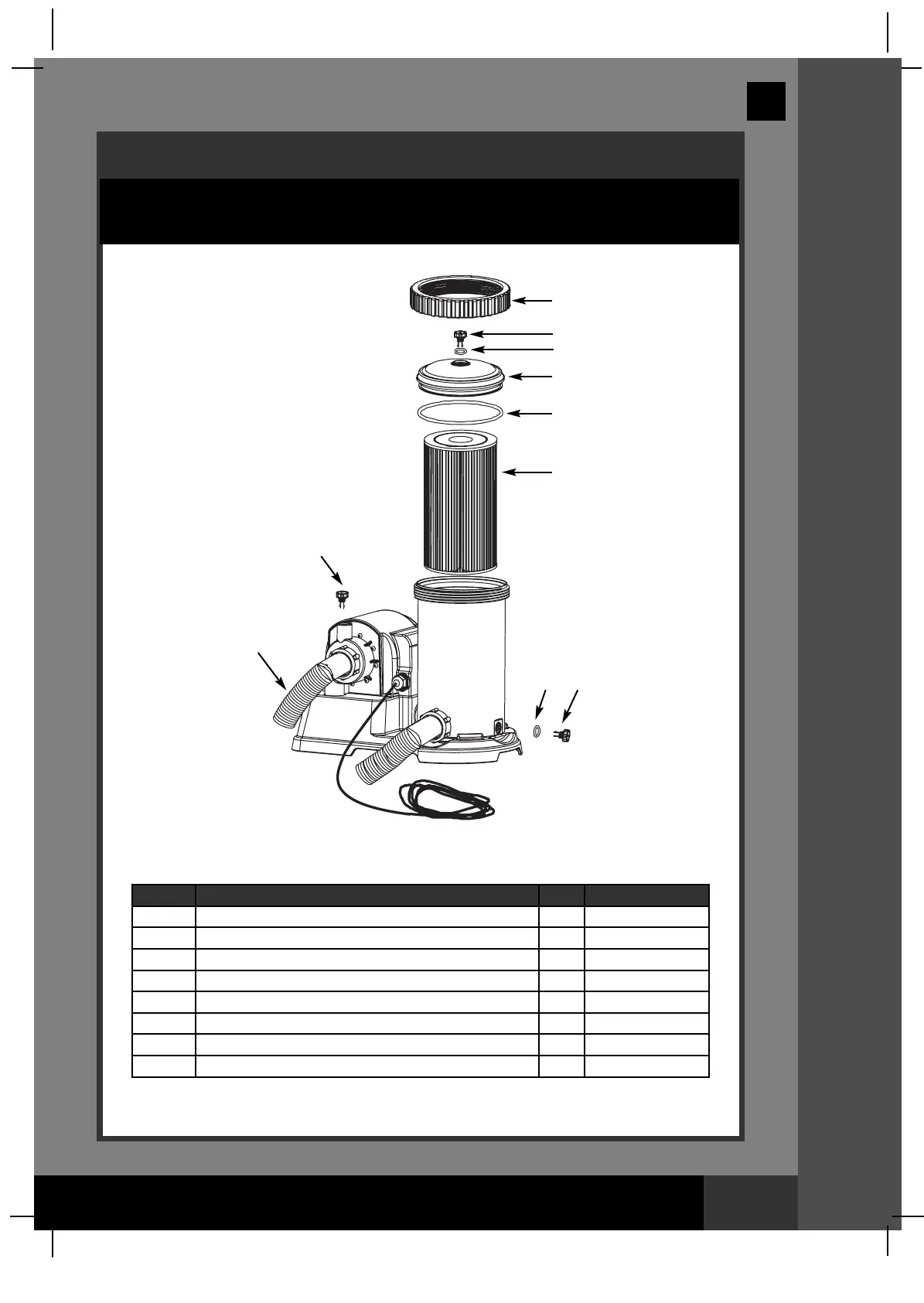

Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
1
2
3
4
5
6
7
8
REF. NO.
DESCRIPTION
QTY.
SPARE PART NO.
1
2
2
1
1
1
1
2
THREADED FILTER HOUSING COLLAR
AIR RELEASE VALVE/SEDIMENT RELEASE VALVE
VALVE O-RING
FILTER HOUSING COVER
FILTER HOUSING O-RING
FILTER CARTRIDGE (59905)
AIR RELEASE VALVE B (WITH O-RING)
PUMP HOSE WITH NUTS
10491
10460
10264
10490
10492
10725
10494
2
3
4
5
1
6
3
7
2
8
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to
scale.
To Next Page
