IVIEW NX-4 User Manual

NX-SERIES USER MANUAL
iView Technology
http://www.iviewtech.com
5

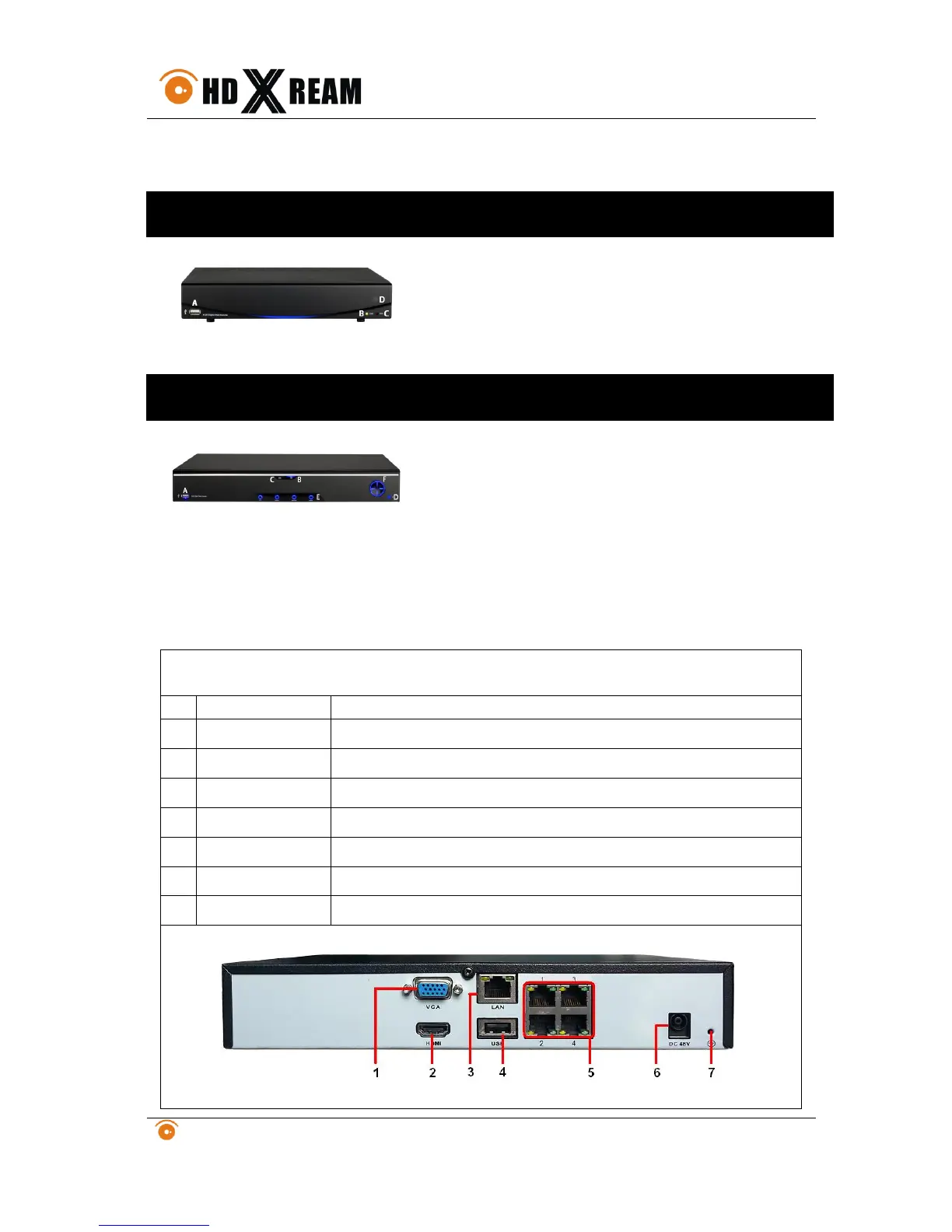

1.2. NVR CONTROL PANEL
NX-4/8 NVR FRONT PANEL
A
USB:
External USB Port for connecting USB Flash Drive
B
POWER:
Power ON Indicator
C
HDD:
Hard Disk Drive ( HDD ) ON Indicator
D
IR RECR:
Remote Controller Infrad Red ( IR ) Receiver Port
NX-2416 NVR FRONT PANEL
A
USB:
External USB Port for connecting USB Flash Drive
B
POWER:
Power ON Indicator
C
HDD:
Hard Disk Drive ( HDD ) ON Indicator
D
IR RECR:
Remote Controller Infrad Red ( IR ) Receiver Port
E
FUNC:
PLAY / DISPLAY / MENU / SELECT Button
F
NAV:
UP / DOWN / LEFT / RIGHT Navigation Button
1.3. NVR BACK PANEL
MODEL: NX-4E, NX-8E
No
Item
Description
1
VGA OUTPUT
DB9 connector for VGA output. Display local video output and menu.
2
HDMI OUTPUT
HDMI output, Display local video/Audio output and menu.
3
LAN interface
Connector for LAN (Local Area Network).
4
USB interface
Connector for USB device.
5
LAN interface
4 ports LAN interface for IPCam connections
6
DC POWER IN
12V DC power input for non-PoE or 48V for PoE
7
Ground
Ground
