Information from the heat pump
6 720 643 415 (2010/03)
12
8 Information from the heat pump
The heat pump provides information about
temperatures, operating modes, possible alarms, etc.

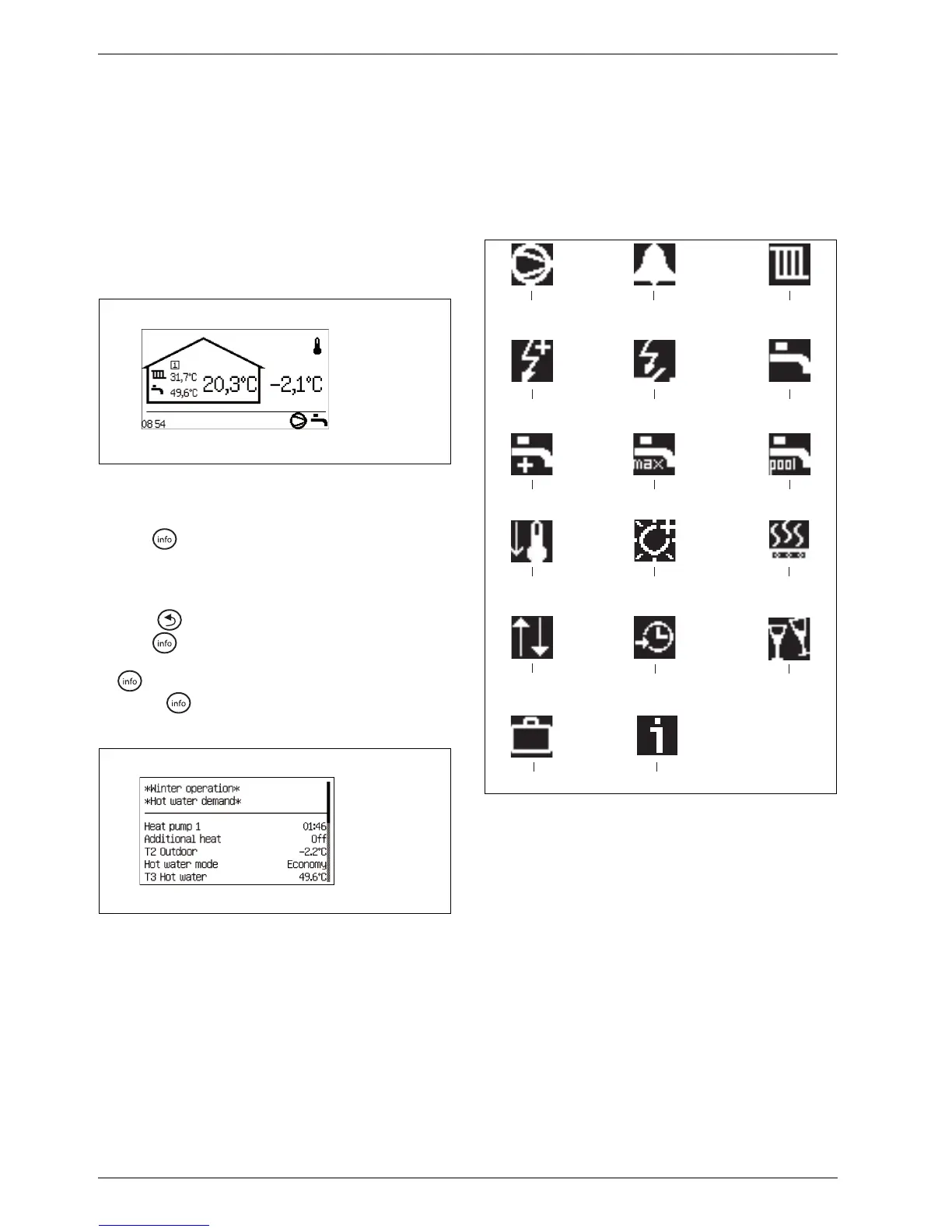

8.1 Operating information
The Initial menu shows different temperatures and times
of day. Different operating symbols show the functions
for which there are needs or which are in operation.
Fig. 17
8.2 Info button
B Press in the Initial menu.
Detailed information about temperatures, operating
mode, etc., is displayed.
B Turn the dial to see all the information.
B Press to return to the initial menu.
B Press in a menu display.
The detailed information is displayed for as long as
is pressed.
B Release .
The menu display is displayed.
Fig. 18
8.3 Operating symbols
Symbols for different functions and components for
which there is a need or which are in operation are
displayed in the bottom right corner of the Initial menu.
Fig. 19 Operating symbols
1 Compressor
2 Alarm (compressor, additional heat)
3 Heating
4 Electric add. heat
5 Energy supply cut-off
6 Hot water
7 Extra hot water
8 Hot water peak
9 Pool (option)
10 Cooling (option)
11 Sun (option)
12 Screed drying
13 External controls
14 Program/Time control
15 Party mode
16 Holiday
17 Information log
6 720 614 789-01.1I
6 720 643 415-12.1I
1 2 3
4 5 6
7 8 9
10 11
6 720 641 883-15.1I
1514
16
13
12
17
