4.5 GAS POWER MODULE CONTROLS ___________________________________________
M. Engine Switch – The engine switch enables and
disables the engine ignition system. The engine
switch must be in the ON position for the engine to
run. Turning the engine switch to the OFF position
stops the engine.
N. Choke Lever - The choke lever opens and closes
the choke valve in the carburetor. The CLOSED
position enriches the fuel mixture for starting a cold
engine. The OPEN position provides the correct fuel
mixture for operation after starting, and for restarting
a warm engine.
P. Fuel Valve Lever - The fuel valve opens and closes
the connection between the fuel tank and the
carburetor. The fuel valve lever must be in the ON
position for the engine to run. When the engine is
not in use, leave the fuel valve lever in the OFF
position to prevent carburetor flooding, and to
reduce the possibility of fuel leakage.

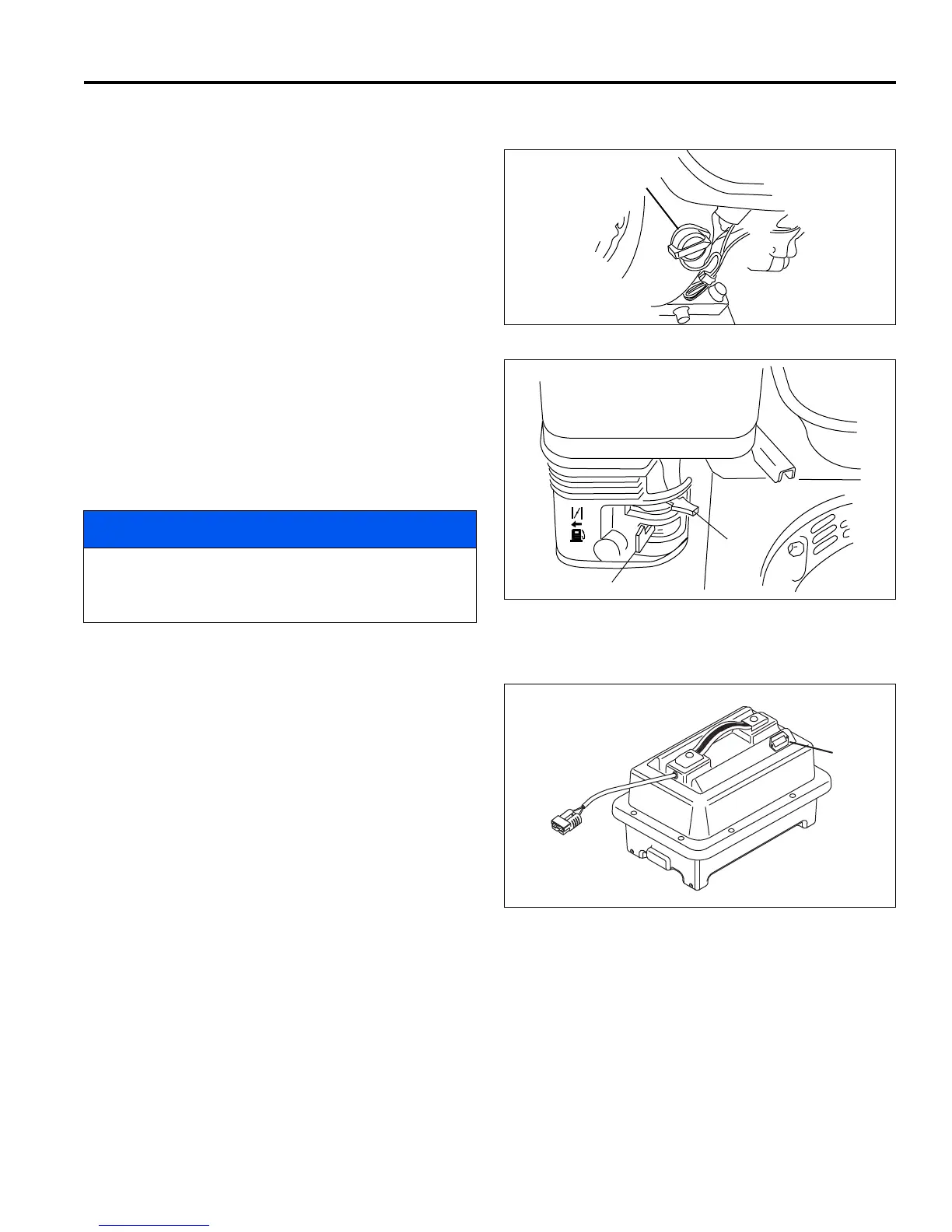

Figure 4D
Figure 4E
4.6 BATTERY POWER MODULE CONTROLS ______________________________________
R. Battery Monitor - Located on the removable battery
pack displays battery charge level.
Figure 4F
NOTICE
Before tipping mower back for adjustments, the fuel
lever must be moved to the OFF position to prevent
fuel from leaking into the crankcase.
