Jacobsen G-Plex III Safety And Operators Manual

GB-13
GB
JACOBSEN G-PLEX III Series: DN & DP
SAFETY AND OPERATORS MANUAL

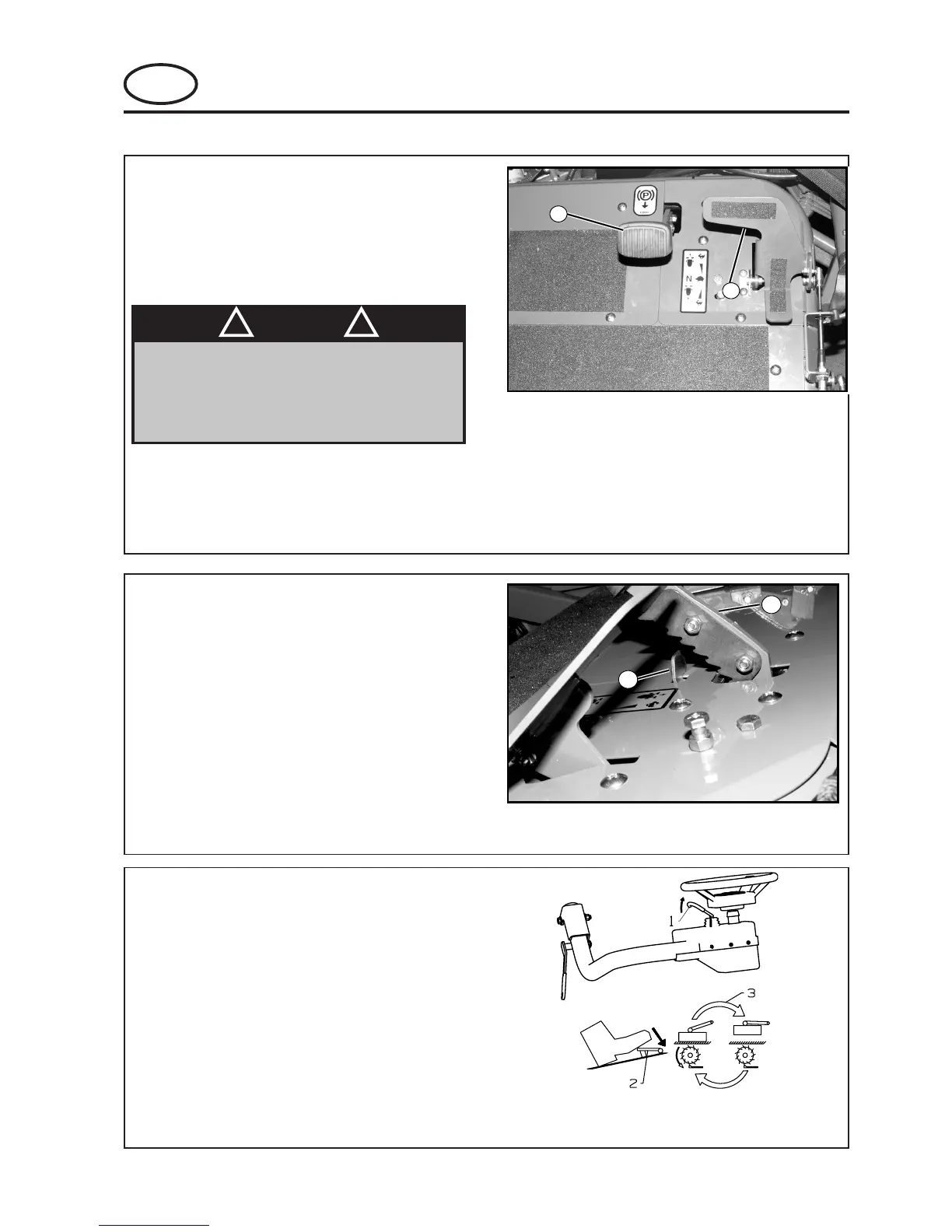

6 CONTROLS
DO NOT attempt to force the direction control
pedal to the neutral (stop) position or to
change directions before coming to a
complete stop. Abrupt stops or changes in
direction may cause injury.
WARNING
! !
6.2 CONTROL PEDALS
The Direction/Speed Pedal controls speed and
direction. Depress front of pedal to go forward,
depress back of pedal to go backward. Increased
movement of the pedal will increase speed. To slow
and stop the unit, release the pedal completely.
Proper braking is provided by hydrostatic pressure. If
more braking is required, press on the brake pedal.
1
2
1. Direction/Speed Pedal
2. Brake Pedal
NOTE
To reduce fatigue during normal forward operation,
the operator’s heel should rest on the floorboard
next to the pedal (not on the lower part of the
pedal).
6.3 PARKING BRAKE PEDAL
The Parking Brake can be engaged by depressing
the brake pedal until the unit is at a complete stop.
Once the unit is stoped, push the parking brake
latch foward to hold the brake pedal. Disengage the
parking brake by depressing and releasing the brake
pedal.
1. Brake Pedal
2. Park Brake Latch
1
2
6.4 PADDLE/FOOTSWITCH MOW/LIFT
The Mow/Lift Paddle/Footswitch lowers and raises
the cutting heads.
To Lower the Heads: Depress the footswitch or
operate the paddle. If reel enable switch is on, reel
rotation starts when the heads are lowered.
To Raise the Heads: Depress the footswitch or
operate the paddle. Reel rotation stops when the
heads are raised.
1. Paddle Control (Mow/Raise)
2. Footswitch Control (Mow/Raise)
3. Illustration of Paddle/Footswitch Operati
