CONTROLS 3
9

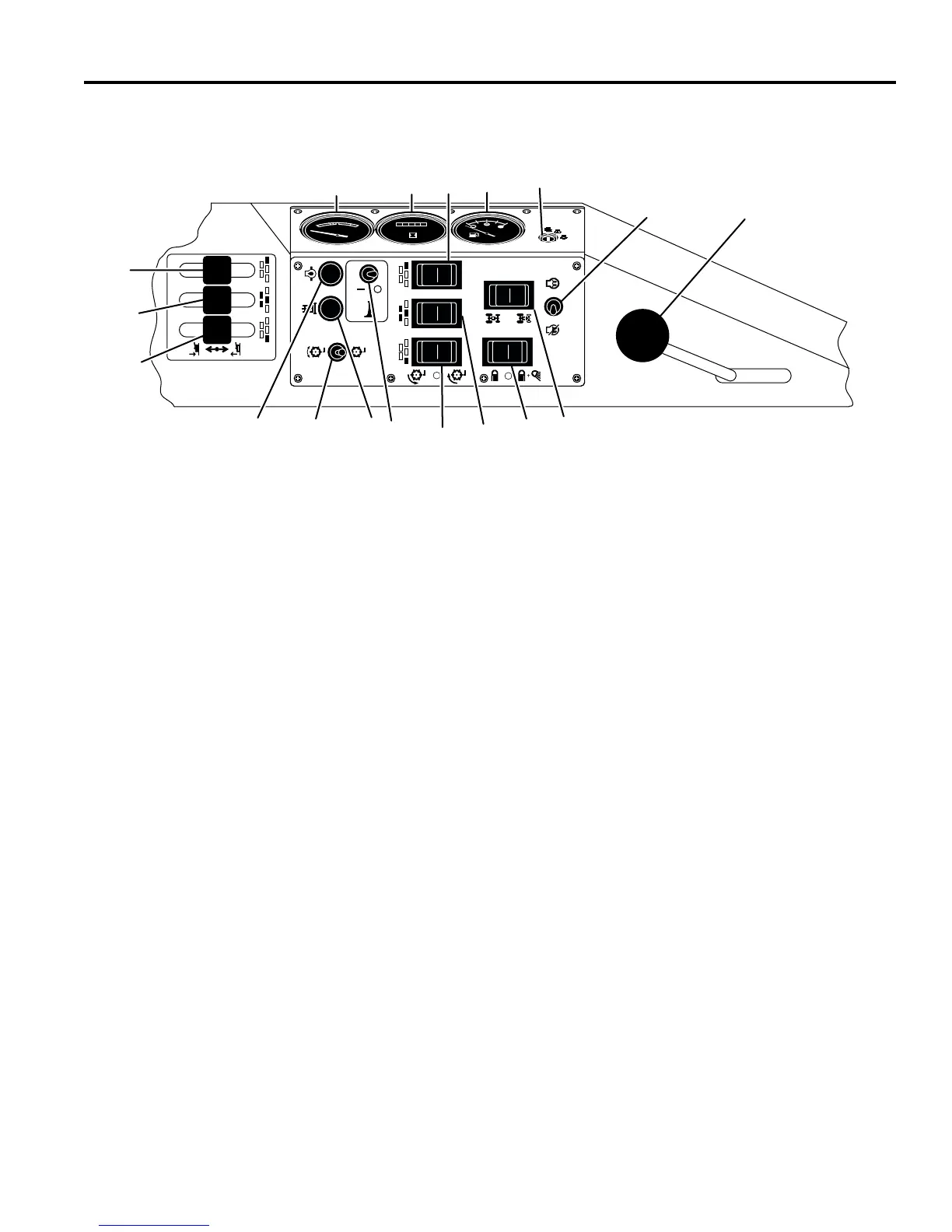

3.5 CONTROL PANEL _________________________________________________________
L. Reel Levers
The reel levers are used to raise and lower the reels
and operates in either automatic or manual mode.
Press levers forward to lower reels, pull levers back to
raise reels. Lever L
1
controls the left wing reel, Lever L
2
controls the front and center reels, and lever L
3
controls
the right Wing reel.
Manual Mode - Set main reel switch (N) in its OFF
position and/or disengage center reels switch (P) the
reels will raise and lower as pressure is applied to the
control levers.
Automatic Mode - Set main reel switch (N) to
ENGAGED position and center reel switch (P) to
FORWARD rotation. When lifting or lowering the reels,
press center and desired wing mower levers to lift or
lower position and release. Tractor will automatically
hold levers in position until reels are fully lowered or
raised to crosscut position. Center lever L
2
must always
be used to activate this feature.
M. Throttle
Controls engine speed. Run machine at full throttle
during normal operation.
N. Main Reel Switch
Used to enable or disable reel switches (O ~ Q).Also
used to set lift levers (L) in manual or automatic mode.
Lift toggle lever then push forward to engage. Pull back
to disengage. Set main reel switch in disengaged
position to start engine.
O. Left Wing Reel Switch
Used to engage left wing reel in either the forward or
reverse direction. Depress front of switch for forward
rotation. Depress rear of switch for reverse rotation.
Place switch in center position to disengage reel.
P. Center Reel Switch
Used to engage two front reels and center reel in either
the forward or reverse direction. Depress front of switch
for forward rotation. Depress rear of switch for reverse
rotation. Place switch in center position to disengage
reels. Center reel switch must set for forward rotation for
automatic mode of lift levers (L) to function.
Q. Right Wing Reel Switch
Used to engage right wing reel in either the forward or
reverse direction. Depress front of switch for forward
rotation. Depress rear of switch for reverse rotation.
Place switch in center position to disengage left wing
reel.
R. Light Switch (Option)
Controls operation of work and head lights. Depress
front of switch for headlights only. Depress rear of
switch for work lights and headlights. Set switch to
middle position to shut off lights.
S. 2WD / 4WD Switch (67828 Only)
Sets tractor in either 2WD or 4WD mode. Depress front
of switch for 4WD. Depress rear of switch for 2WD
T. Glow Plug Switch
Push switch towards ignition switch (U) to energize glow
plugs.
GreenSentry
TM
10
12
14
16
L
1
M
N
O
P
Q
RS
T
U
V
W
X
Y
Z
L
2
L
3
AA
