MAINTENANCE & LUBRICATION CHARTS 6
29
6.1 GENERAL ________________________________________________________________
1. Always clean the grease fitting before and after
lubricating.
2. Lubricate with grease that meets or exceeds NLGI
Grade 2 LB specifications. Apply grease with a
manual grease gun and fill slowly until grease begins
to seep out. Do not use compressed air guns.
3. Periodically apply a small amount of lithium based
grease to the seat runners.
4. For smooth operation of all levers, pivot points, and
other friction points that are not shown on the
lubrication chart apply several drops of SAE 30 oil
every 40 hours or as required.
5. Grease fittings (A - F) every 50 hours and fittings (G -
K) every 100 hours.

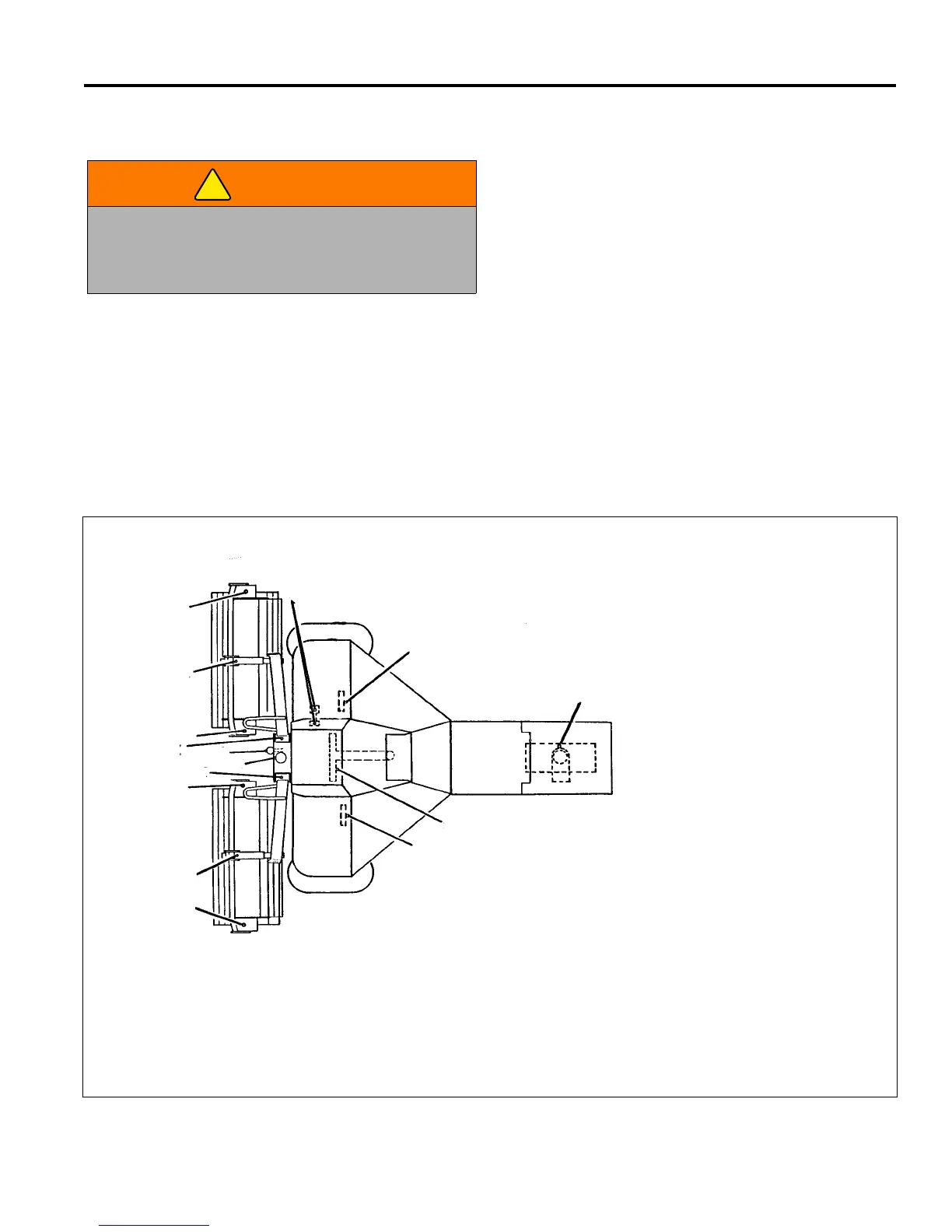

6.2 LUBRICATION CHART______________________________________________________
WARNING
Before you clean, adjust, or repair this equipment,
disengage all drives, lower implements to the ground,
engage parking brake, stop engine and remove key
from ignition switch to prevent injuries
A. Mower Pivot (3 Fittings)
B. Front Lift Arms (2 Fittings)
C. Crank Hub
D. Hydraulic Cylinder
E. Center Lift Arm
F. Control Pedal Pivot (2 Fittings)
G. Steering Yoke
H. Drive Shaft Bearings (2 Fittings)
J. Reel Bearings (6 Fittings)
K. Rollers (As Required)
A
B
C
D
E
F
G
H
J
J
J
J
A
B
F
