2 SPECIFICATIONS
6
2.1 PRODUCT IDENTIFICATION_________________________________________________
67069.............................. Tri-King Mower, 3-WD, 17.7 hp
diesel engine with ROPS. Without
front lift arms or mowers.

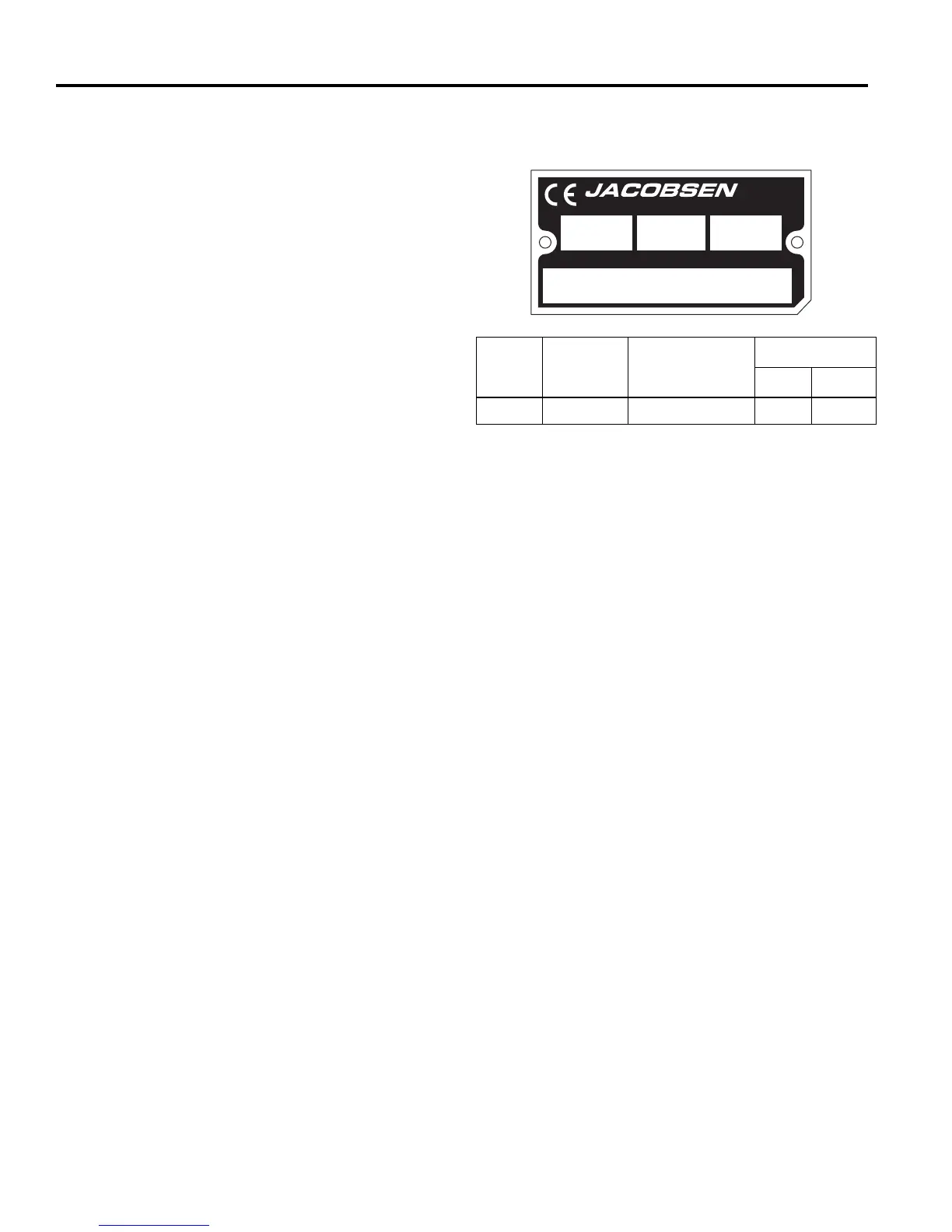

Serial Number ................ An identification plate, like the one
shown, listing the serial number, is
attached to the frame of the
mower and is located to the
operator’s left just behind the front
wheel motor. Always provide the
serial number of the unit when
ordering replacement parts or
requesting service information.
2.2 ENGINE__________________________________________________________________
Make ............................... Kubota
Model .............................. D722-E3B
Horsepower..................... 17.7 hp (13.2 kW) @ 3200 rpm
Note: Actual sustained horsepower will likely be lower
than listed in specifications due to operating limitations
and environmental factors
Displacement .................. 43.88 cu. in. (719 cc)
Torque ............................. 26 ft. lbs. (35 Nm) @ 2600 rpm
Fuel:
Type .......................... No. 2 Low or Ultra-Low Sulfur
Diesel
Rating ....................... Min. Cetane rating 45
Capacity.................... 6.5 U.S. Gal. (24.6 liters)
Governor......................... Ball Type Governor
Low Idle ................... 1450 RPM
High Idle ................... 3400 RPM
Lubrication:
Capacity.................... 3.4 quarts (3.2 liter) with filter
Type .......................... SAE 20W, SAE 30W
API Classification ..... CD, CE
Air Filter .......................... Dry type with evacuator valve and
service indicator
Alternator ........................ 40 amp
2.3 CUTTING UNITS: __________________________________________________________
Reel ................................ 3 Reels, 26 in. (660 mm) wide or,
3 Reels, 30 in. (762 mm) wide.
Reel Diameter................. 7 in. (178 mm)
Bearings.......................... Self adjusting tapered roller
bearings
Blade Options ................. 7 blades
Cutting Width:
26 in. Reels............... 72 in. (1828 mm)
30 in. Reels............... 84 in. (2134 mm)
Overall Width:
26 in. Reels............... 78.5 in. (1994 mm)
30 in. Reels............... 90.5 in. (2298 mm)
Cutting Frequency:
7 Blade ..................... 0.151 in./mph (3.8 mm/kph)
2.4 MOWER _________________________________________________________________
Tires:
Front ......................... 20 x 10 - 10 tubeless
Rear ......................... 20 x 10 - 8 tubeless
Pressure:
Front.......................... 10-12 psi (0.69-0.82 BAR)
Rear .......................... 8-10 psi (0.55-0.69 BAR)
Battery:
Type .......................... 12 Volt Lead/Acid
Group........................ 22 NF
Parking Brake ................. Mechanical front wheel disk
Hand lever actuated
Speed:
Mow ......................... 0 - 5 mph (8 kph)
Transport ................. 0 - 8.5 mph (13.7 kph)
Reverse .................... 0 - 2.3 mph (3.7 kph)
Hydraulic System:
Capacity.......................... 5.5 U.S. gal. (20.8 liters) System
Fluid Type ....................... GreensCare 68 Biodegradable
Charge Filter................... 10 micron
Return Line Filter............ 10 micron
Steering ......................... Hydrostatic power steering
Product
EEC Sound
Power
Sound Pressure
Level
Operator Ear
Vibration M/S
2
Arms Body
67069 99 dba 86 dba 3.78 0.016
11524 WILMAR BLVD,
CHARLOTTE, NC 28273
®
kg kW
1 800 848 1636 (US)
PRODUCT OF U.S.A.
A Textron Company
619 13.2 XXXX
67069001651
